Trumpai apie prekę

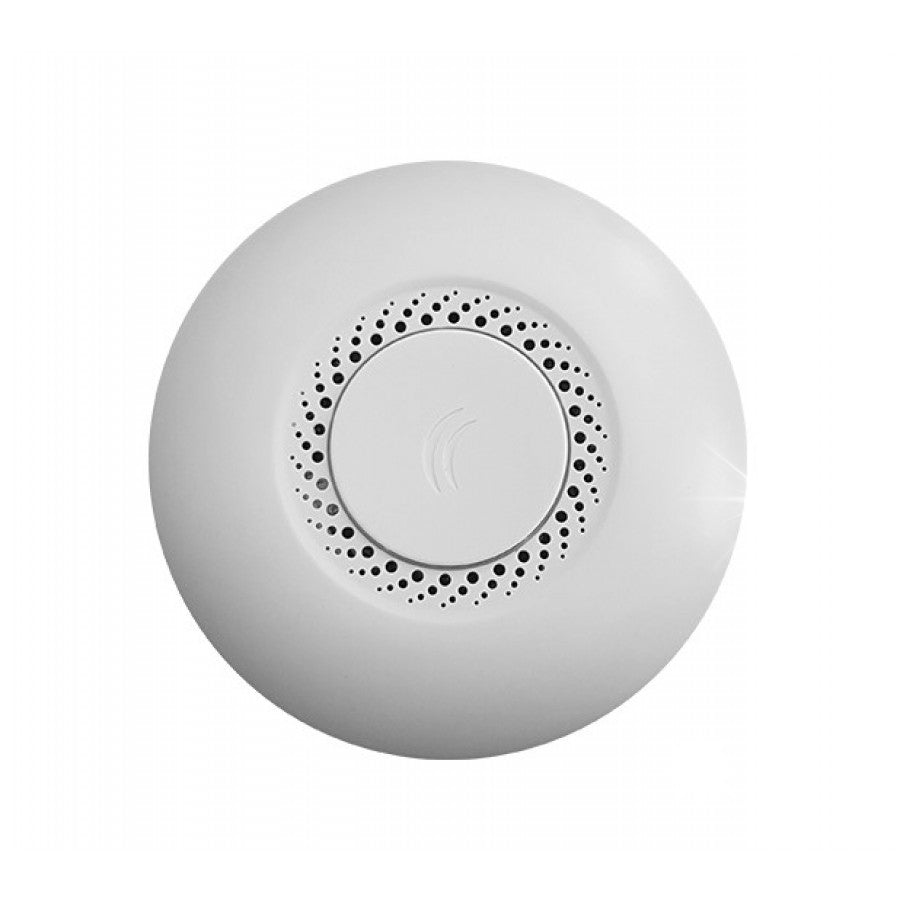

Prekė: Belaidis maršrutizatorius MIKROTIK ROUTERBOARD RBCAP2ND. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.
- Gamintojas: MikroTik
- Modelis: 601300948
The cAP-2nD platform is the first “ceiling” Access Point MIMO 2x2 from MikroTik.
Discreet appearance makes this device applicable in public places – hospitals, hotels, airports, shops, etc.
cAP 2nD operates in 802.11b/g/n standards and is powered by passive or active (802.3af/at) PoE.
It is an ideal application for the CAPsMAN controller, which allows you to centrally manage all access points from one place.
Unlike traditional software controllers, which require a separate PC/MAC to work, CAPsMAN works on any RouterBOARD device, so no separate machine with a controller is required.
Everything you need for assembly is included with the unit – ceiling/wall mount, PoE adapter, power supply, and even screws and mounting pins.
Main features of the device:
- Wall or ceiling mounting
- Simple, unobtrusive appearance (smoke detector appearance)
- Operation on 2,4GHz frequency
- PoE – 11-57V – passive or 802.3af/at
- CAPsMAN controller working on any RouterBOARD device
- RouterOS software with level 4 license
Technical data:
- Processor – QCA9533 650 MHz
- RAM - 64MB RAM
- Drive - NAND memory for the operating system (permanently built into the board)
- LAN port – 1 x 10/100Mbit/s Fast Ethernet port with Auto-MDI/X support
- MiniPCI Slots - None
- Radio module – one, built-in – IEEE 802.11b/g/n up to 300Mbit/s (2x2)
- Radio module sensitivity: 802.11g: -96dBm @ 1Mbit/s to -74dBm @ 54Mbit/s; 802.11n: -93Bm @ MCS0 to -70dBm @ MCS7
- Radio module power: 802.11g: 22dBm @ 1Mbps to 18dBm @ 54Mbps; 802.11n: 20dBm @ MCS0 to 16dBm @ MCS7
- Built-in antennas: yes, 2dBi gain
- USB port – none
- Additional functionalities - reset button
- Power supply – PoE 11-57V DC (24V DC 0.38A power supply included), 802.3af/at or passive PoE
- Power consumption – 4W (max.)
- Dimensions - width 185mm, height 31mm
- Operating temperature – from -40oC to +70oC

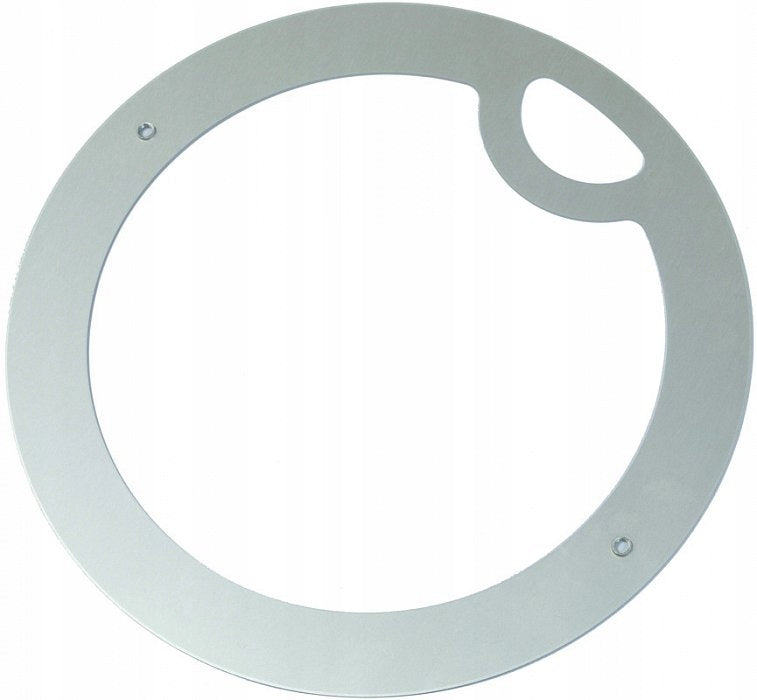

The device comes with a 24V DC 0.38A power supply, PoE adapter, wall/ceiling mounting bracket, screws and mounting pins.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer | MikroTik |
| Parametry | Internal modem | no modem |
| Parametry | LAN port operating standard | 10/100 Mbps |
| Parametry | EAN (GTIN) | 5907949107843 |
| Parametry | Manufacturer code | 601300948 |
| Parametry | Model | 601300948 |
| Parametry | The highest standard supported | 802.11n (Wi-Fi 4) |
| Parametry | Batteries included | no |
| Parametry | Mode of operation | Access Point,Repeater |
| Parametry | Wireless operation standard | 802.11n (Wi-Fi 4),802.11g,802.11b |
