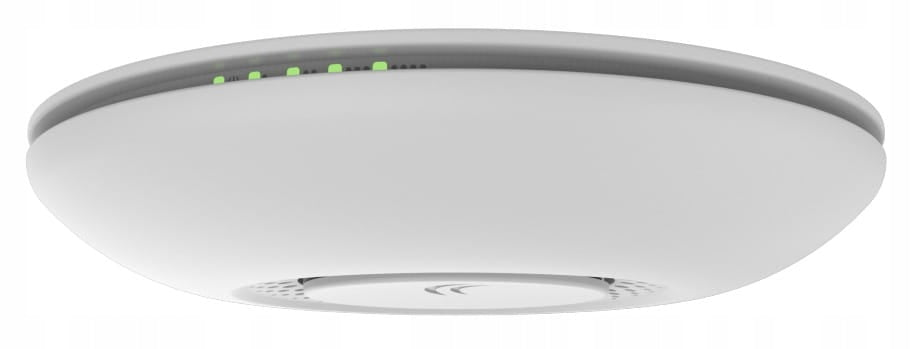

Belaidis maršrutizatorius MIKROTIK ROUTERBOARD cAP (RBcAP2nD)

Trumpai apie prekę

Prekė: Belaidis maršrutizatorius MIKROTIK ROUTERBOARD cAP (RBcAP2nD). Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: MikroTik
• Modelis: cAP-2nD
• Plotis: 185 mm
• Aukštis: 31 mm

MIKROTIK ROUTERBOARD cAP (RBcAP2nD)

Mikrotik

MikroTik ROUTERBOARD

RBCAP2ND 12170

The most important features

• 2,4 GHz band
• 2 built-in antennas (2 dBi gain)
• MIMO 2x2 - bandwidth up to 300 Mbps
• Cooperation with CAPsMAN system - central management of multiple access points
• Maximum transmitting power 22 dBm
• PoE power supply: passive or 802.3af/at (voltage 11 - 56 V)
• For ceiling mounting, brackets are included
• RouterOS, Level 4 License (WISP AP)

Product Description

The cAP 2nD router is an access point operating in the 2,4 GHz band. This is a new version of the popular cAP 2n device, has a more efficient processor, two built-in antennas (2 dBi) and uses MIMO 2x2, so it can reach 300 Mb/s. It is characterized by a small size, it is designed for ceiling mounting. It blends in very well with the surroundings, perfect for hotels, airports, shopping centers, large companies, etc. It works with the MikroTik CAPsMAN management system that allows for centralized control of connected access points. This functionality enables you to create a network composed of multiple cAP devices and simultaneously cover vast areas.

The maximum transmitting power is 22 dBm, the offered product can be powered by passive PoE or 802.3at/af, input voltage range: 11 - 56 V. The set includes a suitable power supply and PoE injector. The device has a RouterOS system with a Level 4 license (WISP AP). The set includes a ceiling mount bracket.

Specification

ProcessorAtheros QCA9533Clocking650 MHzRAM64 MB DDRNetwork interfaceOne fast Ethernet port,10/100 Mb/sAutomatic patching MDI/MDIXWorking frequency2,4 GHzWireless standards802.11 b/g/nMIMO2x2Antennas2 built-in antennas, gain 2 dBiPower supplyPoE:passive or 802.3at/af11 - 56 VMaximum power consumption4 MeasurementsDiameter 138 mmHeight: 31 mmAdmissible operating temperatureFrom -20 to 70 degrees COperating systemRouterOSLicense WISP AP,level 4Contents of the setPower supply 24 V, 0.38 APoE injectorCeiling mount bracket

Frequency: 2,4 GHz

CPU frequency: 650 MHz

Port: RJ45

Processor (chipset): Atheros

Dimensions in mm (sz. x H x D. ): 185x31 mm

Antenna gain: 2x2dBi

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	MikroTik
Parametry	Band	2,4 GHz
Parametry	Internal modem	no modem
Parametry	Number of LAN (RJ-45) ports	1
Parametry	LAN port operating standard	10/100 Mbps
Parametry	Antenna	built-in
Parametry	Width	185 mm
Parametry	Height	31 mm
Parametry	Depth	138 mm
Parametry	Product weight with unit packaging	0.5 kg
Parametry	EAN (GTIN)	4752224001191
Parametry	Manufacturer code	cAP-2nD
Parametry	Model	cAP-2nD
Parametry	The highest standard supported	802.11n (Wi-Fi 4)
Parametry	Certificates of conformity	CE
Parametry	Batteries included	no
Parametry	Mode of operation	Access Point,Repeater
Parametry	Wireless operation standard	802.11n (Wi-Fi 4),802.11g,802.11b
