Belaidis maršrutizatorius MIKROTIK ROUTERBOARD cAP LITE (RBcAPL-2nD)

Trumpai apie prekę

Prekė: Belaidis maršrutizatorius MIKROTIK ROUTERBOARD cAP LITE (RBcAPL-2nD). Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: MikroTik
• Modelis: RouterBOARD cAP Lite
• Plotis: 88 mm
• Aukštis: 20 mm

KEY INFORMATION

• Operation in the 2,4 GHz band
• Processor QCA9533 o clock speed 650 MHz and 64 MB RAM
• 1 fast Ethernet port
• Radio up to 22 dBm
• 2x2 MIMO technology
• Built-in antennas with 1,5 dBi gain
• Power supply via DC or PoE plug (passive or 802.3af/at),
• Supply voltage range 12 - 60 V DC
• RouterOS with Level 4 license

Product Description

cAP Lite is a small MikroTik access point operating in the 2.4 GHz band.

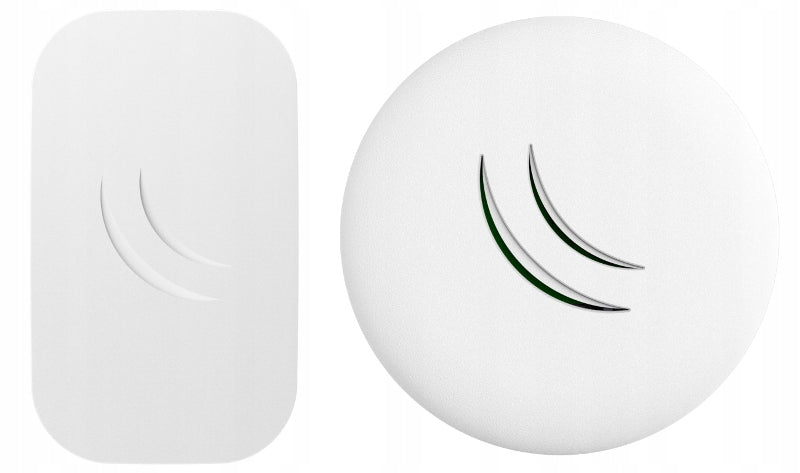

The set includes two housings - one oblong, adapted for wall mounting and the other round, for ceiling mounting.

In addition, MikroTik will provide design files, thanks to which you will be able to create your own housing on a 3D printer.

The device has a powerful QCA9533 processor with a clock speed of 650 MHz and 64 MB of RAM, so the performance does not differ from the cAP-2nD model. The built-in radio has a maximum transmitting power of 22 dBm and supports 2x2 MIMO technology. The antennas have a gain of 1,5 dBi.

The offered product can be powered by DC or PoE plug - passive or 802.3af/at. The input voltage range is 5 - 60 V DC. The device has a RouterOS system with a Level 4 license. The set includes a 24 V, 0,2 A power supply.

The device is perfect for hotels, airports, shopping malls, large companies, etc. places. It works with the MikroTik CAPsMAN management system that allows for centralized control of connected access points. This functionality allows you to create a network composed of multiple cAP devices and simultaneously cover vast areas.

Specification

• Processor: QCA9533
• Architecture: MIPSBE
• CPU clocking: 650 MHz
• Number of cores: 1
• RAM: 64 MB
• Network interface: 1 fast Ethernet port
• 10/100 Mb/s
• Radio: QCA9531
• Wireless properties: 2,4 GHz band
• Standards 802.11 b/g/n
• 2x2 MIMO
• Antenna: Two antennas with a gain of 1,5 dBi each
• Beam width: 360°
• PoE Input: Yes
• Input voltage range: 5 - 60 V
• (DC plug, passive PoE or 802.3af/at)
• Maximum power consumption: 4 W
• Admissible operating temperature: From -40 to 70°C
• Dimensions: Wall-mounted housing: 88x52x20 mm
• Ceiling housing: diameter 88 mm, depth 20 mm

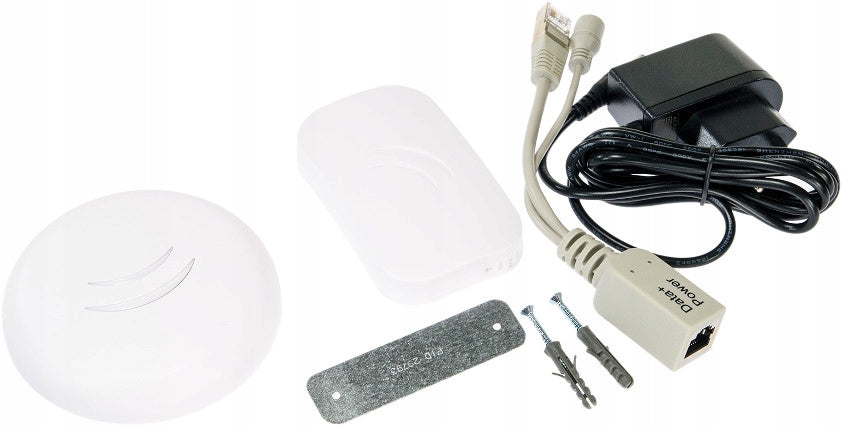

• Set Composition: Device
• Mounting kit K-49
• 24V/0,2A power supply
• PoE Injector
• Operating system: RouterOS
• License: Level 4
