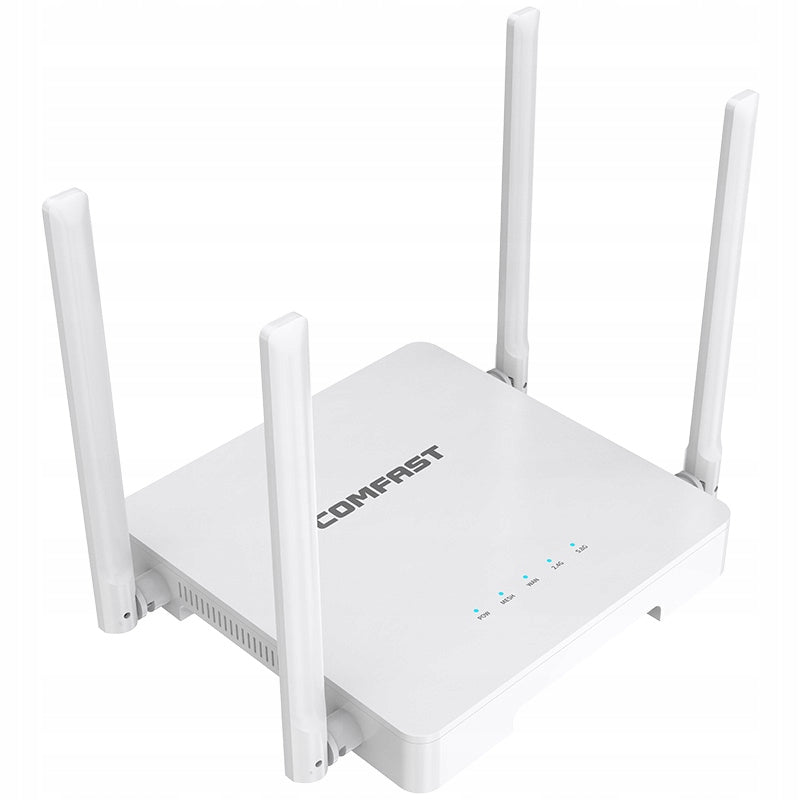

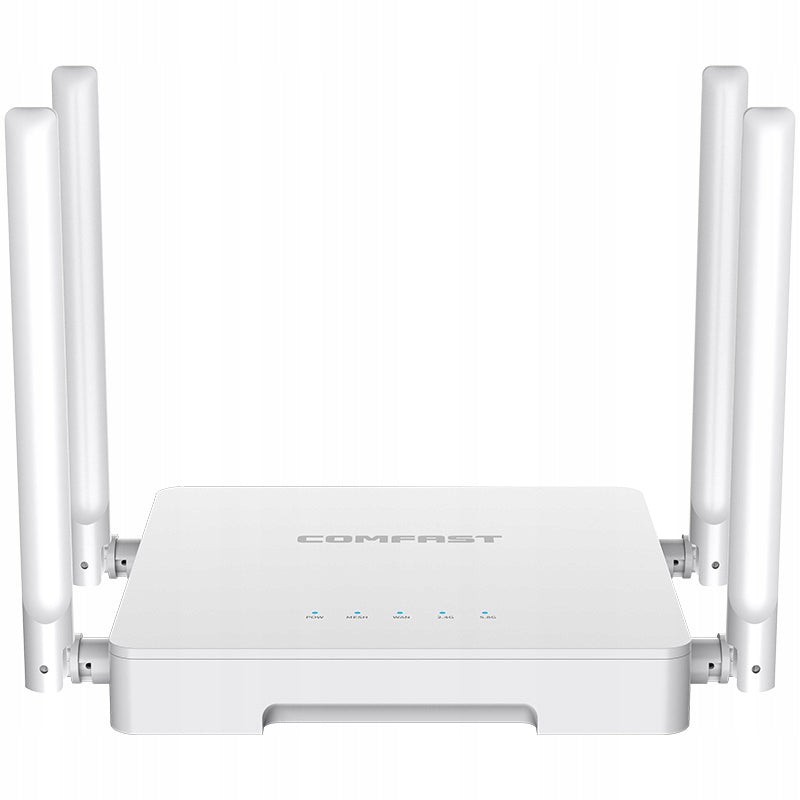

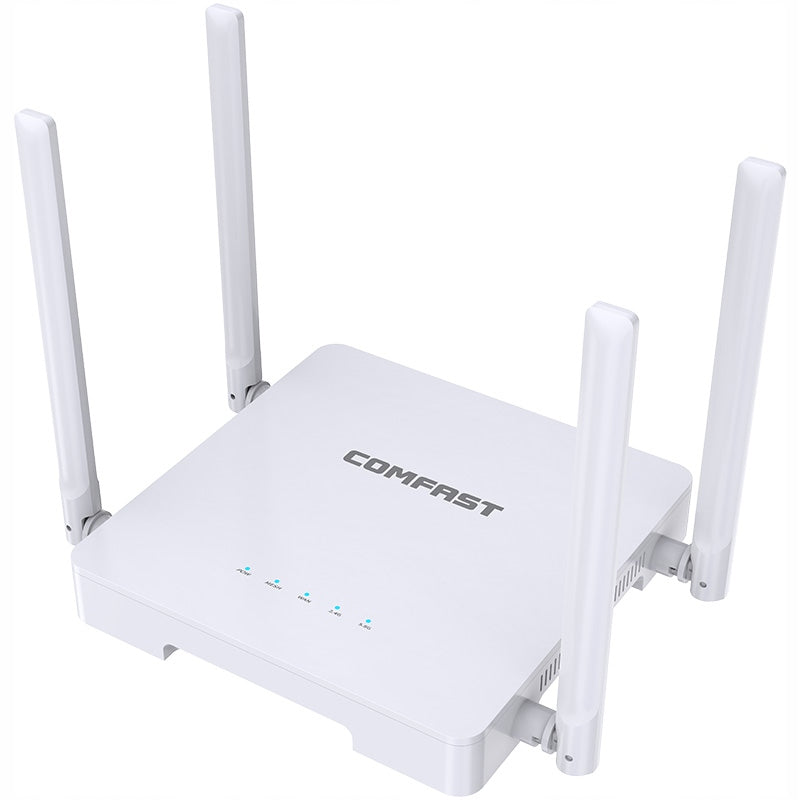

Belaidis maršrutizatorius COMFAST CF-WR630AX, WiFi 6, 3000 Mbps, tinklinis (mesh)

Trumpai apie prekę

Prekė: Belaidis maršrutizatorius COMFAST CF-WR630AX, WiFi 6, 3000 Mbps, tinklinis (mesh). Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: Comfast
• Modelis: CF-WR630AX

• PERFORMANCE POWER -WiFi6 standard - State-of-the-art wireless technology
• Triple chipset chip - Three independent processors for maximum performance
• AX3000 - Transmission speed up to 3000 Mbps
• MESH function in one click - Full WiFi coverage throughout your home in a simple way
• Signal indicator - Intuitive information about the operating status of the device
• 4 external antennas - Guarantee of strong and stable range
• Full Gigabit Ports - Support broadband over 1 Gbps
• Cooling system from the bottom - Effective ventilation for better performance

• MU-MIMO - Parallel multi-user support
• BSS Coloring - Reduction of signal interference
• IPv6 - Wider address space
• OFDMA - More efficient data transmission
• TWT (Target Wake Time) mechanism - Intelligent energy management
• WPA3 - Advanced network security

802.11ax uses an improved Long OFDM transmission mechanism and 2MHz narrowband transmission, which effectively reduces packet loss rate, improves signal reception sensitivity by end devices, and provides wider WiFi coverage.

802.11ax supports mechanisms such as:

• BSS color coding (network identification),
• Dynamic CCA threshold (automatic adjustment of signal detection sensitivity),
• Transmission power control (which effectively reduces the problem of co-channel interference in multi-user environments. )

Compared to WiFi5, it offers faster speed and higher bandwidth, meeting the needs of high-speed internet in multi-user scenarios and high bandwidth demand.

Higher Speed

With 1024QAM modulation, more lifts and 160MHz bandwidth technology, the maximum speed increases to 2976Mbps.

Larger Capacity

802.11ax uses OFDMA and DL/UL MU-MIMO technology, increasing network capacity by 4 times compared to 802.11ac. TWT technology enables the access point (AP) to harmoniously manage device activity (on and off), allowing it to support a large number of endpoint devices.

Model

• CF-WR630AX
• Wireless standard - IEEE 802.11a/b/g/n/ac/ax
• Memory - DDR 256MB; FLASH 128MB
• Frequency: 802.11b/g/n: 2.412GHz-2.472GHz, 802.11ax/ac/an/a: 5.180GHz-5.825GHz

Antennas and performance

Antennas: 4 × 5dBi

Transmission speed: 2.4GHz: 574Mbps; 5.8GHz: 2400Mbps

Interfaces

• 1 × RJ45 10/100/1000Mbps WAN port
• 4 × RJ45 10/100/1000Mbps LAN ports
• WPS/RESET button
• DC power port
• MESH button

Dimensions and power supply

• Product dimensions - 160 × 160 × 168 mm
• Power supply - DC 12V 1A
• Power consumption -12W (max. )

Indicators and Working Environment

LED - POWER, MESH, WAN, 2.4G, 5.8G

Working conditions

• Operating temperature: 0°C to 40°C
• Storage temperature: -40°C to 70°C
• Operating humidity: 10%~90% (non-condensing)
• Storage humidity: 5%~90% (non-condensing)

Specifications
