Belaidis LTE maršrutizatorius Mikrotik LtAP LR8 LTE6, RouterOS

Trumpai apie prekę

Prekė: Belaidis LTE maršrutizatorius Mikrotik LtAP LR8 LTE6, RouterOS. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: MikroTik
• Modelis: LtAP-2HnD&FG621-EA&LR8
• Plotis: 170 mm
• Aukštis: 162 mm

• LTE cat support. 6
• possibility of wireless WiFi network transmission in the 2,4 GHz band
• maximum theoretical WiFi bandwidth is 300 Mbps
• IEEE 802.11 b/g/n standards
• GPS modem
• LoRa 8 modem for IoT communication
• 1x gigabit Ethernet port
• 3x miniSIM slots
• enclosure adapted for use outside buildings
• routerOS level 4
• Support 3G, 4G (LTE)

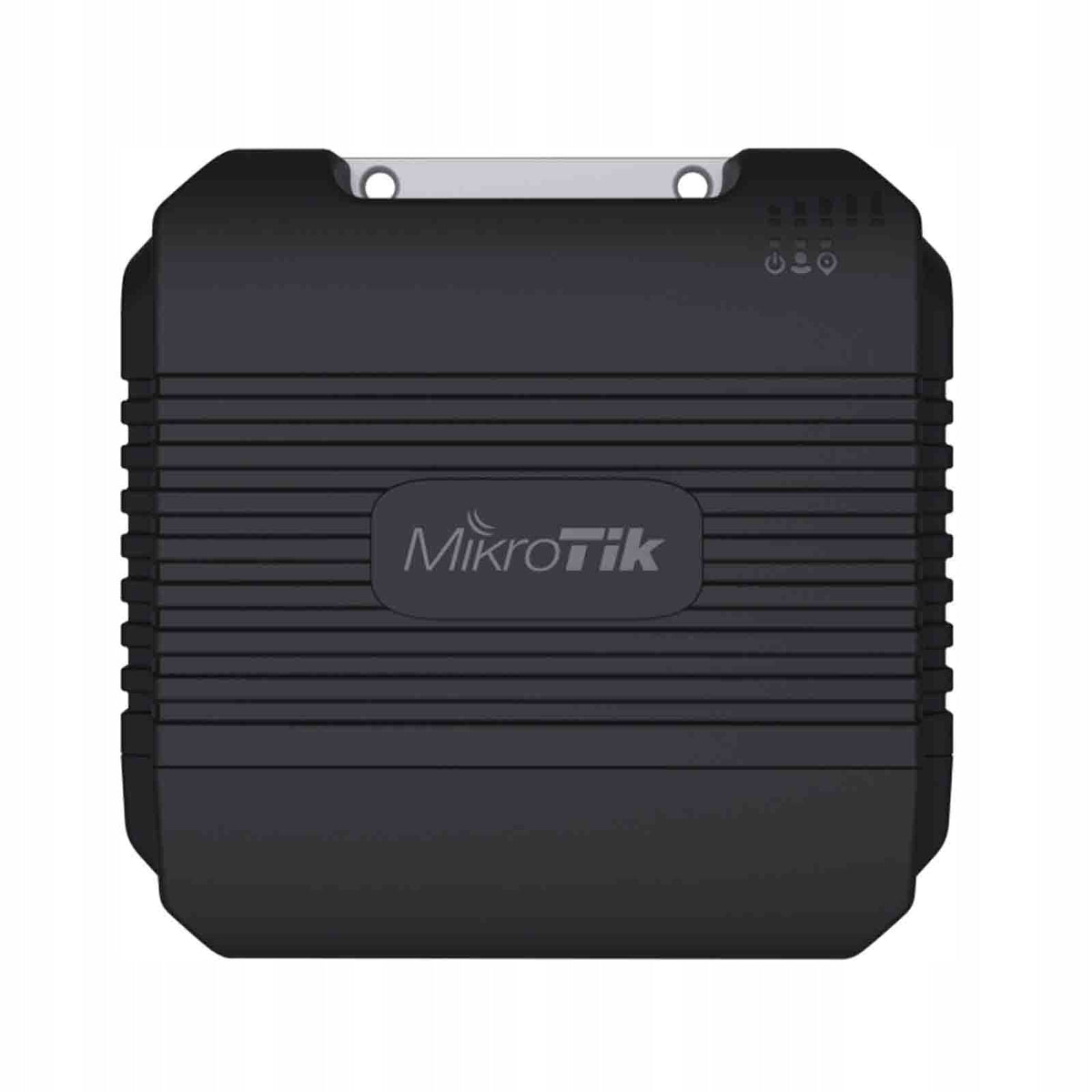

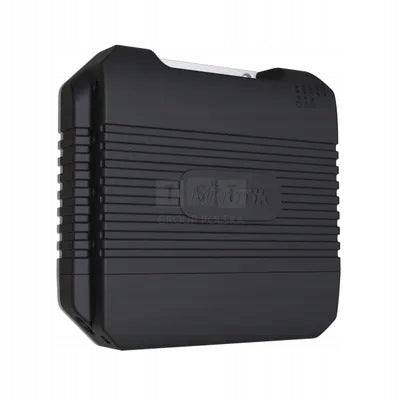

MikroTik LtAP LR8 LTE6 kit (LtAP-2HnD&FG621-EA&LR8) is a waterproof, weather-resistant wireless kit. It includes an access point (LtAP) operating in the 2.4 GHz band and supporting the 802.11b/g/n standard, along with an R11eL-FG621-EA card for 3G, 4G (LTE Cat. 6) connectivity and an R11E-LR8 LoRa card.

With a built-in GPS modem and an automotive power input, this device is ideal for logistics and can be installed in various vehicles, for example, for route tracking.

MikroTik LtAP LR8 LTE6 kit features a new CAT6 LTE modem that boosts mobile internet speeds while lowering the LtAP's price. The LTE6 modem also supports carrier aggregation, allowing the device to use multiple bands simultaneously. This results in better responsiveness in crowded network areas and improved performance in rural areas with weaker signals.

The LtAP LR8 LTE6 kit can broadcast WiFi in the 2.4 GHz band with a maximum theoretical throughput of 300 Mbps (2x2 MIMO, IEEE 802.11 b/g/n standards). The maximum theoretical LTE Cat. 6 connection speeds are 300 Mbps for downloads and 50 Mbps for uploads.

LTE Cat. 6 Supports Bands:

• 1, 3, 5, 7, 8, 20, 28, 38, 40, 41
• and supports carrier aggregation.

By connecting to mobile internet, this device gains access to data anywhere, further enhancing its capabilities in challenging environments.

• integrated LTE antenna with 4 dBi gain (with two u.fl connectors)
• USB 2.0 port
• one gigabit 10/100/1000Mbps Ethernet port
• RS232 serial port, which provides access to the console for debugging.
• three miniSIM card slots for switching between mobile operators
• integrated GNSS support (GPS, GLONASS, BeiDou, Galileo), making it an ideal device for use in cars, buses or trains to track their location in real time

The LoRa 8 mode serves as a gateway to the Lora network. This protocol is used for wireless communication with the Internet of Things (IoT) in mind. It uses low frequencies (863 - 870 MHz), thanks to which it allows transmission over very long distances. It is perfect for connecting various types of sensors that download data. The R11e-LR8 supports 8 different channels in the 868EU band, Listen Before Talk (LBT) and spectral scanning.

The device is equipped with a dual-core processor 880 MHz i 128 MB RAM to cope with heavy loads.

LtAP can be powered by passive PoE, DC socket or connector adapted to connect power from the car. It happens that users power the LtAP with a 20 000 mAh powerbank throughout the day. The input voltage range is 12 - 30 V DC. LtAP has a special waterproof housing fully adapted for use outside buildings, mounted with special screws (screws and pegs are included).

The LoRa 8 mode serves as a Gateway to the Lora network. This protocol is used for wireless communication with the Internet of Things (IoT) in mind.

It uses low frequencies (863 - 870 MHz), thanks to which it allows transmission over very long distances. It is perfect for connecting various types of sensors that download data.

R11e-LR8 supports:

• 8 different channels in the 868EU band
• Listen Before Talk (LBT)
• Spectral scanning

LtAP LR8 LTE6 kit (LtAP-2HnD&FG621-EA&LR8):

• Processor: MT7621AT
• CPU clocking: 880 MHz
• Number of processor cores: 2
• CPU architecture: MMIPS
• RAM: 128 MB
• Type of RAM: DDR3
• Embedded memory: 16 MB Flash
• Number of gigabit Ethernet ports (10/100/1000 Mbps): 1
• Number of miniPCIe slots: 2 (both occupied by modems)
• SIM Slots: 3
• USB port: 1 USB 2.0 Type-A port
• Radio card: AR9342
• Wi-Fi properties: 2,4 GHz band, IEEE 802.11 b/g/n protocols, 2x2 MIMO (dual-chain)
• Energy Gain: 2,5 dBi
• LoR band: 868 MHz
• LTE Modem: R11eL-FG621-EA
• TAC: 86335904
• LTE category: 6 (300 Mbps download, 50 Mbps upload)
• MIMO DL: 2x2
• MIMO UL: 1x1
• LTE FDD bands: 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz)
• LTE TDD band: 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz)
• Category 3G: R8 (42,2 Mbps download, 11,2 Mbps upload)
• 3G bands: 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
• Dimensions: 170 x 162 x 40 mm
• Operating system: RouterOS v7, Level 4 license
• Admissible operating temperature: From -40 to 70°C
• Degree of protection: IP54
• Power Supply:
• Number of DC inputs: 3 (PoE, DC socket, automotive connector)
• PoE input voltage: 12 - 30 V
• Maximum current at minimum voltage (PoE): 1,48 A
• Maximum at maximum voltage (PoE): 0,59 A
• Input voltage automotive connector: 12 - 27 V
• Maximum current at minimum voltage (automotive): 1,31 A
• Maximum current at maximum voltage (automotive): 0,59 A
• Nominal power supply voltage: 24 V
• Nominal power supply current: 1,2 A
• Type of PoE: Passive
• Maximum power consumption of the device itself: 12 W
• Maximum power consumption: 24 W

R11e-LR8:

• Interface: miniPCIe
• Supported classes: A and C
• Frequency: 863 - 870 MHz (EU863-870, RU864-870, IN865-867)
• RF transmitting power: 20 dBm
• Reception sensitivity: Max. -137 dB at SF12
• Range: Up to 15 km outside the urban area and up to 2 km in the urban area (using a 6,5 dBi antenna)
• Admissible operating temperature: From -40 to 70°C
• Maximum power consumption: 2 W

Supported LTE/3G bands

• LTE (FDD): 1 (2100), 2 (1900), 3 (1800), 7 (2600), 8 (900), 20 (800)
• LTE (TDD): 38 (2600), 40 (2300)
• 3G: 1 (2100 MHz) 2 (1900 MHz) 5 (850 MHz) 8 (900 MHz)
• 2xCA LTE bands: 1+1/3/5/7/8/20/28, 3+3/5/7/8/20/28, 5+5/7, 7+7/8/20/28, 40+40, 8+8, 38+38, 41+41

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	MikroTik
Parametry	Mode of operation	Access Point
Parametry	Band	2,4 GHz
Parametry	Internal modem	4G LTE
Parametry	Management	website
Parametry	Number of LAN (RJ-45) ports	1
Parametry	LAN port operating standard	10/100/1000 Mbps
Parametry	Ports	USB 2.0
Parametry	Antenna	built-in
Parametry	Width	170 mm
Parametry	Height	162 mm
Parametry	Depth	40 mm
Parametry	Product weight with unit packaging	1 kg
Parametry	EAN (GTIN)	4752224009333
Parametry	Manufacturer code	LtAP-2HnD&FG621-EA&LR8
Parametry	Model	LtAP-2HnD&FG621-EA&LR8
Parametry	The highest standard supported	802.11n (Wi-Fi 4)
Parametry	Certificates of conformity	CE
Parametry	Batteries included	no
Parametry	Wireless operation standard	802.11n (Wi-Fi 4),802.11g,802.11b
Parametry	Additional features	MAC cloning,VPN server
