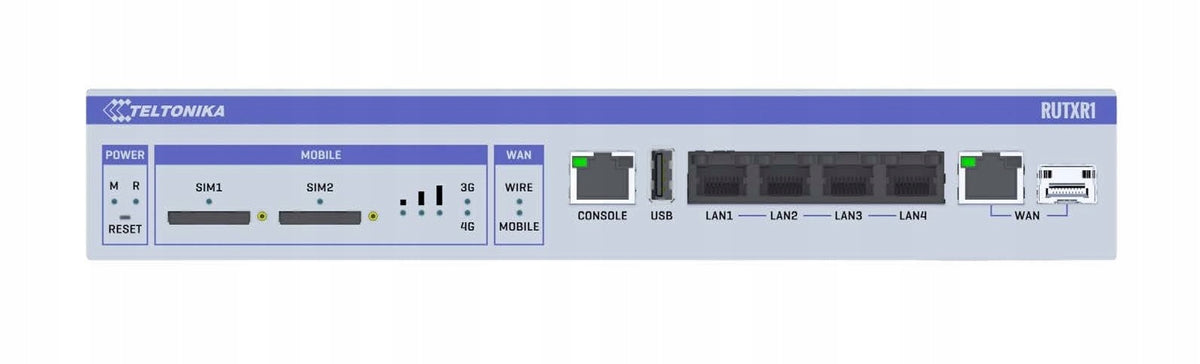

Belaidis 4G LTE maršrutizatorius TELTONIKA RUTXR1, Dual SIM

Trumpai apie prekę

Prekė: Belaidis 4G LTE maršrutizatorius TELTONIKA RUTXR1, Dual SIM. Kategorija: Mobilieji maršrutizatoriai.

• Gamintojas: Teltonika
• Modelis: 569554253

LTE Cat6, Dual Band WiFi (2,4GHz & 5GHz), Dual SIM, 1x SFP, 5x RJ45 1000Mbps, VLAN, VPN, SMS

Amazing performance and durability

This robust DUAL SIM industrial router is equipped with four Gigabit Ethernet LAN and Ethernet/SFP WAN ports with automatic failover, backup WAN and various switching scenarios. 256 MB RAM. It is an excellent industrial device, thanks to its powerful hardware configuration combined with basic RutOS software features such as VPN services, advanced firewall and support for remote management via RMS.

Thoughtful, Reliable, and Simple

• Proprietary RutOS operating system based on OpenWRT
• Backup power supply
• Proprietary Firewall
• Flexible LAN network configuration (VLAN, DHCP, VoIP, Load Balancing) and WAN (backup link, OpenVPN, RMS)
• Can be mounted in a cabinet or a 19" rack
• USB port for printer, external hard drive, or additional modem

Quick Specifications:

• WiFi Operating Frequency: Dual Band (2.4GHz, 5GHz)
• Number of LAN Ports: 5x [10/100/1000M (RJ45)], 1x [1G (SFP)]
• LTE Category: Cat.6 (300Mb/s Download, 50Mb/s Upload)
• Maximum Wireless Transmission Speed: 867 Mb/s
• Wireless Network Standards: IEEE 802.11ac Wave 2
• Connectivity Type: 4G/LTE, Wi-Fi
• Dual SIM: Yes
• RAM Memory: 256MB
• USB Port: 1x USB
• Device Power Supply Type: Power Adapter (redundant)

Small with great possibilities

The possibility of connecting two SIM cards with automatic switching between cards and connectivity at speeds up to 300 Mbps, equipped with a USB port, dual-band WiFi 5 with data transfer up to 867 Mbps, 1 SFP port and 5 dedicated Ethernet ports make RUTRX1 a unique product in the segment of corporate mobile routers.

RUTRX1 is a great solution for businesses

Remote management of RMS

Thanks to the developed RMS (remote management system), it is possible to remotely manage the device via the web interface on the website of the network administrator.

Technical Specifications:

Mobile Connectivity

• Mobile Module: 2 x 4G (LTE) cat. 6 - up to 300 Mbps, 3G - up to 42 Mbps
• SIM/Module Switching: 2 SIM cards, one for each mobile module
• Automatic Switching Scenarios: weak signal, data limit, SMS limit, roaming, no network, network connection denied, data connection failure
• Status: Signal strength, SINR, RSRP, RSRQ, bytes sent/received, mobile module in use
• USSD: Support for sending and reading USSD messages
• Black/White List: Yes
• Multiple PDN Networks: Ability to use different PDN networks for multi-access to networks and services
• Band Management: Band locking, information on currently used band
• APN: Auto APN
• Bridge Mode: Direct connection (bridge) between the mobile ISP and the device on the LAN

Wireless Network

• Wireless Operating Mode: 802.11b/g/n/ac (Wi-Fi 5) with data transfer speeds up to 867 Mbps (Dual Band, MU-MIMO) 802.11r with fast transition, Access Point (AP), Station (STA)
• Wi-Fi Security: WPA2-Enterprise-PEAP, WPA2-PSK, WPA-PSK, WEP: AES-CCMP, TKIP, automatic encryption modes, client separation
• ESSID: ESSID hiding mode
• Wireless Hotspot: Captive portal (hotspot), internal/external Radius server, customizable landing page

Wired Transmission:

• Ethernet WAN: 1x WAN port 10/100/1000 Mbps, compliant with IEEE 802.3, IEEE 802.3u, 802.3az standards, auto MDI/MDIX support
• Fiber Optic: 1x SFP port - cannot operate simultaneously with the Ethernet WAN port
• Ethernet LAN: 4 LAN ports, 10/100/1000 Mbps, compliant with IEEE 802.3, IEEE 802.3u, 802.3az standards, auto MDI/MDIX support

Console Port:

• Console Port: RS-232 (RJ45) for router configuration and debugging

Network Data:

• Routing Types: static routing, dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP)
• VoIP Passthrough Support: H.323 and SIP-alg NAT protocol support, enabling correct routing of VoIP packets
• Connection Monitoring: PPing Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link control
• Firewall Features: forwarding, traffic rules, custom rules
• DHCP: static and dynamic IP address assignment, DHCP Relayd
• QoS: traffic priority queuing by source/destination, service, protocol, or port, WMM, 802.11e
• DDNS: supports up to 25 service providers automatically, manual configuration of additional ones possible
• Network Backup: VRRP options, mobile and wired WAN options, each can be used as a backup with automatic failover
• Load Balancing: balancing internet traffic across multiple WAN connections
• SSHFS (Optional): ability to mount a remote file system using SSH protocol (not available in the standard software version)

Security:

• Authorization: pre-shared key, digital certificates, X.509 certificates
• Firewall: pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
• Attack Prevention: DDoS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
• VLAN: port and tag-based VLAN separation
• Mobile Control: setting custom data limits for SIM cards
• WEB Filter: blacklist to block unwanted websites, whitelist for allowed sites only
• Access Control: flexible TCP, UDP, ICMP packet access control, MAC address filter

VPN Data:

• OpenVPN: simultaneous multiple client and server operation, 12 encryption methods
• OpenVPN Encryption: DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
• IPsec: IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)
• GRE: GRE tunnel
• PPTP, L2TP: client/server services can operate simultaneously
• Stunnel: proxy designed to add TLS encryption to existing clients and servers without code changes
• DMVPN: method for building scalable IPsec VPN networks
• SSTP: SSTP client instance support
• ZeroTier: ZeroTier VPN

Modbus Communication Protocol Data:

Modbus TCP Slave:

• ID range: 1-255
• Remote access: allows access via WAN
• Custom registers: custom Modbus TCP register block requests that read/write a file within the router and can be used to extend Modbus TCP Slave functionality

Modbus TCP Master

• Function support: 01, 02, 03, 04, 05, 06, 15, 16
• Data format support: 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit float (Big endian, Big endian with byte swap, Little endian, Little endian with byte swap)

Modbus RTU Master (RS232)

• Supported baud rates: 300 to 115200
• Supported functions: 01, 02, 03, 04, 05 (alarms only), 06 (alarms only), 15 (alarms only), 16 (alarms only)
• Data bits: 5 to 8
• Stop bits: 1 or 2
• Parity: None, Even, Odd
• Flow control: None, RTS/CTS, Xon/Xoff

MQTT Gateway:

• Allows sending commands and receiving data from Modbus Master via an MQTT broker

Data Transfer to Server:

• Via protocols: HTTP(S), MQTT, Azure MQTT, Kinesis

Monitoring and Management:

• Web Interface: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshooting, event log, system log, kernel log
• FOTA: firmware update from server, automatic notification
• SSH: SSH (v1, v2)
• SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET
• Connection: reboot, status, WiFi on/off, mobile data on/off, output on/off
• TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
• MQTT: MQTT broker, MQTT publisher
• SNMP: SNMP (v1, v2, v3), SNMP trap
• JSON-RPC: API management via HTTP/HTTPS
• MODBUS: MODBUS TCP status/control

IoT Platforms:

• Cloud of Things: allows monitoring device data, mobile data, network information, availability
• ThingWorx: allows monitoring WAN type, WAN mobile operator name, mobile signal strength, mobile network type
• IoT Connectivity (Cumulocity): allows monitoring device model, version number and serial number, mobile hardware ID, ICCID, IMEI, connection type, operator, signal strength, WAN type and IP address
• Azure IoT Hub: can send device IP address, bytes sent/received, 3G connection status, network link status, IMEI, ICCID, model, manufacturer, serial number, version, IMSI, SIM card status, PIN status, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, operator, operator number, connection type, temperature, number of PINs to Azure IoT Hub

Hardware Specifications:

• Processor: ARM Cortex A7, 717 MHz
• RAM Memory: 256 MB, DDR3
• Flash Memory: 256 MB SPI Flash

Software and Configuration:

• Web Interface: firmware update from file, check for updates on server, configuration profiles, backup, restore point
• FOTA: firmware/configuration update from server
• RMS: firmware/configuration update for multiple devices
• Settings Retention: firmware update without losing current configuration

Software Customization:

• Operating System: RutOS (Linux operating system based on OpenLinux)
• Supported Languages: Busybox shell, Lua, C, C++
• Development Tools: SDK package with provided compilation environment

Serial Connection:

• RS232: RJ45 connector, full RS232 connection (with RTS, CTS)
• Serial Connection Types: console, MODBUS gateway, MODBUS RTU master, Serial OverIP, modem mode, Ntrip client

USB Port:

• Data transmission port type: USB 2.0
• Application support: Samba - access, custom scripts
• External device support: ability to connect an external hard drive, flash drive, additional modem, printer
• File storage formats: FAT, FAT32, NTFS

Power Supply:

• Connector: 2x 4-pin industrial DC power socket - for main and backup power
• Input voltage range: 9-50 V DC, reverse polarity protection, surge protection
• Power consumption: 18W (max), < 3W in idle mode

Physical Interfaces (Ports, LEDs, Antennas, Buttons, SIM Card Slots)

• Ethernet: 5x RJ45 10/100/1000 Mbps port
• Console Port: 1x RJ45 RS232
• Fiber Optic Port: 1x SFP
• LEDs: 2x WAN, 2x Mobile Connection, 3x Mobile Signal Strength, 2x SIM Card Activity, 10x Ethernet Status, 2x Console Port Status, 2x Power
• SIM Card Slots: 2x SIM slot (Mini SIM - 2FF), 1.8V / 3V, accessible from outside the device
• Power: 2x 4-pin DC connector
• Antenna: 2x SMA for LTE, 2x RP-SMA for WiFi
• USB A port for external devices

Physical Parameters:

• Device Dimensions (without antennas mounted): 272 x 42.6 x 122.6 mm (width/height/depth)
• Mounting Height in 19" Rack Cabinet: 1U

Package Contents:

• RUTXR1 Router
• 2x LTE antenna (male SMA connector, 3m cable, magnetic mount)
• 2x WiFi antenna (male RP-SMA connector, 1.5m cable, magnetic mount)
• 19" Rack mounting brackets
• 8x mounting screws
• 4x feet
• SIM card tray eject tool
• 18W Euro Power Adapter
• Ethernet Cable (1.5m)
• QSG (Quick Start Guide)
• RMS Leaflet

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Model	569554253
Parametry	Manufacturer	Teltonika
Parametry	Kind	4G LTE
Parametry	EAN (GTIN)	5908066385282
Parametry	Manufacturer code	569554253
