Belaidė tinklo plokštė WLE600VX QCA9882, 2.4G/5G

Trumpai apie prekę

Prekė: Belaidė tinklo plokštė WLE600VX QCA9882, 2.4G/5G. Kategorija: Wi-Fi tinklo adapteriai.

• Gamintojas: no brand
• Modelis: PUB2026071218177

Function:

1. Dual Band Performance: Built into the QCA9882 chipset, this module provides flexibility in choosing the dual band protocol, giving you the convenience of choosing a 2,4 GHz or 5 GHz network based on your needs.

2. Superior speed and bandwidth: Enjoy robust and fast connectivity at speeds up to 867 Mbps and an impressive 80 MHz bandwidth. Suitable for a variety of applications in the enterprise, industrial and network security sectors.

3. Extended coverage and performance: Designed to operate effectively in both AP and STA modes, this module supports high QAM up to 256, providing wide signal coverage and enhanced performance.

4. Energy-efficient design: Outline designed for low power consumption, this module seamlessly connects to third-party platforms, including x86 and ARM processors, maximizing operational efficiency and lifespan.

5. Industrial Application: With 2x U.FL connector and 3,3V operating voltage, this module is specially designed to fit perfectly into industrial grade wireless router, offering compatibility and reliable performance.

Specification:

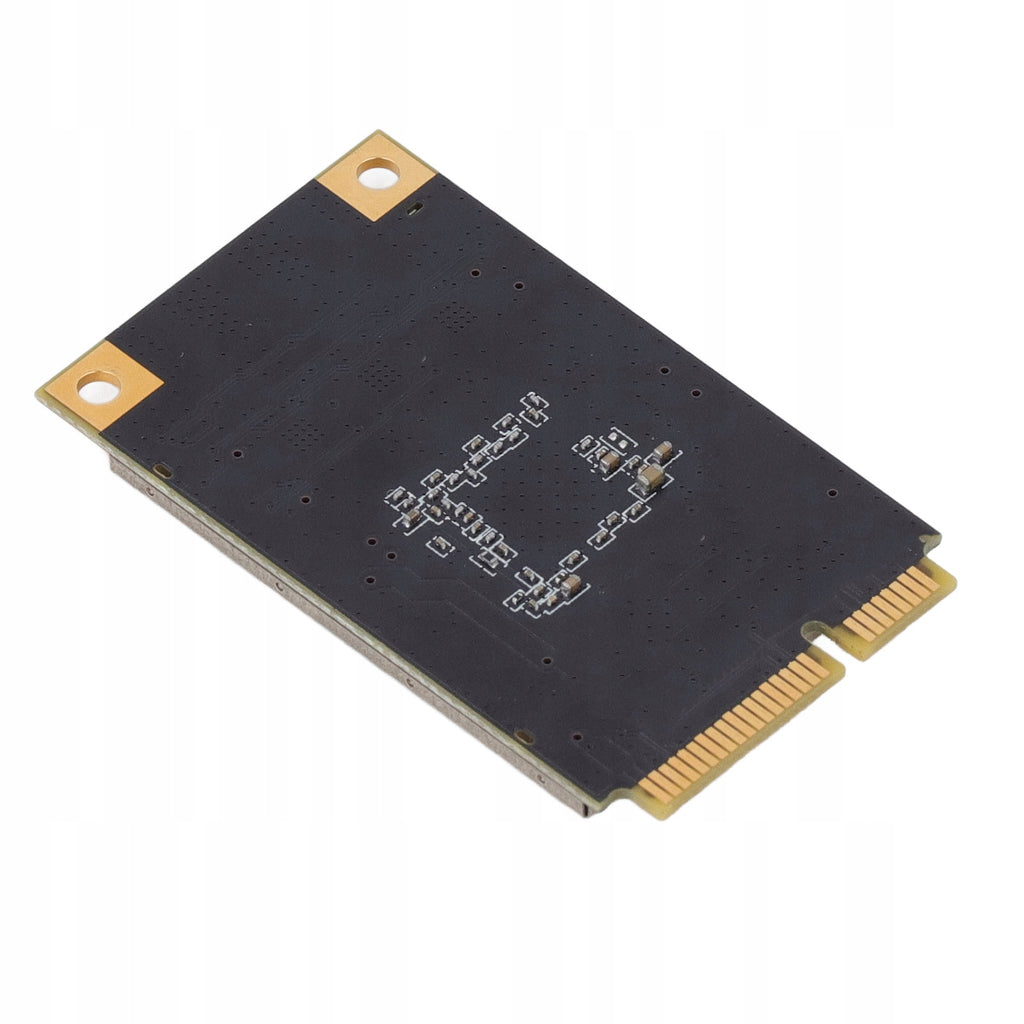

• Item Type: WLE600VX QCA9882 Module
• Material: PCB
• Chipset: QCA9882

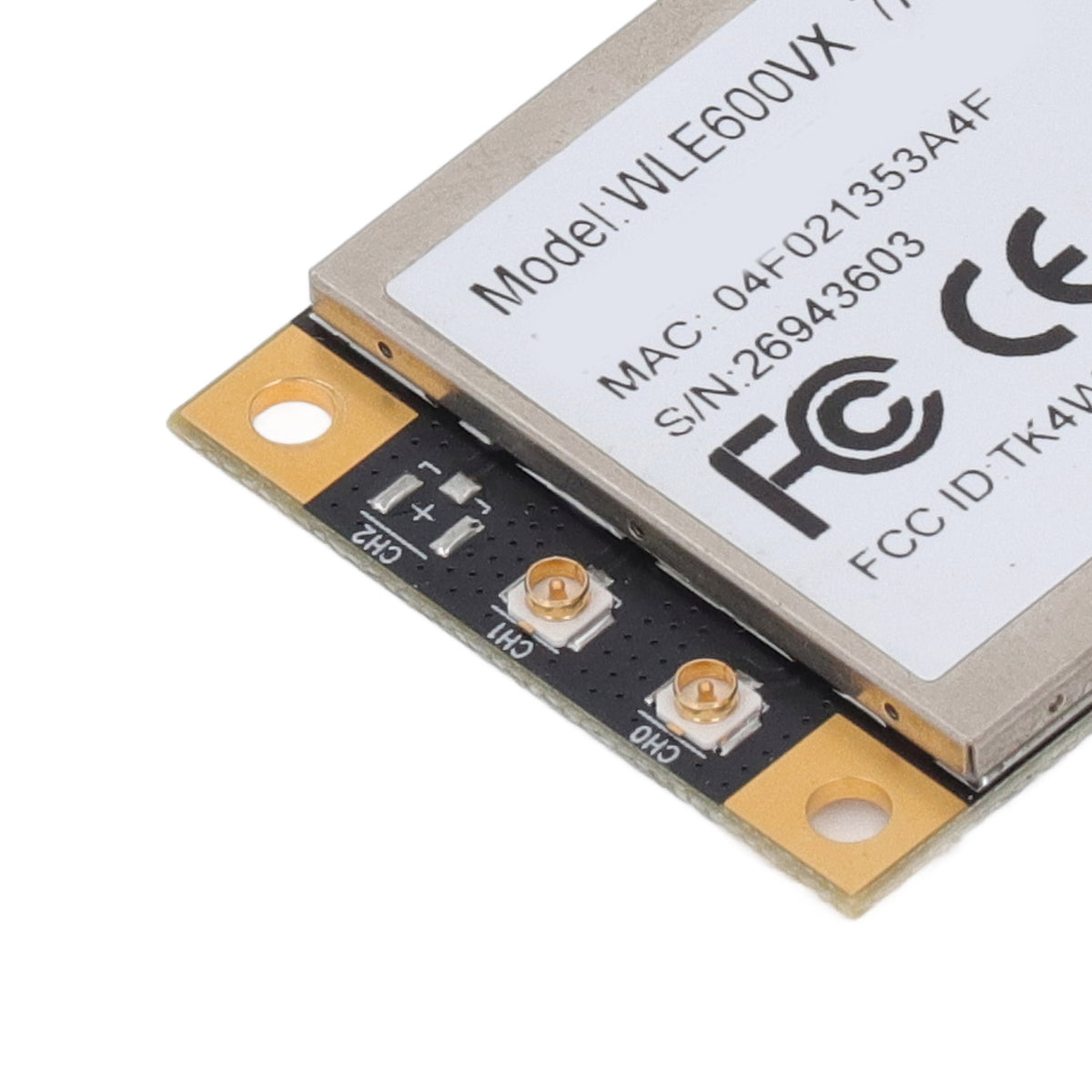

• Connector Type: 2x U.FL Connectors
• Wireless fidelity interface: PCIE 1.1
• Network protocol 2,4 GHz: 802.11b g N, maximum 21dbm per chain
• 5 GHz network protocol: 802.11a n AC, maximum 20dBm per chain
• WLAN frequency range: 2,412 - 2,472 GHz, 5.150 - 5,825 GHz
• Power Consumption: 3,5 W (maximum)
• Operating voltage: 3,3 V.

How to use:

• Plug and Play.
• List of packages

:

• Module 1 x WLE600VX QCA9882

Specifications
