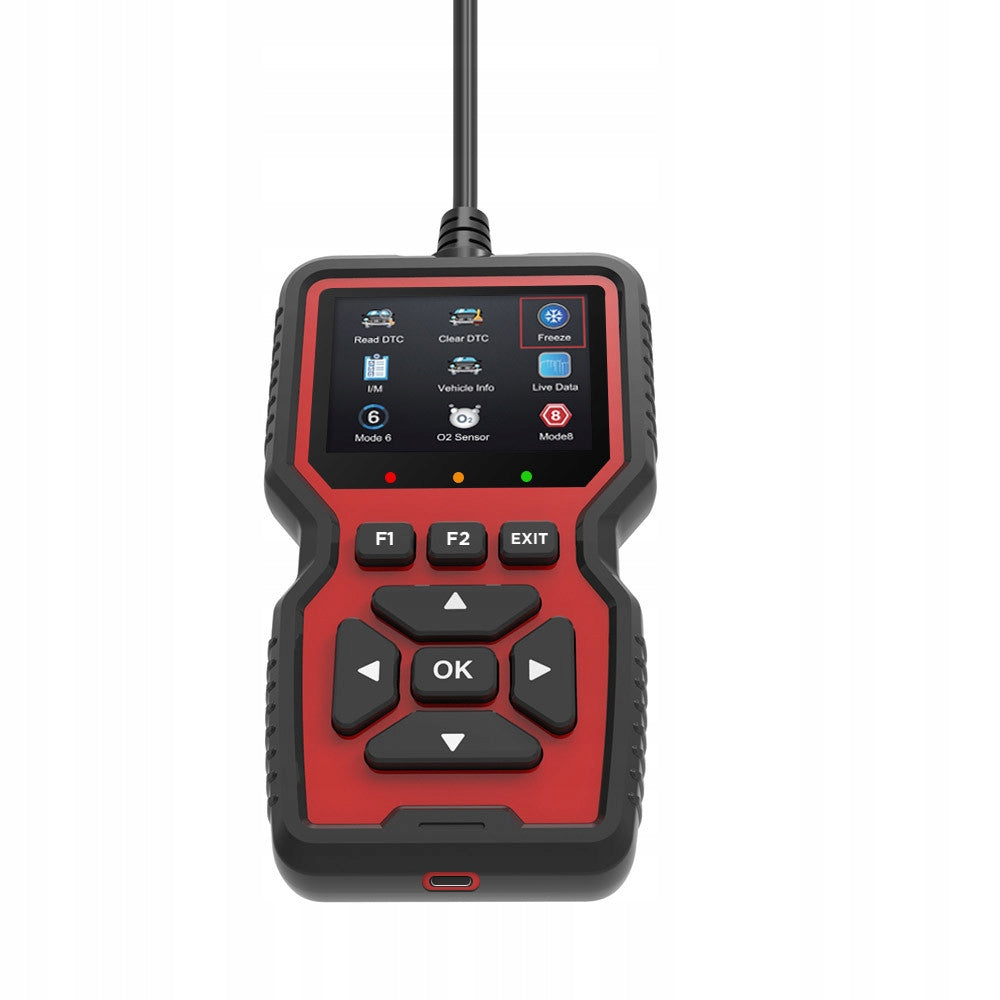

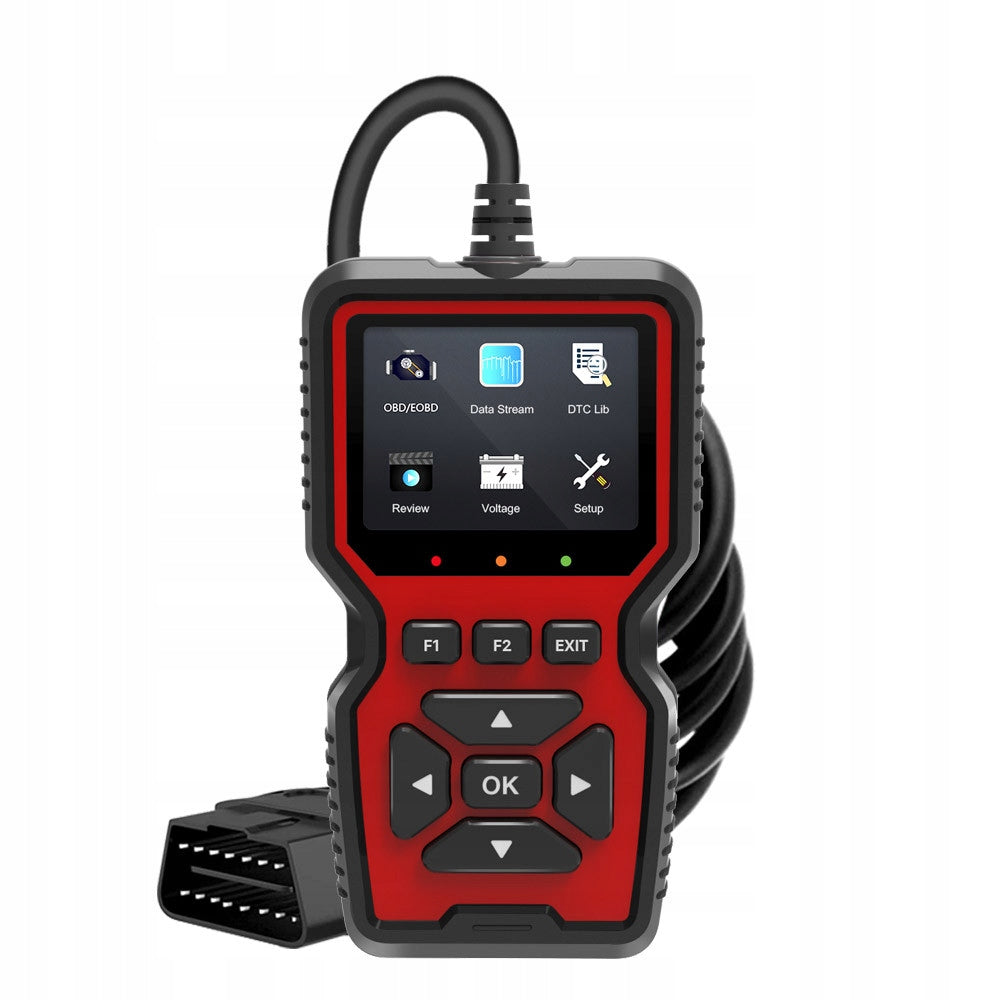

Automobilių diagnostikos skeneris OBD2 V519

Trumpai apie prekę

Prekė: Automobilių diagnostikos skeneris OBD2 V519. Kategorija: Diagnostikos testeriai ir sąsajos.

• Gamintojas: Obd2
• Modelis: OBD2

DIAGNOSTIC TESTER INTERFACE OBD2 UNIVERSAL SCANNER FOR COMPUTER CAR

BLACK

Features：

1. Quickly read current car faults and remove the engine fault light.

2. Plug and play fast reading.

3. Quickly read real-time data stream information car engine.

4. Built-in 35901 error code s, quick query error code definition.

5. The V519 car diagnostic tool supports all OBDI compliant models.

Function：

Model:V519 OBD fault code diagnostic scanner

Display: 2.8 inch color screen

Operating Voltage: 9-16V

Operating environment:-20~65℃

Storage temperature:-30~70℃

Product Size: 155*87*24mm

Product weight: GW: 323g, NW: 246g

Package dimensions: 200*130*43mm

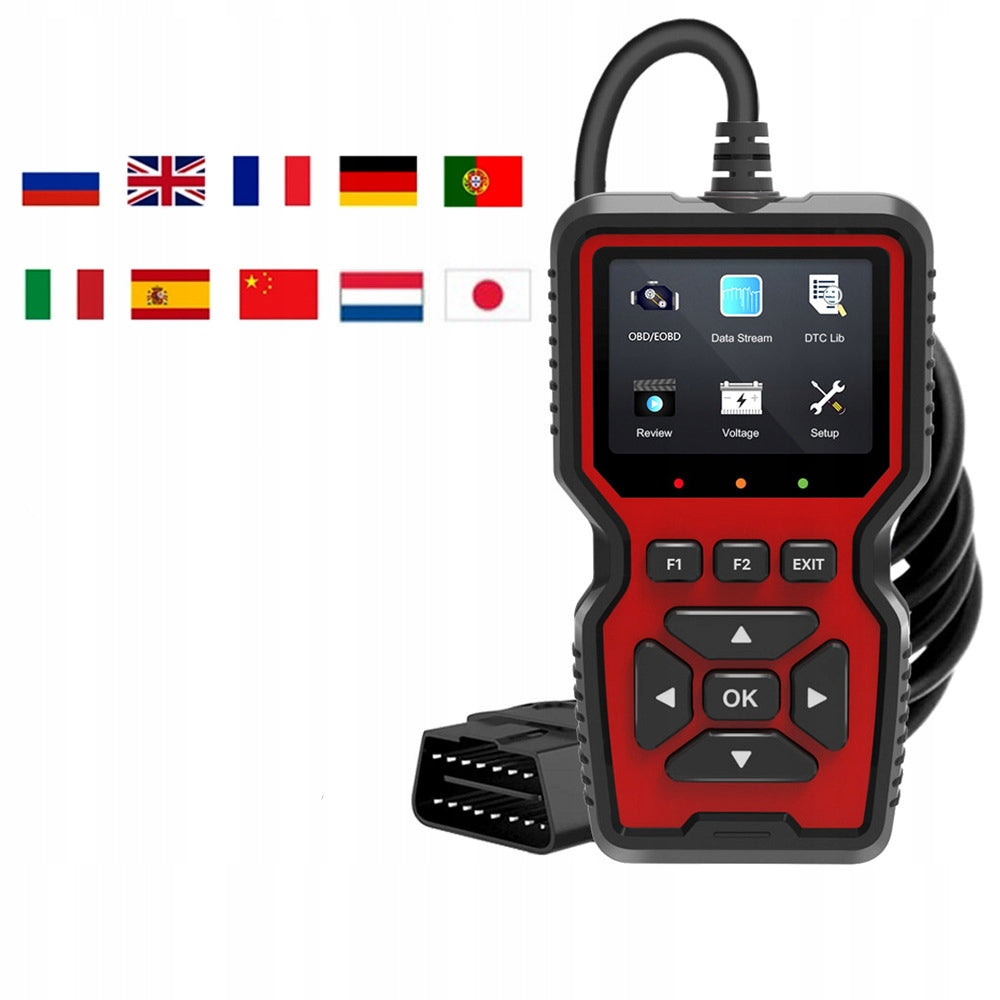

Support ten languages: English, German, French, Spanish, Italian, Russian, Dutch, Chinese, Japanese, Portuguese

Specification:

* Supports nine standard OBD II/EOBD protocols

* Read the engine for the car error code

* Clear engine error code

* Vehicle Fault Freezing Frame

* Ready state I/M

* Vehicle Information

* Car Data Flow

* Battery Voltage Reading

* Mode 6 detection

* oxygen sensor test

* Mode 8 detection

* Error code query

* Playback Function

* Printing Function

Protocol support:

This product can work on all cars, which complies with the following protocols.

1. SAE J1850 PWM (41.6Kbaud)

2. SAE J1850 VPW (10.4Kbaud)

3. ISO9141-2(5 bod init, 10.4Kbaud)

4. ISO14230-4 KWP (5 bod init, 10.4 Kbaud)

5. ISO14230-4 KWP (fast init, 10.4 Kbaud)

6. ISO15765-4 can (11bit ID, 500 Kbaud)

7. ISO15765-4 can (29bit ID, 500 Kbaud)

8. ISO15765-4 can (11bit ID, 250 Kbaud)

9. ISO15765-4 can (29bit ID, 250 Kbaud)
