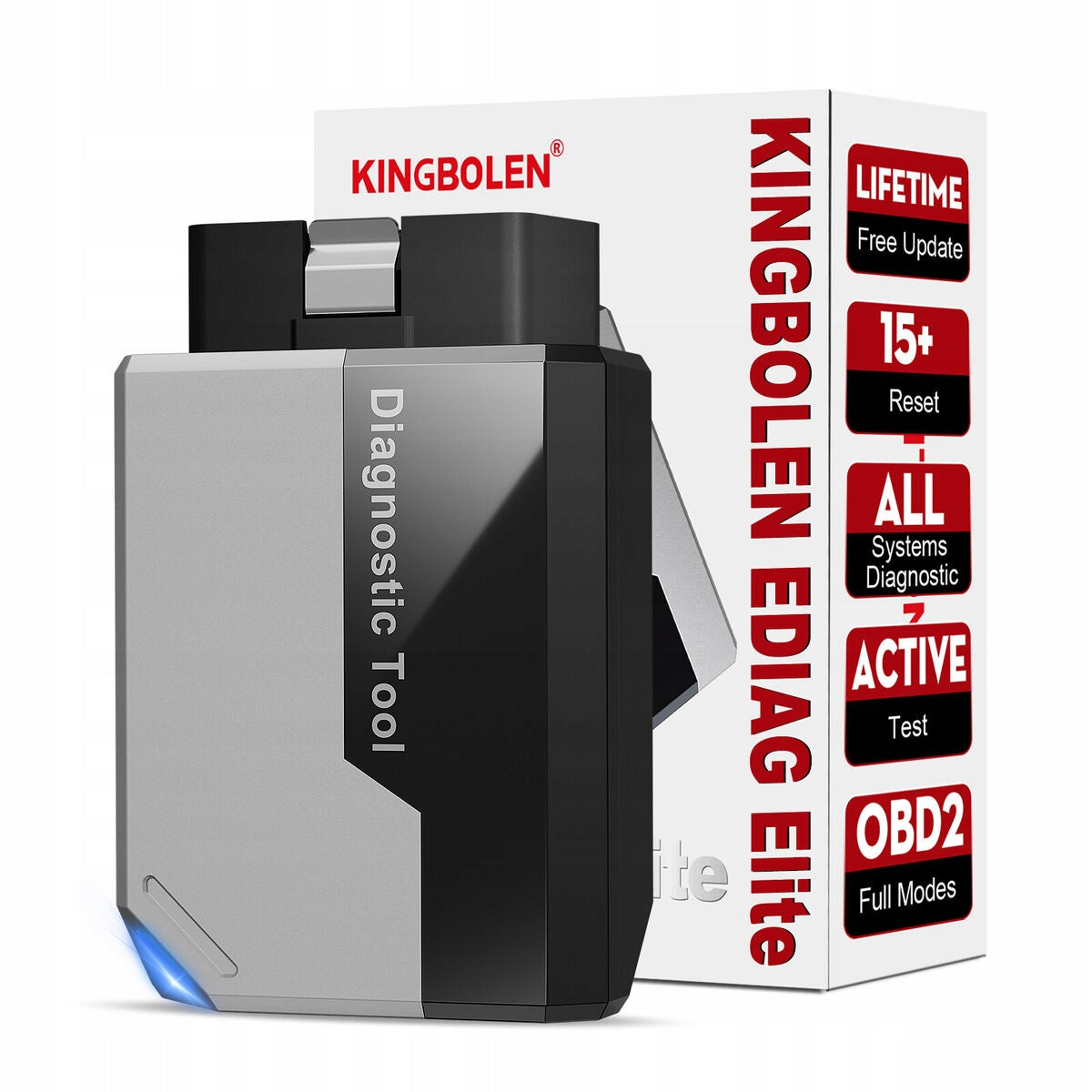

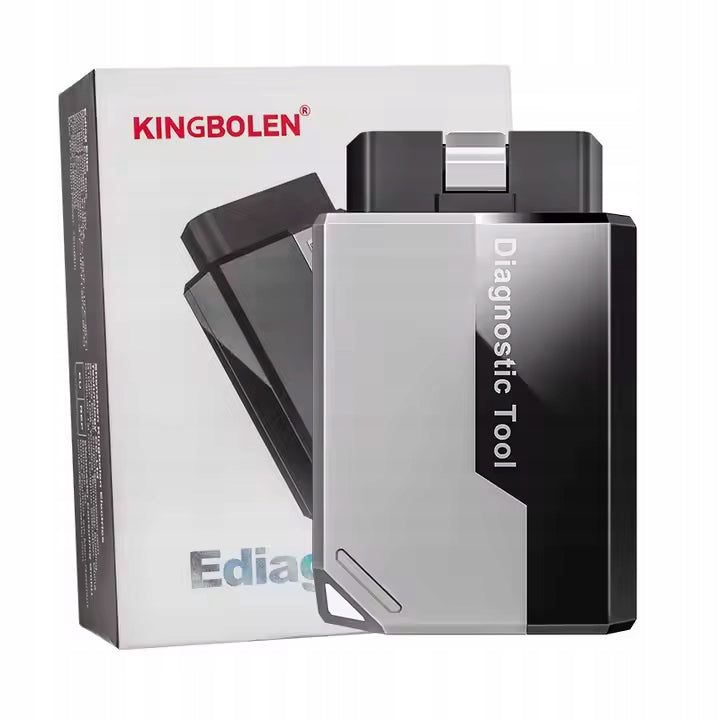

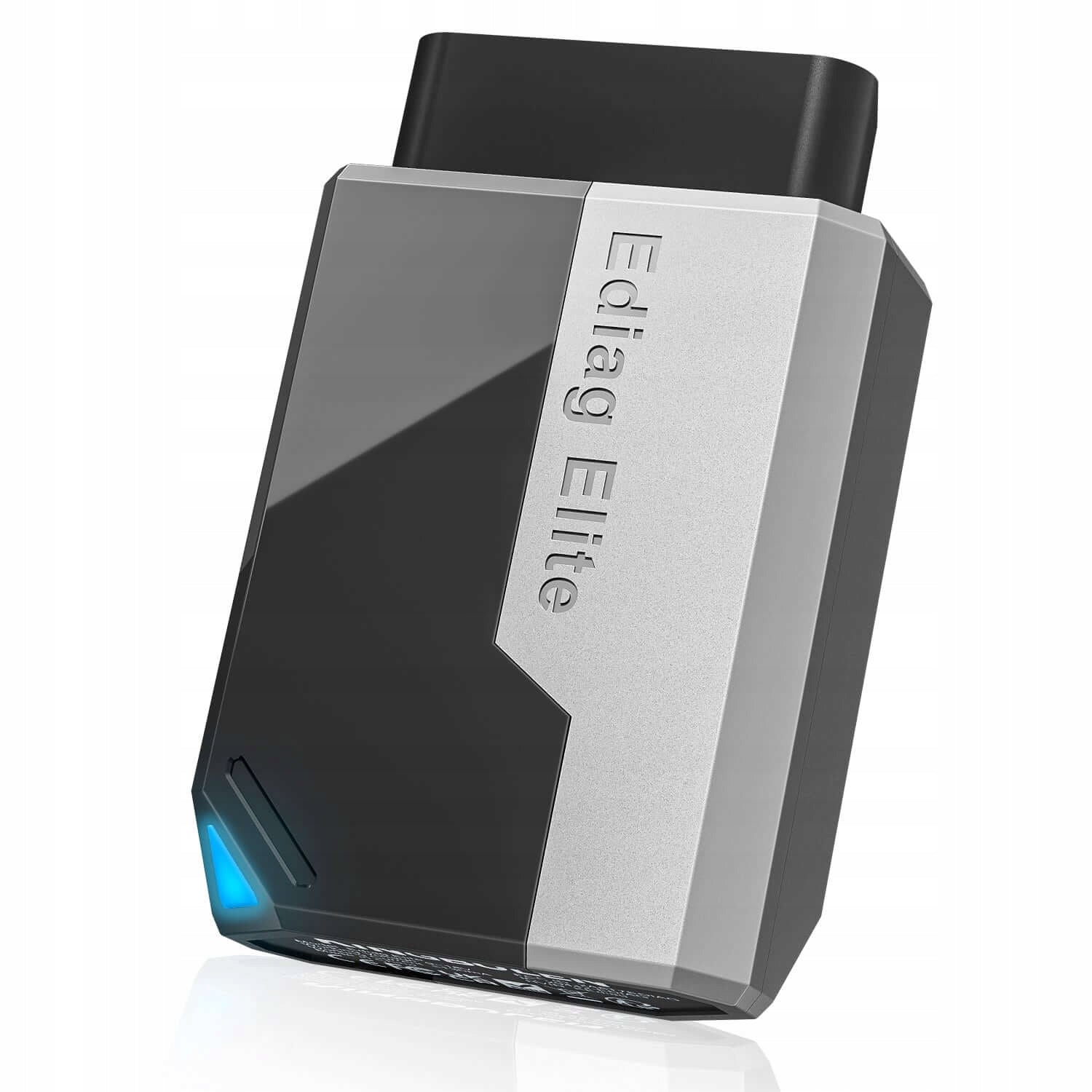

Automobilių diagnostikos įranga Ediag ELITE DIAGNOSTIC TESTER

Trumpai apie prekę

Prekė: Automobilių diagnostikos įranga Ediag ELITE DIAGNOSTIC TESTER. Kategorija: Diagnostikos testeriai ir sąsajos.

• Gamintojas: Kingbolen
• Modelis: CAN FD TESTER THINKDIAG EDIAG ELITE-1

Latest release of Ediag device supporting vehicles up to 3.5 t (passenger and delivery)

FULL SOFTWARE FOR EUROPEAN, American and Asian BRANDS

The diagnostic device is designed to work in the workshop and for automotive hobbyists.

The equipment is equipped with a main connector. The main unit has a durable housing made of plastic and rubber. It provides above-average mechanical resistance to damage during operation. Diagnostic cable in strong rubber braid. Power supply with OBD.

The devices come from the polish distribution of ThinkCar, which is a software developer

We have license documents for each device and full rights to the mark.

The device has access to diagnostics of all brands, and 15 special functions

Despite its simple construction, it supports the latest models of leading manufacturers. Diagnostics at this level and in such a price has not been available so far, thanks to the adaptation of software from higher tester models, ThinkCar engineers managed to create an easy-to-use, OBD-powered tester. Thanks to the touch display, the quality of service is clear and maintained at a high level.

INFORMATION

Main software for media/tablet: ANDROID, IoS (we recommend android)

working language: Polish.

Hardware version: 2026 by Thinkcar®

software version: Latest available software in Polish, English, Russian, German, Spanish, Czech

Update period:INDEADLY, Sounds weird? Check

Connectivity: Bluetooth

scope of service: Passenger vehicles, commercial vehicles (up to 3.5 tonnes),

wiring: obd connector combined with processor. 1 bone

TECHNICAL DATA:

- MAX 18v voltage

- operating temperature -20 to +55

The program supports 93 brand protocols, plus the rest with OBD 2 after via EOBD functions (CAN, KWP2000,ISO9140,j1850 VPW and PWM)

• Automatic system scanning
• Identification of VIN
• Driver data, modul version,data, etc.
• Deleting frozen frames, electronics errors
• Reading real data (Live DATA)

Main capabilities of the tester used in everyday work

• Reading CAN bus errors
• Reading DTC/fault codes
• Reading real-time parameters/Live DATA/Graphics
• Reading VIN numbers
• Reading driver numbers and versions
• Reading the stored waveform in memory of various components
• Adaptation of components
• Adaptation of controllers
• Component training
• Forced commissioning of components
• Resumption of work Pumps,windmills,mechanisms
• Operation of EGR exhaust gas reciculation systems
• Operation/burning/adaptation of DPF particulate filters
• Support for ADBLUE and the entire EKO infrastructure in vehicles
• Support for service modes, i.e.:
• reset of the service control,
• service control reset- In kilometers and time
• Brake pad service settings
• setting of the electric handbrake
• pump and ABS venting mode
• calibration of the steering wheel position sensor
• Turn angle sensor calibration
• programming of Injectors
• battery programming
• Key programming (list available_)
• NIVO programming, Airmatic/pneumatic suspension
• calibration of the gearbox
• calibration of pneumatic components
• Activation of hidden functions (highlighting of corners, cruise control, etc. )
• Reset mode after an accident

The tester has the so-called. Maintence Funkction, i.e. derived shortcuts to support selected service functions from the device desktop, without having to enter the controller after a full scan of the vehicle

• OIL reset
• DPF regeneration
• ABS/blocks- replacement mode
• BATTERY encoding
• Transmission adaptation reset
• coding of injectors
• steering angle sensor encoding
• encoding of the suspension position/height sensor
• adpathy of front lamps
• adaptation of EGR and throttle
• reset modes transport
• reset imobilizer
• Airbag reset (of course if you do not need to disassemble the controller)
• Window reset/sunroof adaptation
• Reset vehicle personalization settings i.e. locks, lighting(leaving home)
• Navigation memory reset (so-called data cleaning)

Here we will list the features that THIS ThinkDiag MODEL WILL NOT DO

-interference in memory of Eprom state kilometers.

-Flash the driver memory and upload it to the driver you are using from another vehicle. Only the highest models of the ThinkTool MAX series have this feature

-Increase in vehicle power

-change the main menu language, if there is no choice, then we have the need to code a service device for a specific brand.

-full encoding of lamps from the USA, I note that full, because sometimes it is possible to program lamps front and back not anymore, or vice versa.

-Problem brands, with limited functionality, i.e. we will make the basics but we will not do wide coding: IVECO since 2019, Jaguar,Land Rover (02-11), Adblue system in the PSA group (boxer 2.0 hdi euro6, Jumper) reads but does not program after replacing pumps, tanks. Mercedes SBC until 07r, FCA ignition lock in 1.3 JTD only manually), Replacement of pads (Aston martindo 16r, maserati- only diagnostics until 21r. Unfortunately, there are no perfect devices, let's remember this
