Automobilio keltuvas TM-GROUP, 2,8 t, vienos kolonos, mobilus

Trumpai apie prekę

Prekė: Automobilio keltuvas TM-GROUP, 2,8 t, vienos kolonos, mobilus. Kategorija: Keltuvai stulpams.

• Gamintojas: TM-Group
• Modelis: NM2800AM

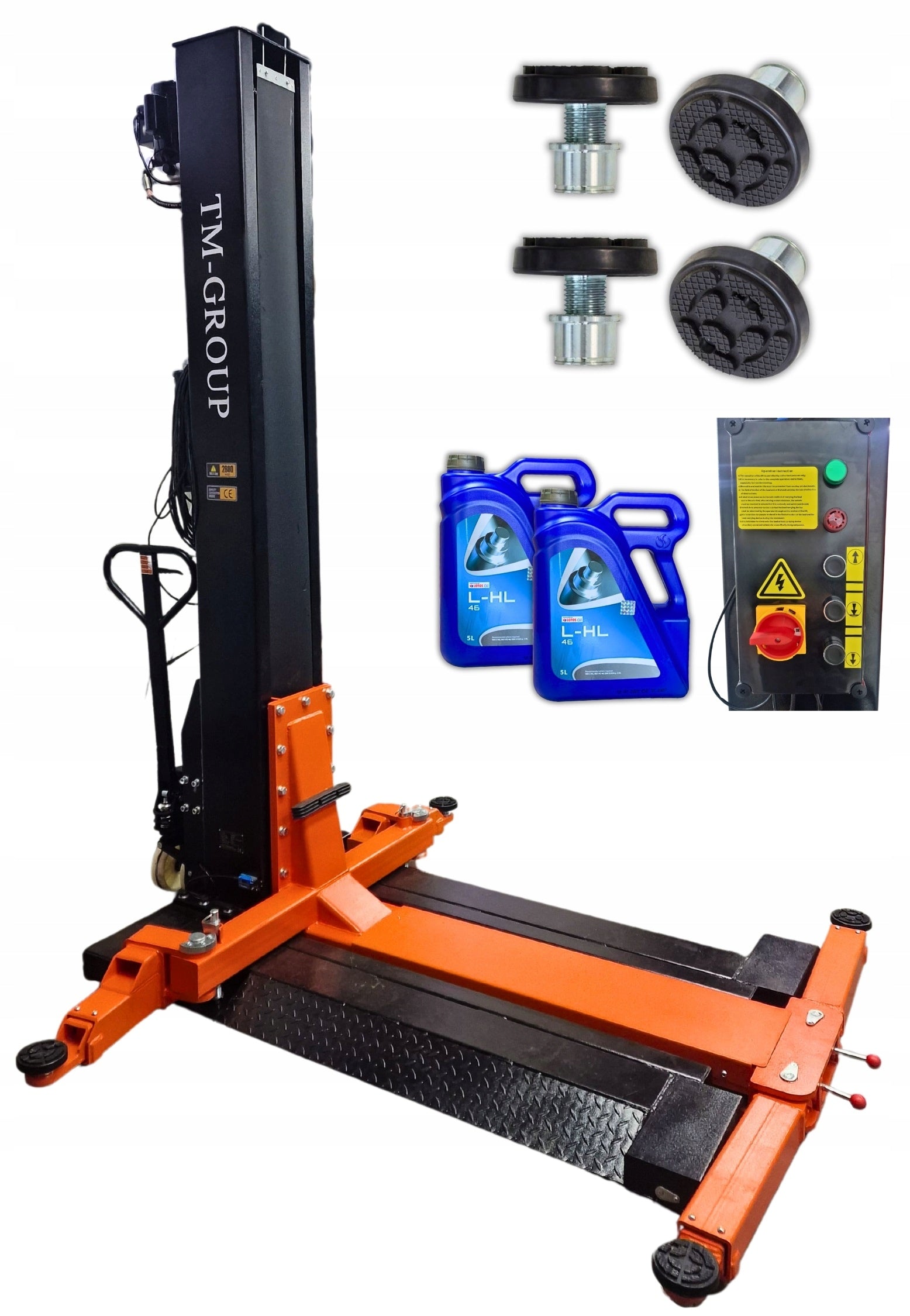

⭐ Additional set of rubbers included⭐

✅ Producer: TM-GROUP

✅ Maximum lifting capacity: 2,8 tons

✅ Power supply: 230V (optional 400V)

✅ Lowering time: 30 seconds

✅ Lifting time: 35 seconds

✅ Lifting height: 1900 mm

✅ Engine power: 2,2 kW

✅ Arm length range: 640 - 970 mm

✅ Meets UDT certification requirements: Yes

✅ Hydraulic oil 10L: included

✅ Asymmetrical arms

✅ Manually unlock the lock

✅ Low base frame

✅ Extendable opposite arm bed

✅ Possibility of "catching" the vehicle both from the inside and outside

✅ Arm angle adjustment

✅ Engine A, Piston S

✅ Cover covering the beds

✅ Stabilized base

✅ Extendable arms

✅ Unscrewable subliminal adjustable adapters

✅ Construction placed on a pallet truck (possibility of transport around the hall similarly to pallets)

✖ ATTENTION - transport with pallet jack only bare lift, without a car!

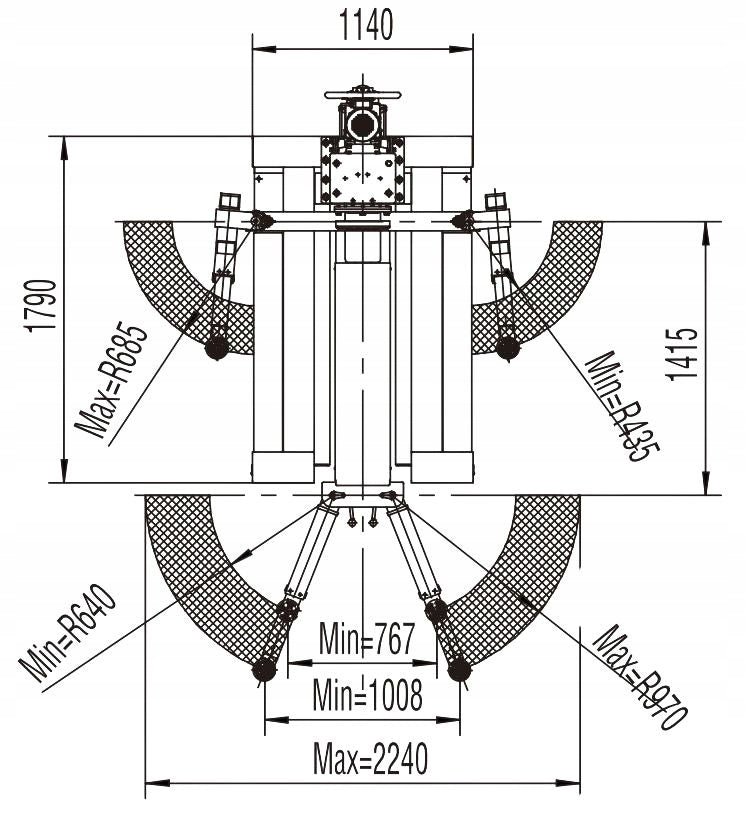

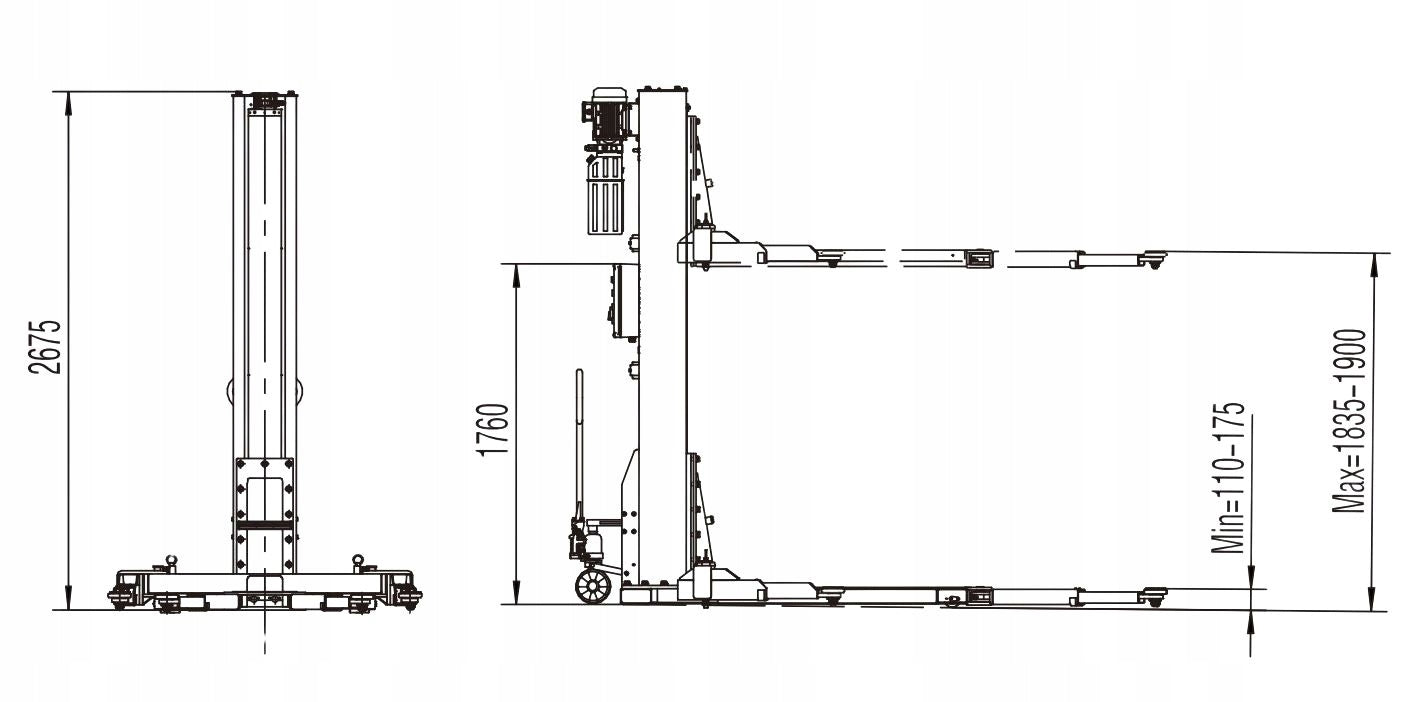

Technical drawing:

1. Three-stage screw-on washers.
2. Telescopic and rotating arms.
3. Rubber protection against door abrasion.
4. Power supply unit.
5. Mobile set.
6. Low base.

SLIP-ON SHOULDER BED FOR INSIDE AND OUT! * ✅

*The standard includes two column arms and two on the opposite side of the column, the following photos show the possibility of positioning the arms.

FULLY ROTATING COLUMN ARMS! ✅

EXTENDING THE ARMS ON THE OPPOSITE SIDE OF THE COLUMN, GIVING THE OPPORTUNITY TO CATCH THE CAR FROM THE OUTSIDE! ✅

⭐ UDT

Documentation:

The lift is delivered with the necessary documentation to be provided when registering with the Office of Technical Inspection:

✅ Declaration of conformity with CE certificate

✅ User manual in Polish

Specifications
