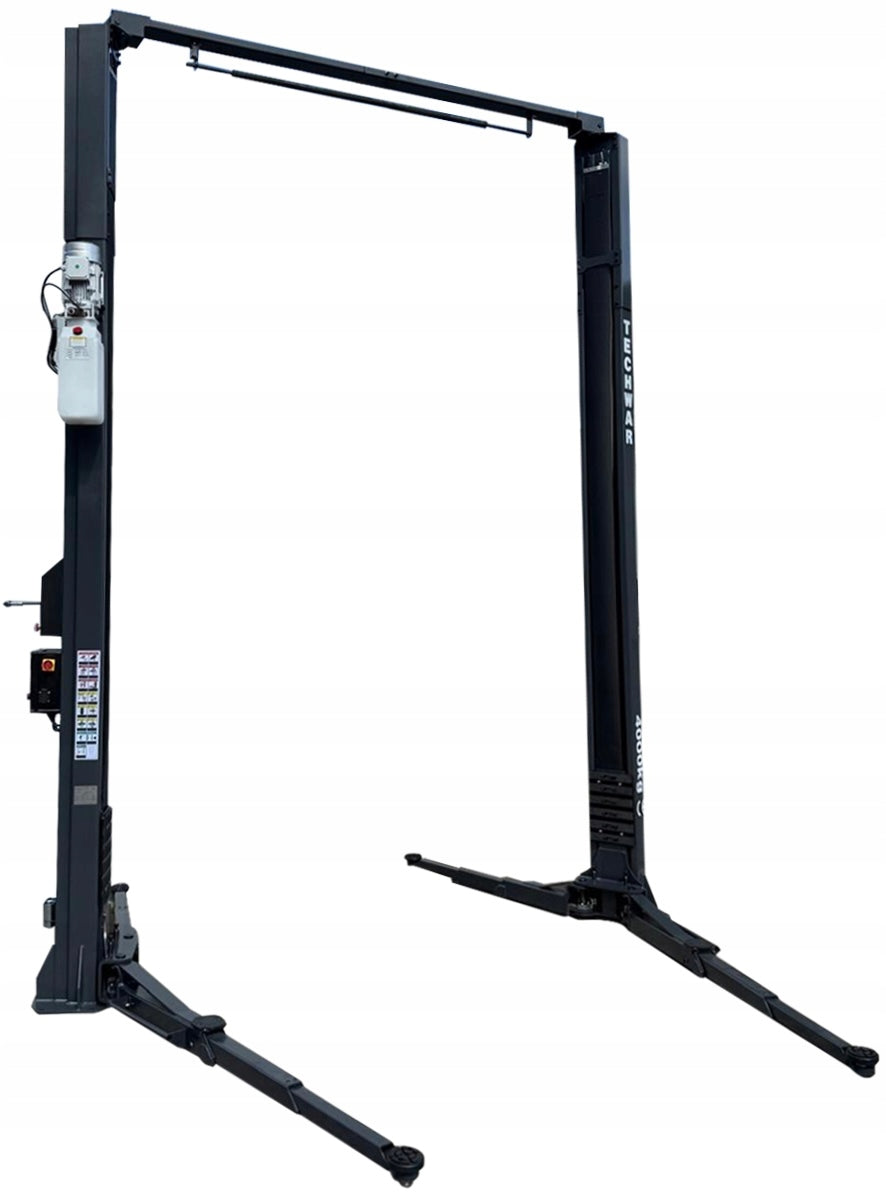

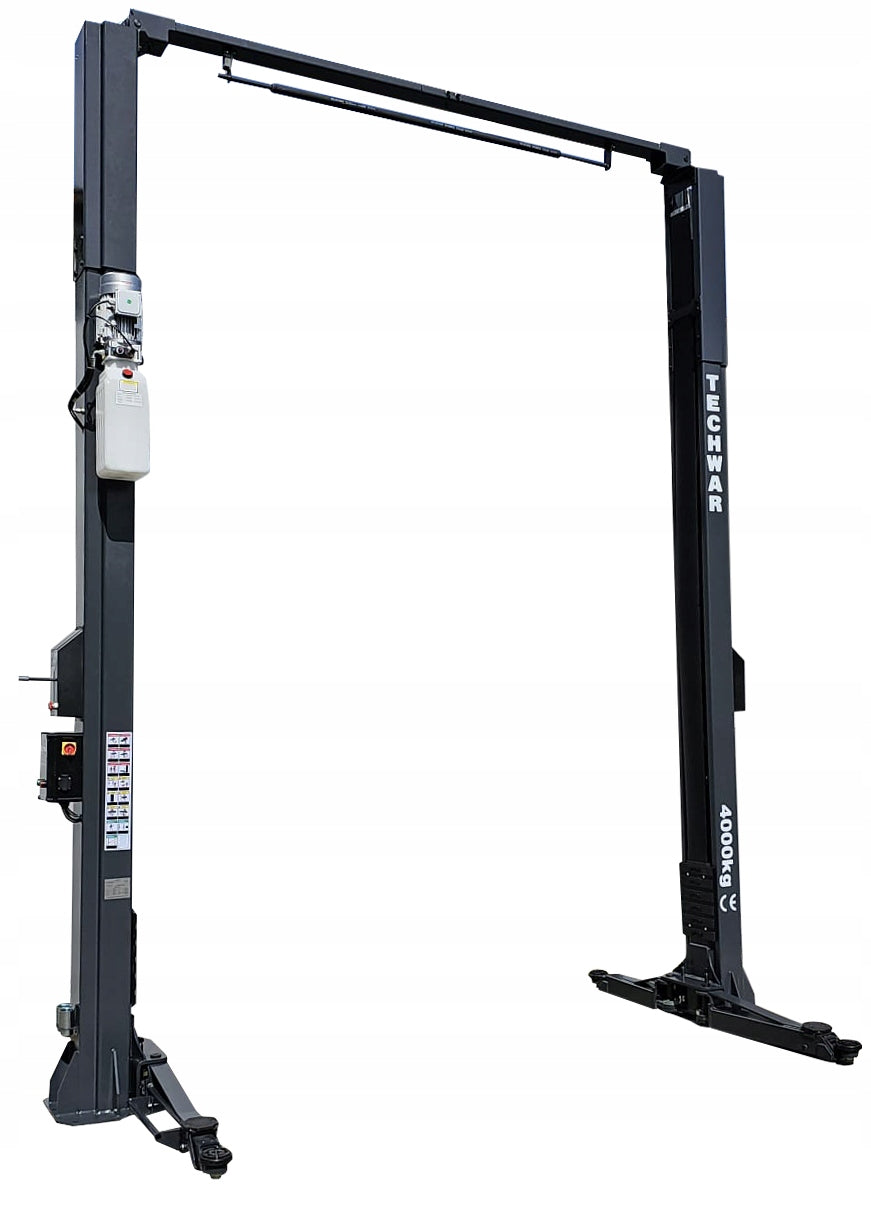

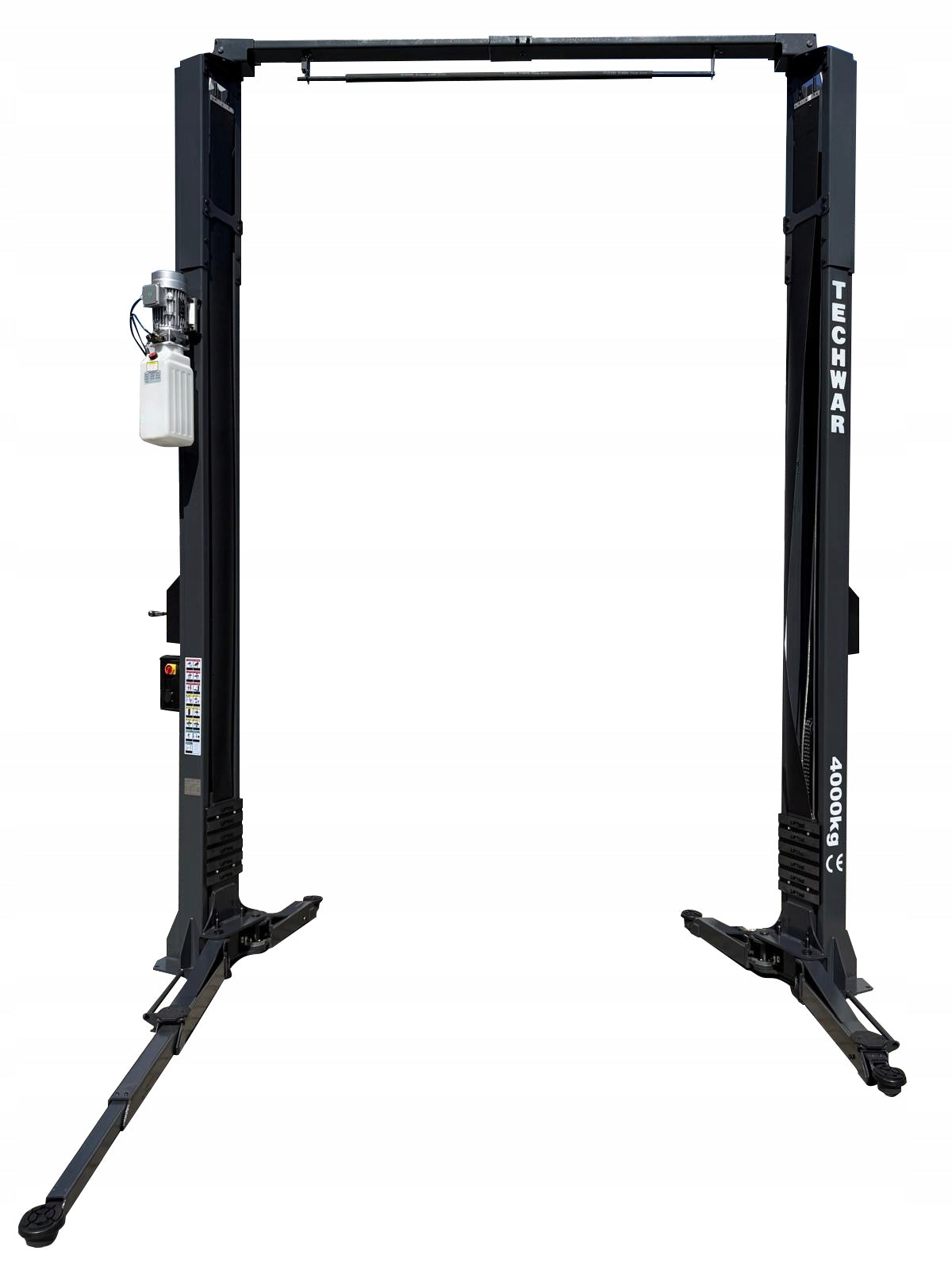

Automobilio keltuvas Techwar TL0008 su 4,5 m viršutine sija

Trumpai apie prekę

Prekė: Automobilio keltuvas Techwar TL0008 su 4,5 m viršutine sija. Kategorija: Keltuvai stulpams.

• Gamintojas: Techwar
• Modelis: TL0008

Key Benefits

The TL0008 model features stiffer columns with a modified shape. In cross-section, the column is bent 10 times (standard lifts typically use 4 to 6 bends). The TL0008 lift allows columns to be set asymmetrically at a 30° angle. The main advantage of asymmetrical positioning is the ability to direct the front and rear arms to one side of the column. This arrangement greatly simplifies work and reduces the time needed to position and remove the arms from under the vehicle. Furthermore, asymmetrical column placement allows for wider vehicle door opening. The lift is equipped with very long arms featuring a 3-section telescopic design. The shortest arm spread (650mm) allows for lifting small passenger cars. The maximum arm spread (1890mm) is essential for stable positioning and safe servicing of long delivery vans. The lift comes standard with a set of 80mm height spacers. These are necessary when servicing curtain-sided delivery vans and off-road vehicles lifted by the frame. The supports placed under the vehicle are screw-out and snap-on to the arms and spacers.

Automatic lift

The advantage of the automatic lift is convenient control of the lifting and lowering process with a lever, without the need to manually release the locks at each column. The solution reduces the handling time of the lift, because the employee does not have to go to the other side of the vehicle to unprotect the locks. The automatic AMT lever is not only used to lift and lower vehicles, but at the same time releases safety locks.

Security

The safety latch system activates automatically when lifting the car. In addition, the limit switch stops the lifting process when the lift reaches its maximum height. The limit switch is also installed in the lowest position of the lift trucks, thanks to which the overload of the hydraulic system has been reduced to a minimum. Additionally, the lift trolleys are equipped with rubber protection to protect the vehicle door from damage. The lift is also equipped with a warning beacon to inform the operator of the lift while the vehicle is being lowered. There is also an emergency switch on the control panel, which will allow you to immediately stop the lift in a dangerous situation.

Long-term durability

Precise execution of components not only translates into a longer life of the lift, but also guarantees better comfort of work. The special design of the electromagnetic locks guarantees quiet operation of the lift. The high quality of the materials used is a guarantee of reliable use of the lift for many years. All our lifts are equipped with reliable and trouble-free aluminum pumps. Mechanical elements (chain, actuator, slides, ropes) are secured with special grilles, mounted on the inside of each column.

Documents to UDT

All Techwar lifts have a valid CE certificate issued by a notified body in the European Union and meet the necessary requirements for registration with the Office of Technical Inspection. Together with the lift you receive two copies of the technical documentation. To submit the lift, construction documents, electrical documents and assembly protocol contained in the lift documentation are necessary.

Service

Mobile service performs all warranty repairs at the customer, in the place where the lift is installed. Thanks to this, our customers have full control over the course of repair or inspection, and above all, they do not waste time on disassembly, sending and reassembly of repaired or replaced components. We have all standardized parts for our lifts, consumables (lines, slides, rubber elements), as well as mechanical, hydraulic and electrical components.

Preparation of the substrate

Basic requirements for the preparation of the substrate for the installation of a two-column lift:

Minimum ground dimensions: length – 4000mm, width – 1000mm, depth – 300mm

The surface on which the lift will be placed should be homogeneous and flat.

Permissible level difference up to 1cm by 4m

Concrete B25/30
