Automobilio keltuvas Maltec pneumatinis 3500 kg 140-400 mm

Trumpai apie prekę

Prekė: Automobilio keltuvas Maltec pneumatinis 3500 kg 140-400 mm. Kategorija: Pneumatiniai keltuvai.

• Gamintojas: Maltec
• Modelis: Podnośnik Samochodowy Bałwanek 115102

▶ RELIABLE LIFTING CAPACITY UP TO 3500 KG

▶ MIN. LIFT HEIGHT 140 MM

▶ MAX. LIFT HEIGHT 400 MM

▶ WORKING PRESSURE 6-10 BAR

▶ FAST LIFTING

▶ 3 REINFORCED PNEUMATIC BELLOWS

▶ PILLOW DIAMETER 25,5 CM

▶ PNEUMATIC CONNECTION THREAD 1/4"

▶ STEEL CONSTRUCTION Q235

▶ NET WEIGHT OF THE LIFT 14,8 KG

▶ RUBBER RING INCLUDED

◾ PNEUMATIC JACK ◾ FOR CARS, SUVs, AND VANS ◾ FAST LIFTING ◾ STABLE CONSTRUCTION ◾ WORKSHOP AND GARAGE ◾ TRANSPORT WHEELS ◾

Now with a maximum lifting height of up to 400mm and a Rubber Pad Included - FREE! 🎁

Choose convenience and speed for your work - the MasterJack3500 is a pneumatic "snowman" type jack for daily use in the garage, workshop, and service center.

✅ THE MOST IMPORTANT FEATURES OF THE PRODUCT

• LIFTING CAPACITY 3500 KG - for passenger cars, SUVs, crossovers and light commercial vehicles.
• LIFTING RANGE 140-400 MM - convenient operation for vehicles with different clearances.
• FAST LIFTING - efficient lifting of the vehicle when connected to the compressor.
• WORKING PRESSURE 6-10 BAR - compatibility with standard workshop compressors.
• 3 REINFORCED PNEUMATIC BELLOWS - multi-layer rubber with nylon braid reinforcement.
• CUSHION DIAMETER 25,5 CM - large support area for stable operation.
• SAFETY VALVE 8 BAR - protects the pneumatic system against excessive pressure.
• CONNECTION THREAD 1/4" - standard connection to pneumatic system.
• Q235 STEEL CONSTRUCTION - solid, durable structural steel.
• POWDER PAINTING - increased surface resistance to daily use.
• TRANSPORT WHEELS - convenient movement of the lift around the garage or workshop.
• RUBBER RING INCLUDED - helps protect the vehicle's support point.
• WEIGHT 14,8 KG - stable structure that can be conveniently positioned under the car.

⚙ PARAMETERS:

• Brand: MalTec
• Model: MasterJack3500
• Type: pneumatic lift / snowman
• Maximum lifting capacity: 3500 kg (3,5 T)
• Minimum lifting height: 140 mm
• Maximum lifting height: 400 mm
• Working pressure: 6-10 bar
• Number of bellows: 3
• Housing bellows material: multilayer rubber with nylon braid reinforcement
• Pillow diameter: 25,5 cm
• Weight of lift: 14,8 kg
• Material of construction: steel Q235 powder coated
• Total length with handle: 102,5 cm
• Pneumatic connection thread: 1/4"
• Diameter of quick coupler connection: 1/4"
• Safety valve: 8 bar
• Diameter of rubber outer ring: 180 mm
• Diameter of rubber cap/plate: 100 mm
• Package dimensions: 43 x 37 x 17 cm

The MalTec MasterJack3500 pneumatic snowman lifter is a robust tool with a lifting capacity of up to 3,5 tons, which allows quick and convenient lifting of passenger cars and vans.

Thanks to the pneumatic mechanism, stable construction and low initial height, it is perfect for workshops, vulcanizations and home garages. Because manually waving the jack has its charm about the second wheel.

✅ LIFTING CAPACITY 3500 KG

MasterJack3500 allows you to lift vehicles weighing up to 3,5 tons, which is why it is perfect for wheel changes, suspension repairs, brake system work or chassis servicing.

👉 Ideal for handling:

• passenger cars
• SUVs
• crossovers
• light commercial vehicles

✅ LIFTING RANGE 140-400 MM

The minimum height of 140 mm makes it easy to slide the lift under the vehicle, and the maximum height of 400 mm allows you to comfortably lift the car for service work.

👉 SCOPE OF WORK:

• Minimum height: 140 mm
• Maximum height: 400 mm

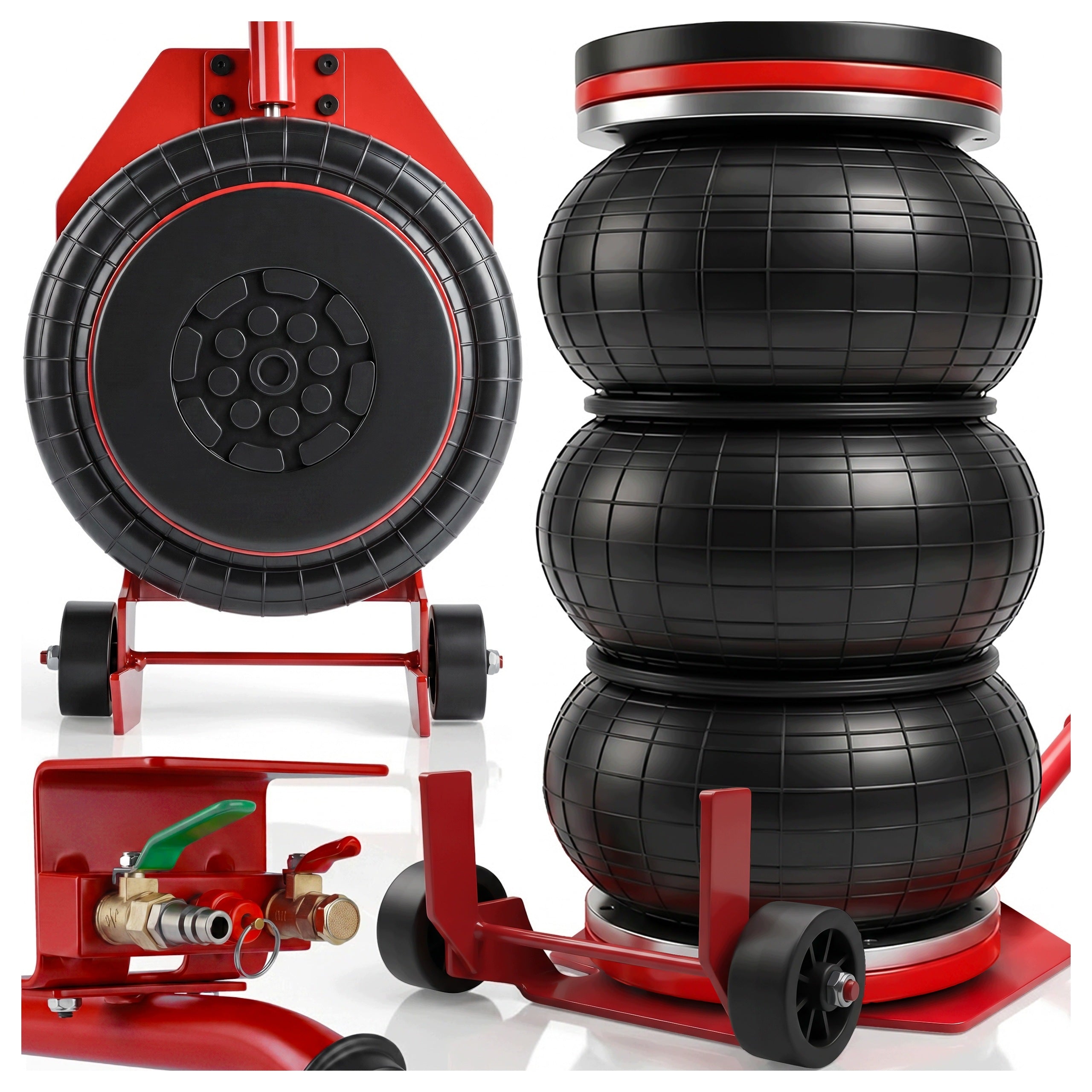

✅ 3 REINFORCED PNEUMATIC BELLOWS

The lift is equipped with three pneumatic bellows made of multilayer rubber reinforced with nylon braid, thanks to which they are resistant to intensive work under high pressure.

👉 Thanks to the three-bowl design, the lift offers:

• stable lifting
• large support area
• operating range from 140 to 400 mm

The large diameter of the bellows assembly 255 mm provides stable support when lifting the vehicle.

✅ RUBBER PROTECTIVE RING

The set includes a rubber protective ring with an outer diameter of 180 mm and a rubber overlay / plate with a diameter of 100 mm.

👉 The element helps to protect the vehicle support point and improves contact between the lift and the car.

✅ COOPERATION WITH COMPRESSOR

The lift operates at a pressure of 6-10 bar and has a pneumatic connection 1/4", making it suitable for standard workshop installations.

The control is carried out by means of valves at the handle, which allows you to conveniently control the lifting and lowering of the vehicle.

✅ SAFETY VALVE 8 BAR

The MasterJack3500 model has a safety valve 8 bar, which protects the system against excessive pressure.

👉 This is an important element increasing the safety of work with a pneumatic lift.

✅ SOLID STEEL Q235 AND POWDER COATING

The structure was made of steel Q235, and the surface was protected with powder painting.

Thanks to this, the lift is prepared for everyday work in the garage, workshop and service.

✅ MOBILE AND CONVENIENT TO USE

The lift weighs 14,8 kg and the transport wheels and handle make it easy to move and position under the vehicle.

👉 You do not have to carry the device - just drive it to the appropriate support point.

✅ CONTENTS OF THE SET

• Pneumatic lift MalTec MasterJack3500
• Rubber protective ring
• User manual in Polish, English and German
• Original packaging
