Automobilio įtampos matuoklis 0.8-100V

Trumpai apie prekę

Prekė: Automobilio įtampos matuoklis 0.8-100V. Kategorija: Diagnostikos testeriai ir sąsajos.

• Gamintojas: no brand
• Modelis: 6TL0693BKqWRFGH

Features:

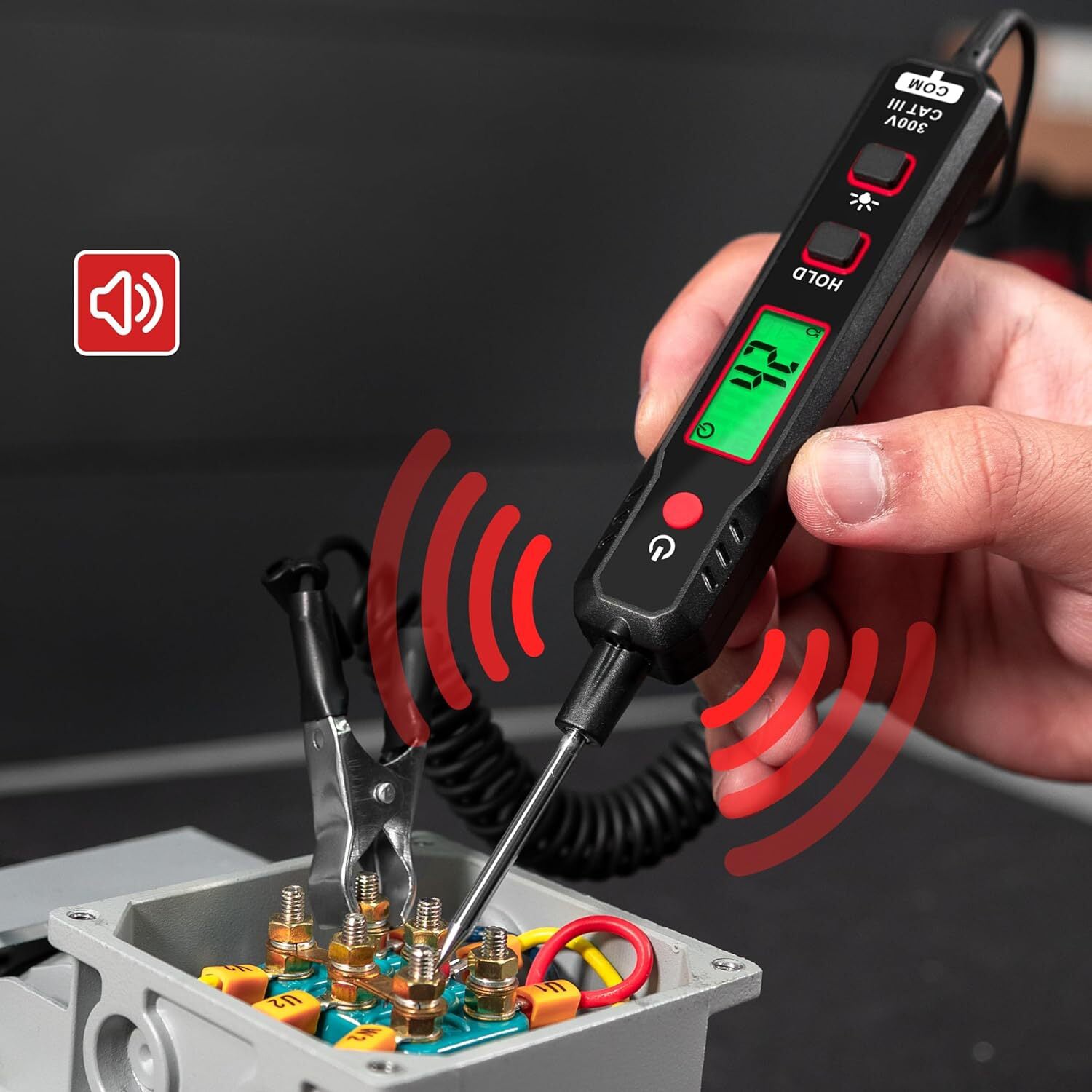

- In standard intelligent measurement mode, the probe automatically detects the current measurement signal (solid voltage, polarity, resistance and continuity) as long as it is in contact with the source or resistor.

- With a wide detection range from 0,8V to 100V DC, the probe is suitable for various vehicle circuit tests, such as testing fuses, cables, batteries and ACC systems, facilitating the detection of faults in the vehicle.

- Automatically detects positive and negative battery terminals, and the "-" sign in front of the display indicates a negative pole.

- The data retention button allows you to keep data on the screen unchanged and save it.

- Built-in buzzer reminds you of this when the resistance drops below 50 Ω. However, when the constant voltage exceeds 100 V, the message “OL” will be displayed on the screen.

- The long spring features a negative clamp and probe cover, allowing for safe use and storage separately.

- The probe has a short circuit protection cap. Featuring a backlit LCD display and flashlight, it provides clearer reading and precise operation in dark places. A short press of the lighting button turns the backlight on/off, and a long one – turns the flashlight on/off.

Technical data:

Color: Black

Operating temperature: 0 to 40°C

Operating Humidity: < 80%

DC voltage: 0,8 – 100 V

Resistance test: 20 000–2 μΩ

Circuit continuity test: 20 000/< 500

Types of sound alarm

Automatic shutdown: 15 min inactivity

Battery Required: AAA*1 battery

Display: LCD

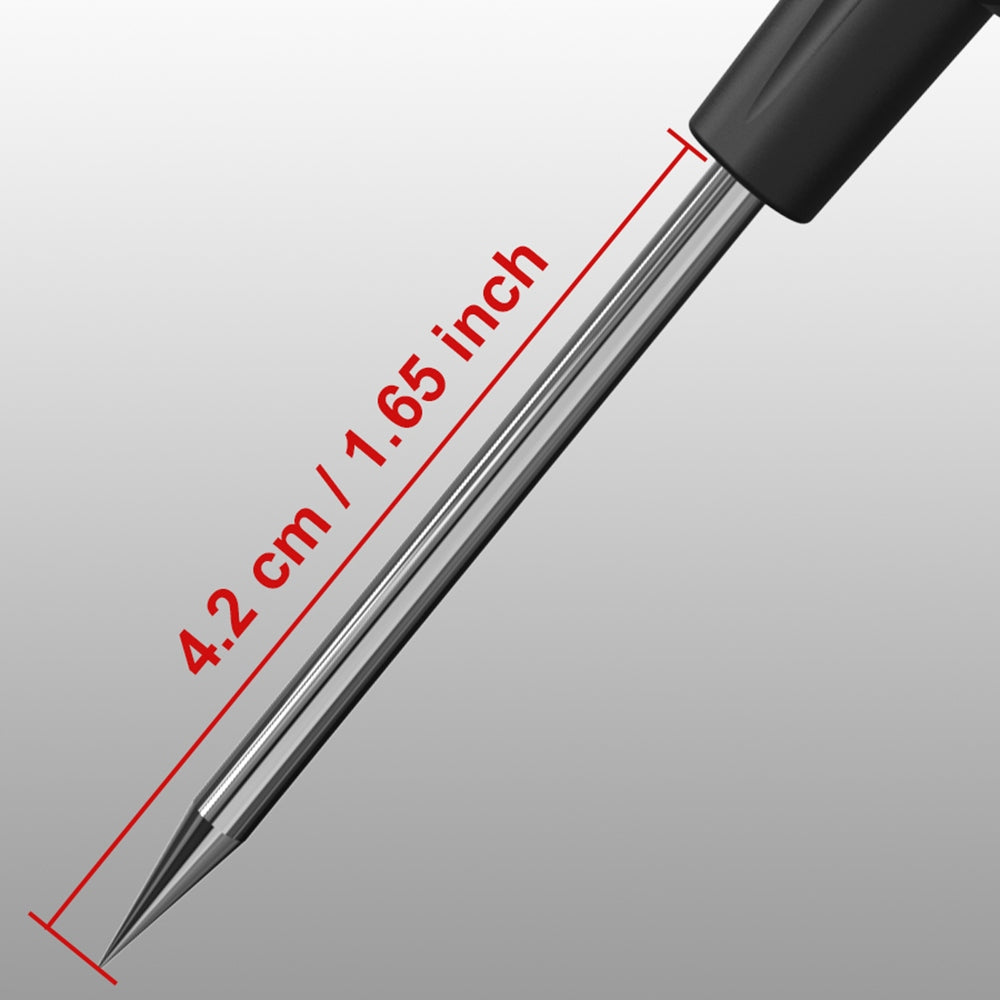

Length: 133 mm (main), probe (42 mm)

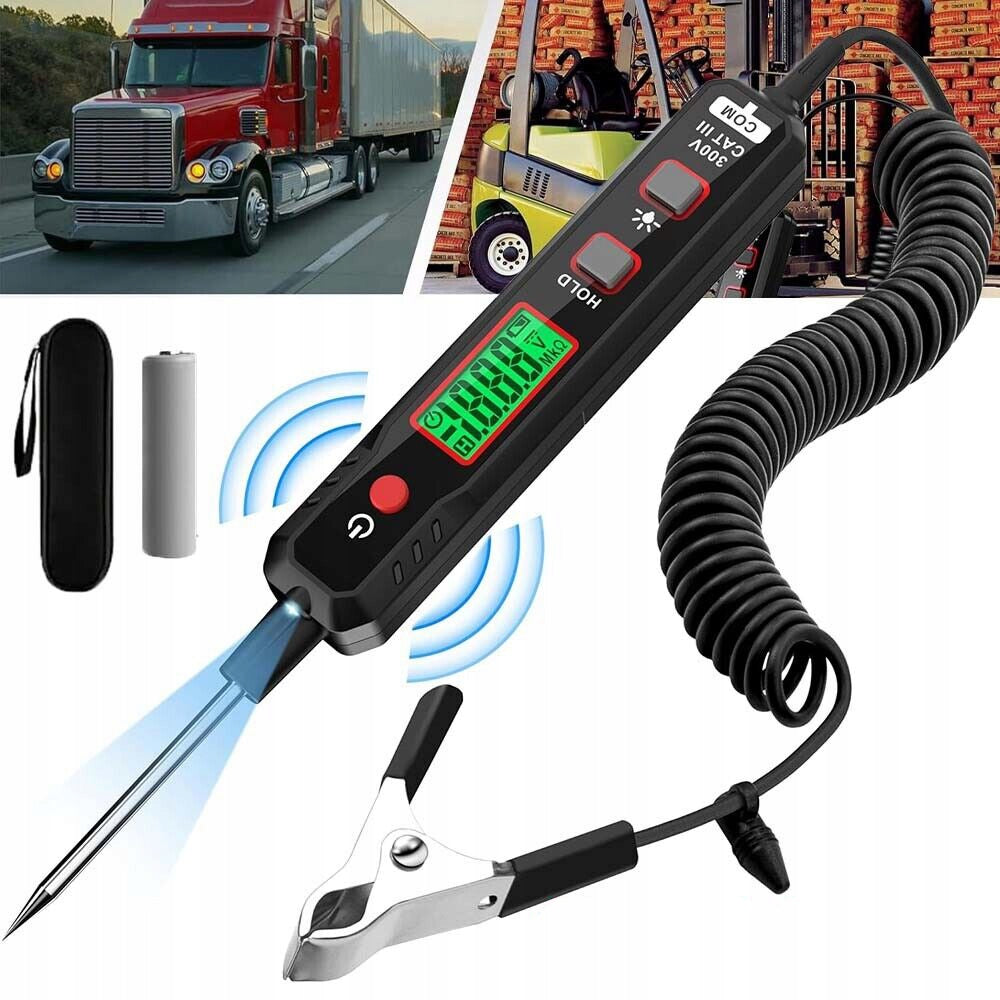

Contents of the pack:

1 x Voltage Tester

1 x AAA battery

1 x Case

1 x User Manual in English

1 x Colored Box
