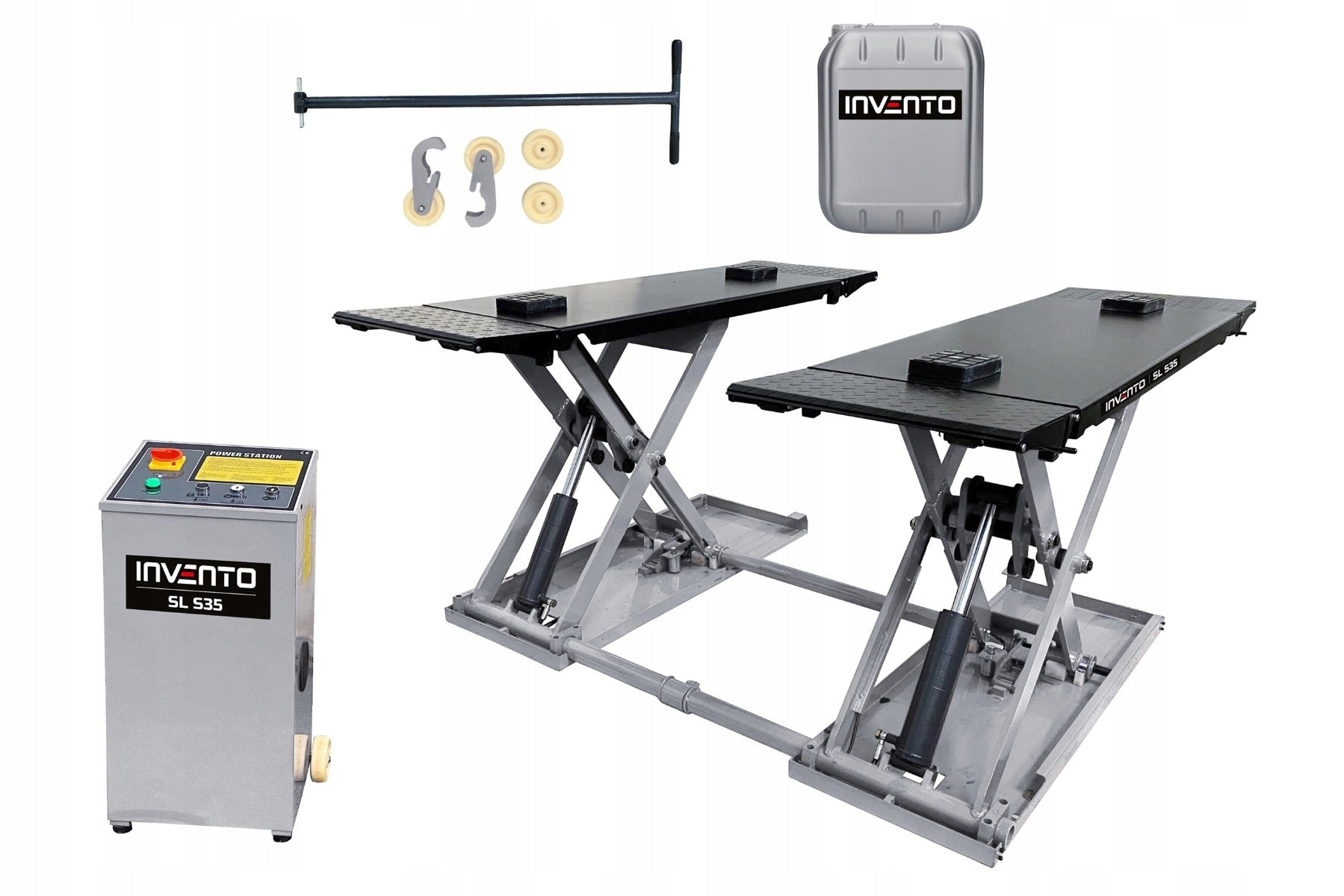

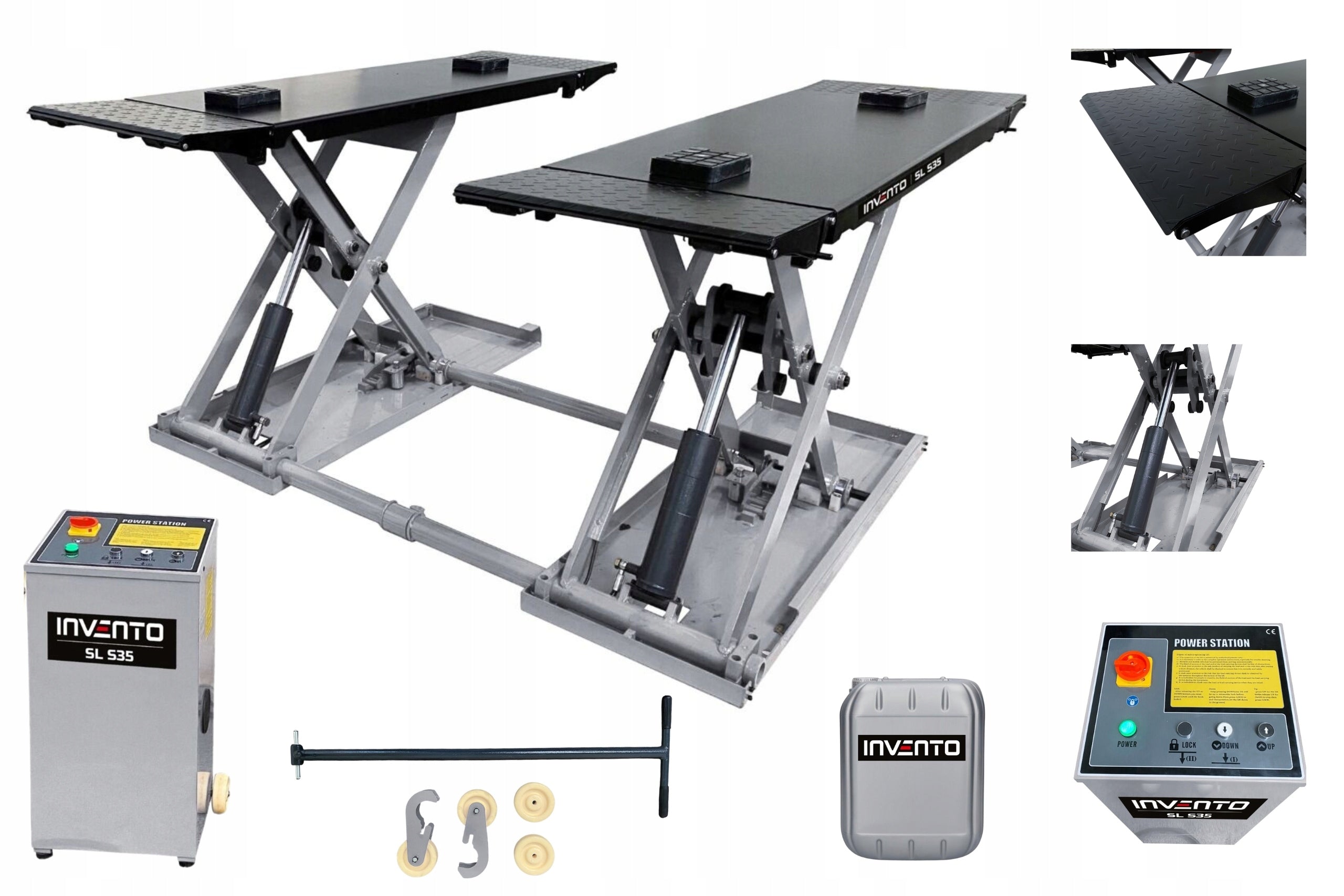

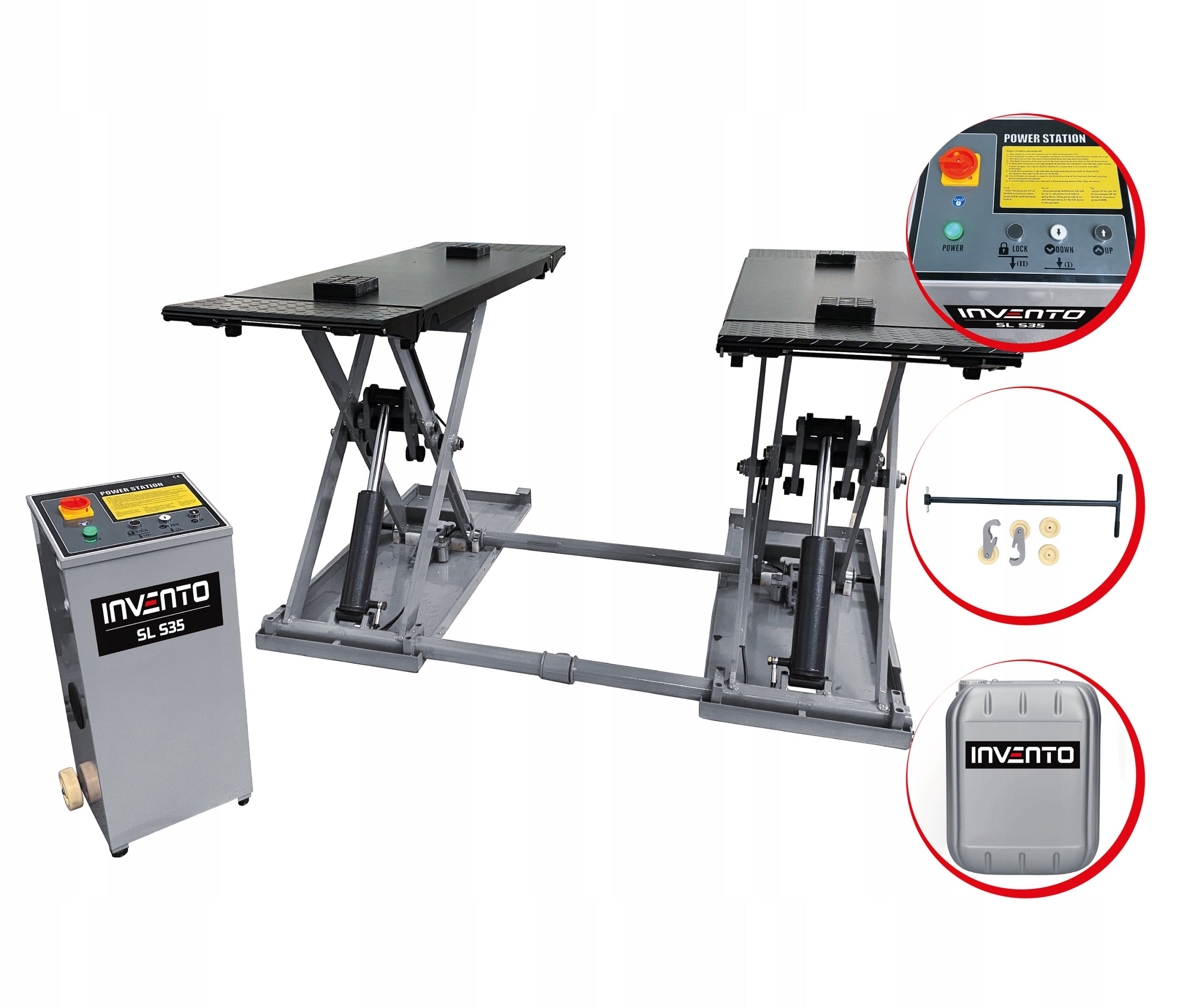

Automobilinis žirklinis keltuvas INVENTO SL S35 3,5T plačioms transporto priemonėms

Trumpai apie prekę

Prekė: Automobilinis žirklinis keltuvas INVENTO SL S35 3,5T plačioms transporto priemonėms. Kategorija: Žirkliniai keltuvai.

• Gamintojas: Invento
• Modelis: INVSLS35

Invento SL S35 is a floor lift designed for subliminal lifting vehicles with a weight of up to 3,5 tons to a height of 1 m. Ideally suited for tire and mechanical workshops facilitating the replacement of brake pads and discs.

Key information about the lift:

• 1 860 mm lift width makes it easier to work with wide vehicles!
• electromagnetic safety lock with automatic unlocking
• small dimensions of the device
• synchronized platform traffic
• adjustable platform length 1 400 mm - 1 940 mm
• mobile set for easy movement of the lift to another place
• Rubber pads included
• 10L hydraulic oil included!

The Invento SL S35 is equipped with the necessary safety features required by the CE documentation. This guarantees a long and safe work in the workshop.

The lift is designed to be installed in indoor, enclosed rooms without obstacles. Operating temperature in the range from -10°C to 40°C.

The price does not include assembly.

Preparation of the substrate:

The lift must be placed on a sufficiently durable concrete surface. The surface must be suitable for maintaining maximum pressure, even under adverse operating conditions. The surface must also be perfectly leveled.

Technical data:

• Leverage: 3 500 kg
• Lifting height: 1 000 mm
• Minimum height: 110 mm
• Length of Platform: 1 410 mm – 2 010 mm
• Platform width: 535 mm
• Distance between shears: 790 mm
• Total width: 1 860 mm
• Lifting time: 60 s
• Electrical power supply: 400V/50 Hz
• Power: 2,2 kW
