Trumpai apie prekę

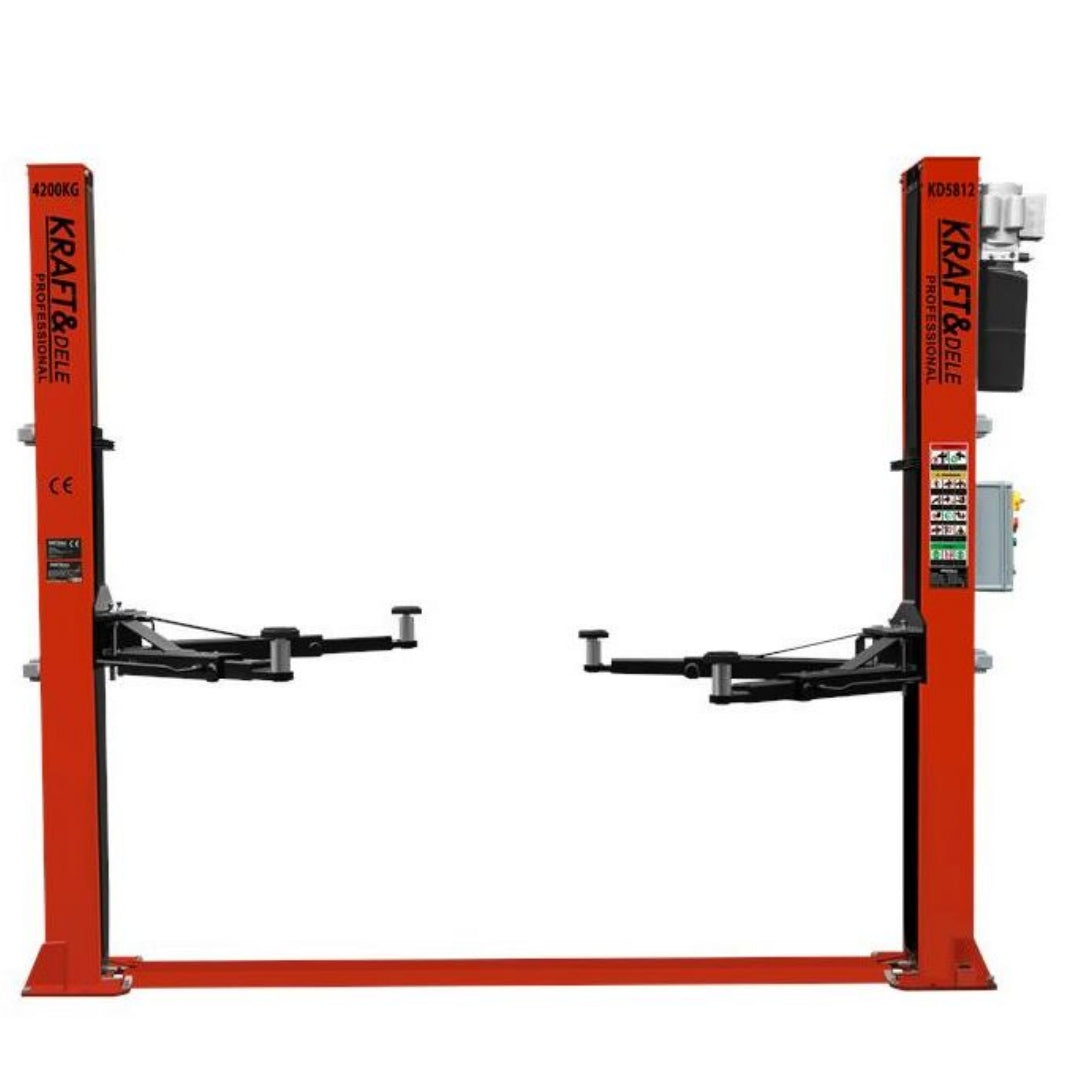

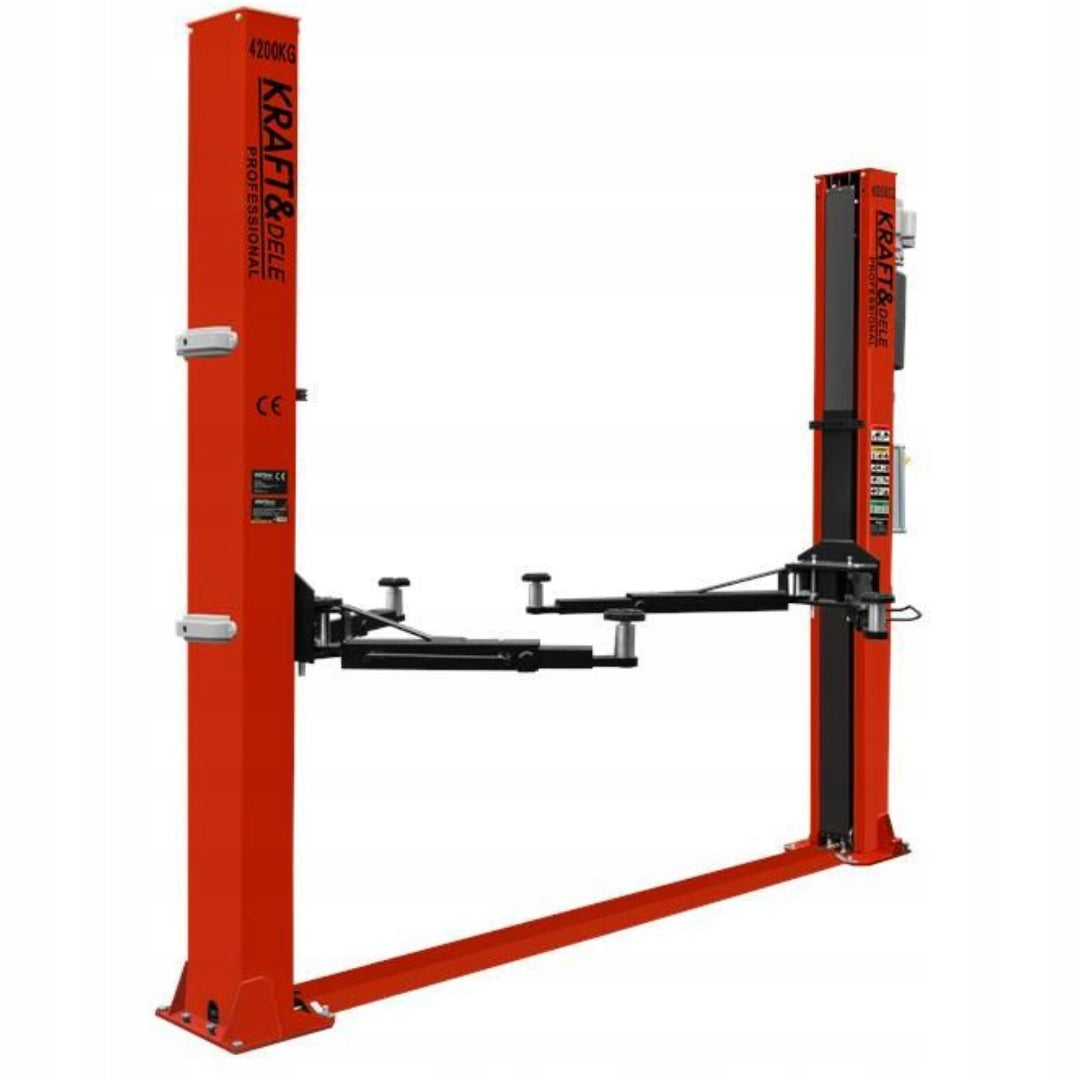

Prekė: Automobilinis keltuvas KRAFT&DELE, 2 kolonų, 4200 kg, 230 V, 1900 mm. Kategorija: Keltuvai stulpams.
- Gamintojas: Kraft&Dele
- Modelis: KD5813
The KD5813 is an efficient and robust solution for service stations, service stations and mechanical plants.

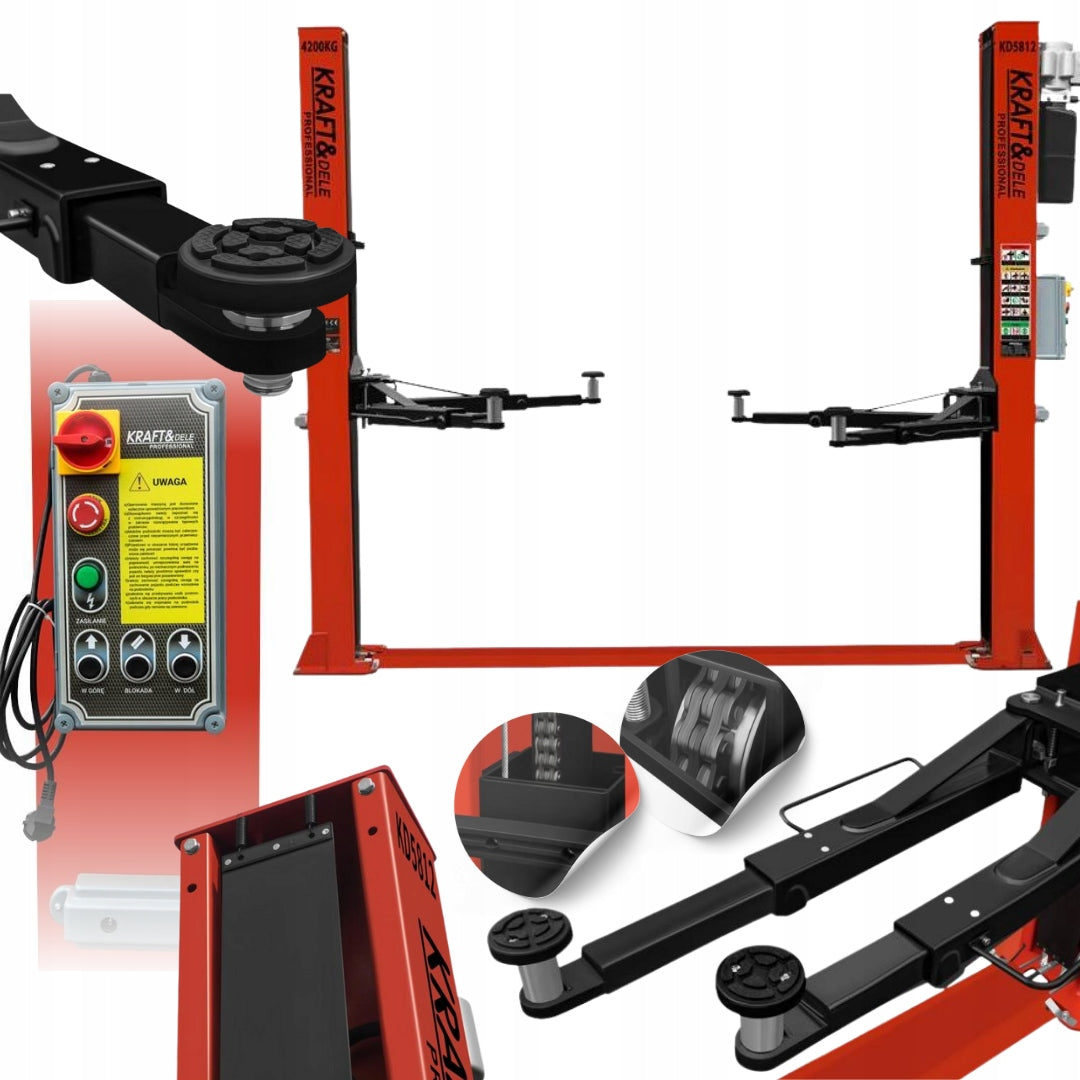

Automatic control and asymmetrical arms guarantee comfort and safety at work
Thanks to the asymmetrical arms with adjustable length and robust construction, the KD5813 guarantees quick access to the vehicle chassis and the convenience of maneuverability.
Protective curtains and door protection fenders eliminate the risk of accidental damage.
- Model: KD5813
- Power supply: 230V (1 phase)
- Maximum lifting capacity: 4200 kg
- Lifting height (max/min): 1900 mm / 110 mm
- Total width: 3420 mm
- Total height: 2826 mm
- Distance between poles: 2820 mm
- Arms: asymmetrical, 2-stage
- Shoulder length: 900 – 1400 mm (front) / 720 – 1050 mm (rear)
- Raising/lowering time: 55 s / 30 s
- Oil pressure: 20 MPa
- Oil tank capacity: 10 l
- Noise level: < 70 dB
- Protective Curtain: yes
- Bearing chain: 8 links
- Door fenders: yes
- Weight: 570 kg
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Kraft&Dele |
| Parametry | Manufacturer code | KD5813 |
| Parametry | EAN (GTIN) | 5903957014616 |
| Parametry | Number of columns | 2 |
| Parametry | Drive | electrohydraulic |
| Parametry | Column connection | bottom |
| Parametry | Overall width | 3420 mm |
| Parametry | Overall height | 2826 mm |
| Parametry | Power supply | 230 V |
| Parametry | Lifting capacity | 4200 kg |
| Parametry | Minimum lifting height | 110 mm |
| Parametry | Maximum lifting height | 1900 mm |
