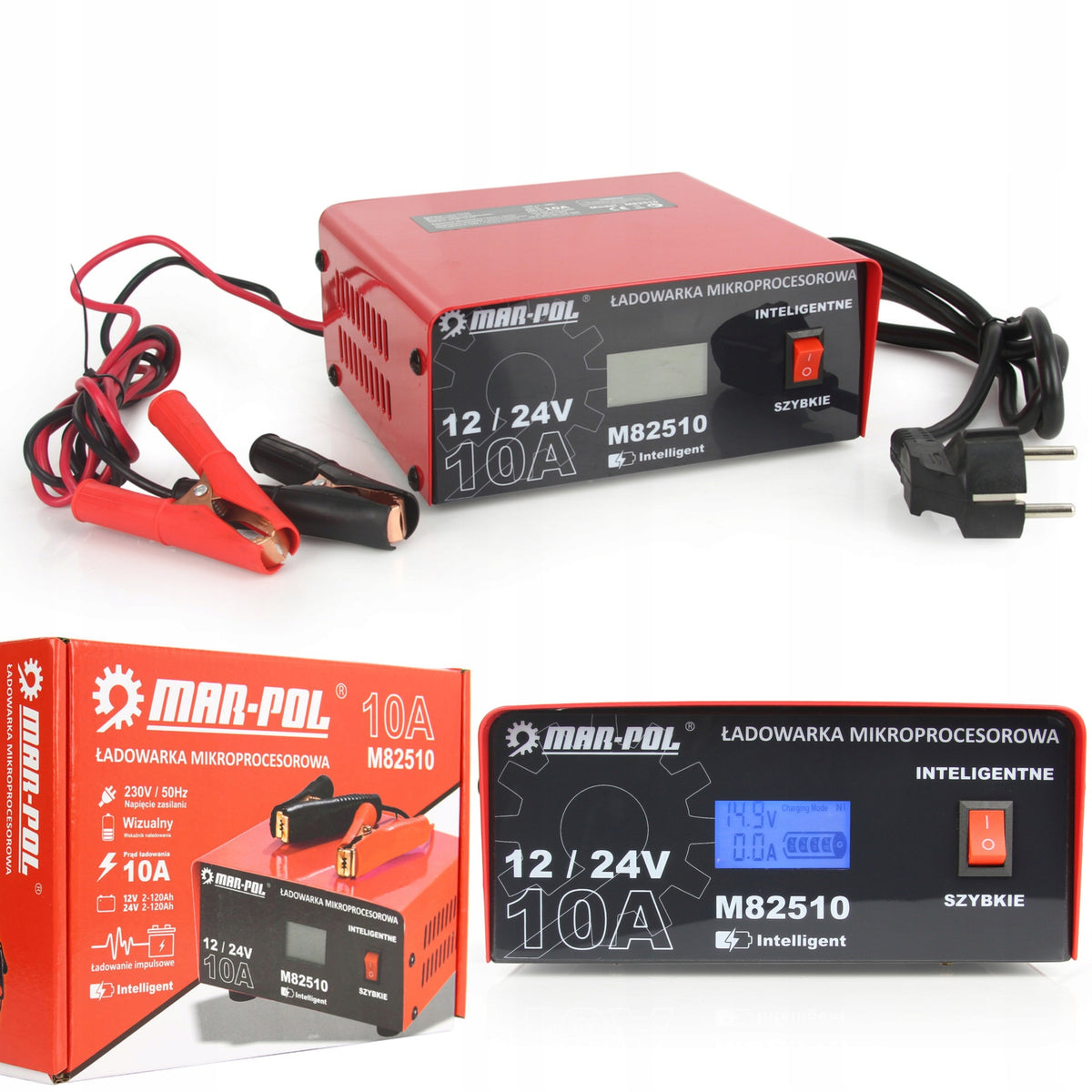

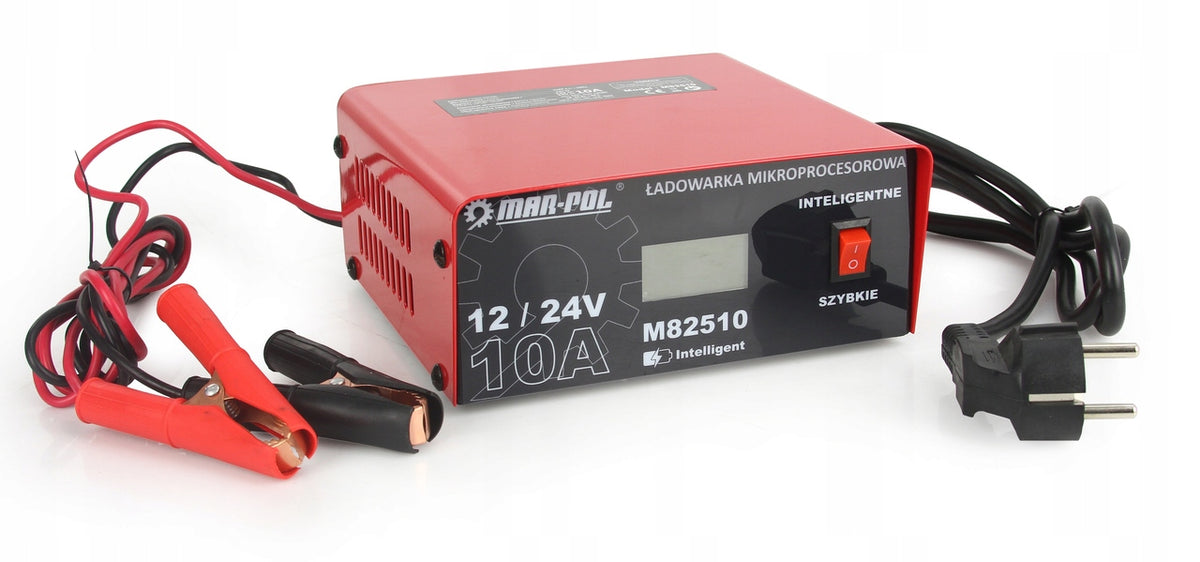

Automobilinis akumuliatoriaus įkroviklis 12/24V 10A

Trumpai apie prekę

Prekė: Automobilinis akumuliatoriaus įkroviklis 12/24V 10A. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Mar-Pol
• Modelis: M82510

The microprocessor rectifier by MAR-POL is a rectifier with a microprocessor control and control system in PWM (Pulse-Width Modulation) technology with the possibility of charging 12V and 24V batteries

and the possibility of choosing non-standard types of battery voltages, which intelligently and specifically selects the appropriate parameters, making the battery remanufactured and neglected.

Intelligent checking and improvement of battery condition is done through continuous system test and charging switching in 4 intelligent modes (Constant voltage; Constant current; DC charging; AC charging).

Intelligent charging (SMART), does not need the user's attention, because all programs controlling the battery charging process have been designed so that they do not require user intervention and adapted to the appropriate types of batteries and their rated voltages in order to bring them to the best condition.

PWM (Pulse-Width Modulation) – is a method of adjusting a current or voltage signal, with a constant amplitude and frequency, consisting in changing the signal filling. The PWM system powers the device directly or through a low-pass filter smoothing changes in electrical current and voltage.

Thanks to the large display with a percentage indication of battery charge we have the possibility of additional control of battery status. The large display informs about the current, charging mode and current battery voltage.

High charging efficiency with advanced control of charging processes allows to achieve efficiency of 98%, which makes it much better than traditional types of rectifiers.

• Brand: MAR-POL
• Rated Voltage: 230V / 50 Hz
• Supported Battery Voltages: 12V / 24V
• Charging Current: 0A - 10A
• Charging Process: 8-Stage (Intelligent)
• Operating Temperature: -20°C to 40°C
• Efficiency: 98%
• Supports Batteries: VRLA, WET, GEL, EFB, AGM
• Built-in MCU Controlled Fan
• Power Cord Length: 127 cm
• "+" and "-" Cable Length: 118 cm
• Dimensions: 17x16.5x7.5 cm

4 OPERATING MODES:

• Constant voltage: Using DC voltage to charge the battery to check that the charging current is not too high, reducing it during the process.

• Constant current: Indicates that the battery voltage is lower than the set voltage of the charger, but the charger will support the constant charging current of the battery.

• Direct current charging: When the battery voltage approaches the rated voltage and the charging current is already low to the set current, it will switch to floating charge modulation mode. This means that the battery is charged, but it is constantly checked for voltage drops and recharged automatically with alternating current.

• Alternating current charging: The mode will maintain the state of full charge of the battery.

• PHASE 1: DIAGNOSTICS: analysis of the battery, its state of charge and the correctness of connections between the battery and rectifier.
• PHASE 2: DESULPHURISATION: if the rectifier recognizes the sulphurized battery, the rectifier will use low voltage and high intensity pulsed current charging, which allows the sulphate to be removed from the battery plates, so that its initial capacity is restored.
• PHASE 3: ANALYSIS: checking whether the battery is not damaged and whether it can accept charging current - prevents charging the damaged battery.
• PHASE 4: SOFT START: if the battery is not damaged, a relatively low current charge (about 15%), gradually increasing its value, begins.
• PHASE 5: ESSENTIAL CHARGING: constant current maximum charging with a value automatically adjusted depending on the state of charge of the battery, until 80% of the battery charge is reached.
• PHASE 6: FINAL CHARGING: charging with decreasing current and constant voltage until 100% battery charge is achieved.
• PHASE 7: ANALYSIS: battery charge test lasting about 2 minutes – if the battery charge level does not decrease after stopping charging, the charging process is completed.
• PHASE 8: PULSING: monitoring the battery voltage and maintaining an optimal charge of 95-100% through charging current pulses.

APPLIED SAFETY SYSTEMS:

• Overvoltage protection - protection is activated when setting the charging voltage other than the detected parameter.

• Battery diagnostic function - the rectifier constantly monitors the condition of the battery.

• Protection against overheating of the charger: When the temperature of the charger exceeds 150°C, the charger will stop charging. When the temperature is reduced to 80°C, or the rectifier turns off for about 10 minutes, after this time you can charge the battery again.

• Circuit protection: When a short circuit occurs in the circuit, the operation will automatically stop. This will be manifested by a long beep. Just plug in the charger again correcting the clamps, then it will automatically charge again.

• Reverse connection protection: While the terminals (+/-) will be connected by mistake in reverse, the charger will alert you in the form of intermittent long beeps. After properly connecting the terminals, it will be recharged.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Model	M82510
Parametry	Brand	Mar-Pol
Parametry	Maximum amperage	10 A
Parametry	Product weight with unit packaging	1 kg
Parametry	EAN (GTIN)	5901969126624
