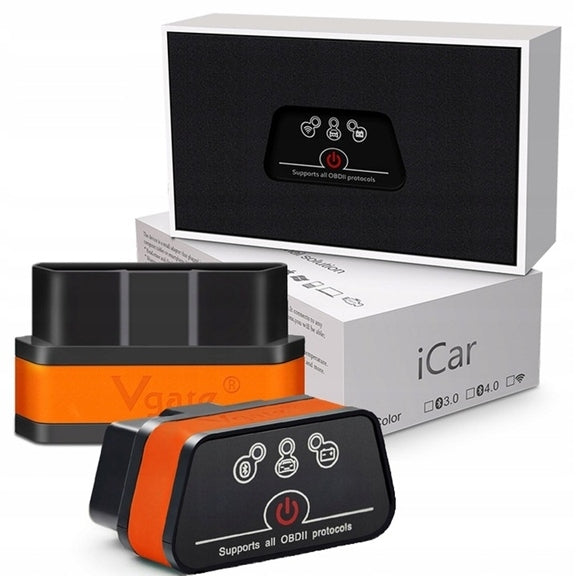

Automobilinė diagnostikos sąsaja BT 3.0 ELM327 Renault PyREN PyClip

Trumpai apie prekę

Prekė: Automobilinė diagnostikos sąsaja BT 3.0 ELM327 Renault PyREN PyClip. Kategorija: Diagnostiniai testeriai ir sąsajos.

• Gamintojas: no brand
• Modelis: INTERFEJS BT ELM327 RENAULT PyREN PyClip

The original version of ELM327 equipped with a micro controller type: STM32, connects to the ECU most passenger cars. The interface does not need to install drivers, just scan the QR code attached to the interface on the packaging, or download any application from the Google Play store.

The interface works with dedicated programs such as:

• PyREN and PyClip
• and also
• Torque
• Dash Command
• Scan-Master
• OBD Car Doctor
• and many other paid and free programs

It also works with programs for Windows m.in.

• Scan-Master
• ELM,Scantool,
• PCMScan,
• FiatEcuScan
• and many others.

The original version of ELM327 equipped with a micro controller type: STM32, connects to the ECU most passenger cars. The interface does not need to install drivers, just scan the QR code attached to the interface on the packaging, or download any application from the Google Play store.

The set includes:

• Interface
• Elegant cardboard packaging

Hardware requirements :

• Smartphone, tablet, laptop or other device with bluetooth module and Android operating system
• The interface works with free applications from the Google Play store such as: TORQUE Lite, Car Scanner, SCAN MASTER, PISTON, DashCommand and many more...

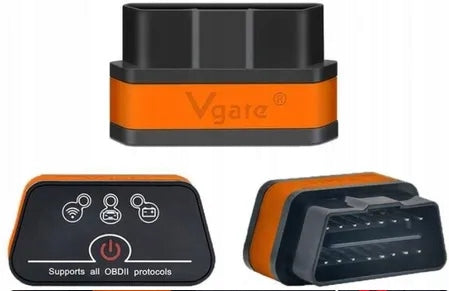

Product characteristics :

• Interface
• Support for 9 protocols
• Diagnostic connector 16 pins
• Dimensions: 48mm x 25mm x 32mm
• Diodes indicating connection
• Bluetooth Module 3.0
• Micro controller STM32

I also recommend buying a similar interface from our other auction that is built on the PIC18F25K80 micro controller it works with more cars in older years.

Will this interface work with my car?

The ELM327 interface is a universal device equipped and works with almost all models of vehicles with a standard OBDII connector.

Approximate dates of introduction of OBDII system in the world:

USA and Asia petrol and diesel engines: since 1996, Europe and others: since 2001 cars with gasoline engine, since 2003 cars with diesel engine.

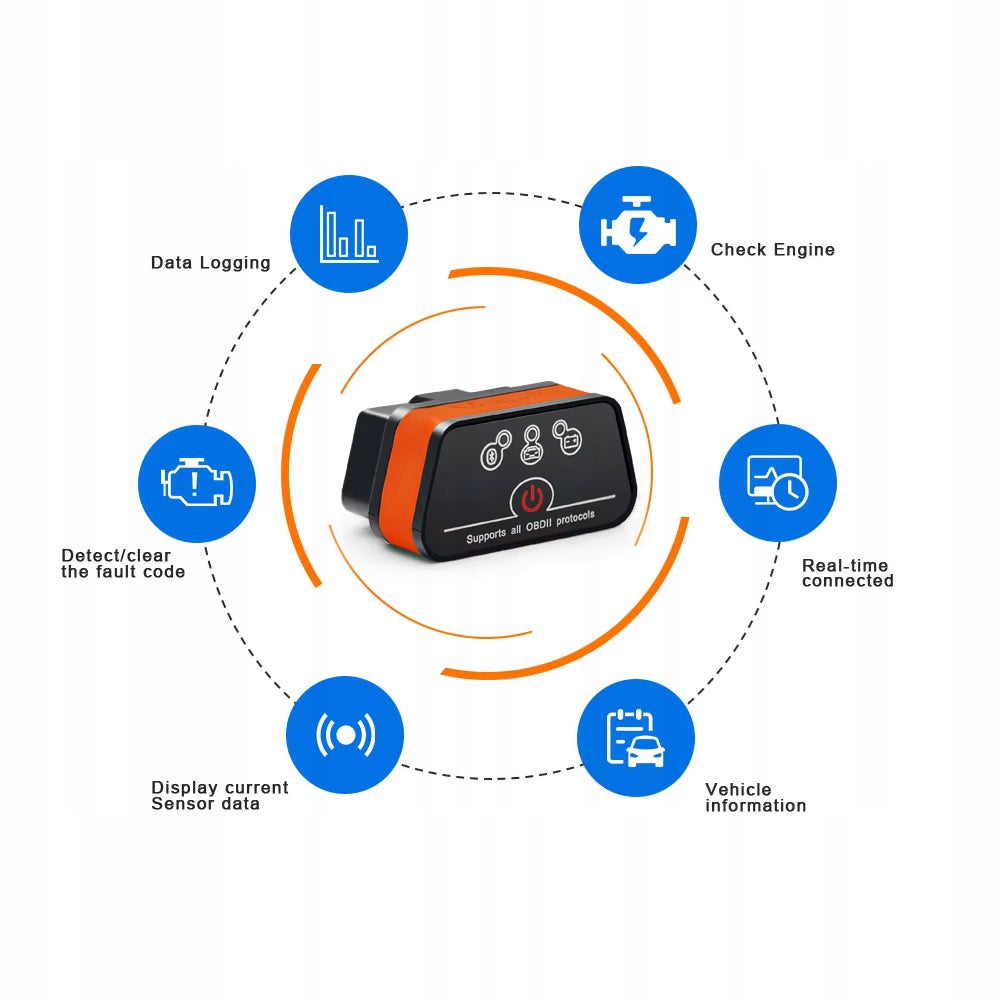

With this interface, you can:

• Read and clear OBD-II error codes - all protocols
• Turn off the CHECK ENGINE light
• Read pending error codes, even before the MIL light turns on
• Read recorded error codes that caused the MIL light to illuminate
• Read generic and manufacturer-specific error codes
• View FREEZE FRAMES
• Monitor engine operating parameters in real-time - LIVE DATA
• Read online parameters
• Check the meaning of error codes
• Measure engine power (HP)
• Measure parameters like 0-100 km/h acceleration time

This interface has the latest firmware version

CE and ROHS safety and quality certifications

The Elm 327 supports the following protocols:

J1850PWM (41.6 kbaud), J1850 VPW (10.4 kbaud), ISO 9141-2 (5 baud init, 10.4kbaud), I SO KWP (5 baud init, 10.4 kbaud), ISO KWP (fast init, 10.4kbaud), ISO CAN (11 bit ID, 500 kbaud), I SO CAN (29 bit ID, 500kbaud), ISO CAN (11 bit ID, 250 kbaud), ISO CAN (29 bit ID, 250 kbaud)

1. ELM327 micro BLUETOOTH OBD2 + CAN

2. Installation manual
