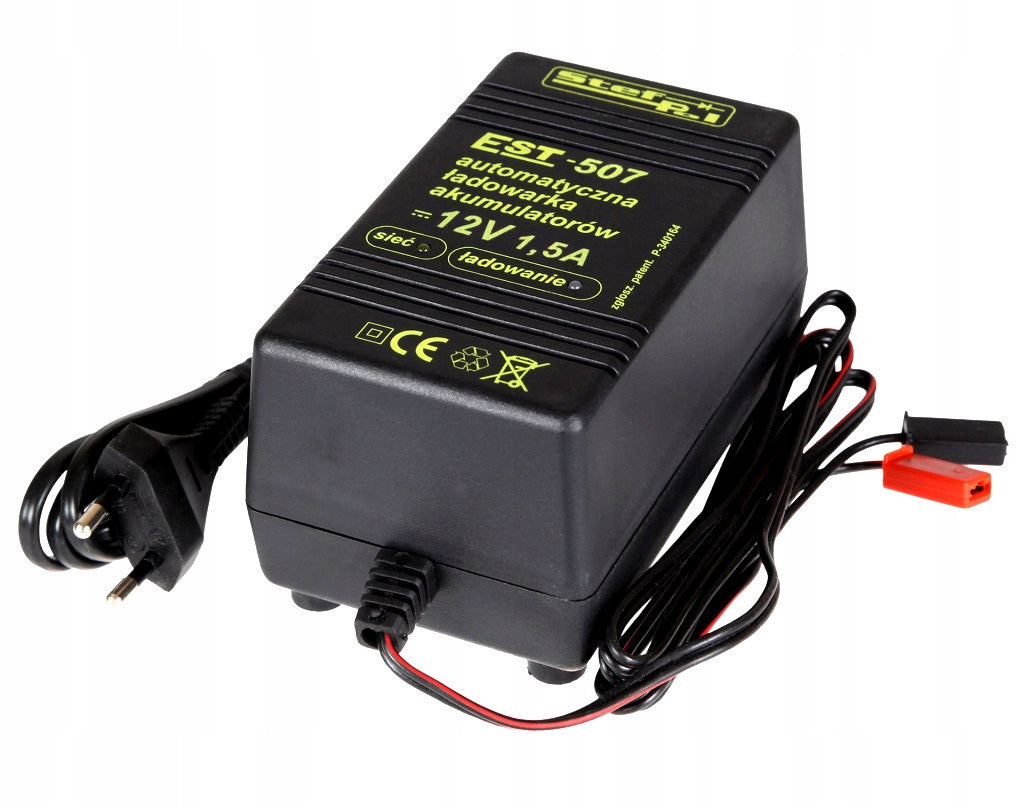

Automatinis įkroviklis EST-507 12V 1,5A, StefPol, Lenkija

Trumpai apie prekę

Prekė: Automatinis įkroviklis EST-507 12V 1,5A, StefPol, Lenkija. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Stef-Pol
• Modelis: EST-507

excellent quality impulse charger from the Polish manufacturer STEF-POL

EST - 507 12 V / 1,5 A

EST – 507 chargers are designed for self-charging maintenance-free, gel and lead-acid batteries with a voltage of 12 V and a capacity of 7 ÷ 17Ah

PPUH STEF-POL is a Polish company specializing in the production of high quality rectifiers and chargers since 1980. The EST series of chargers has a patent application in which the presented solutions ensure safe and accurate charging of the battery

AUTOMATIC CHARGERS EST

are designed to charge gel, motorcycle and acid batteries of all types

Automatic EST chargers are distinguished by the fact that after reaching the correct voltage by the battery, the system does not disconnect the charger, from this moment on the battery a constant voltage value measured directly at the poles of the battery is maintained

This is recommended primarily for motorcycles in winter. The rectifier intelligently charges and unloads as during normal operation of the vehicle.

The correct connection of the battery is indicated by a green light. After inserting the plug into the mains outlet, the yellow account (network) lights up and the light that has been shining so far in green will turn red, which means that the battery is discharged and the charging process begins.

They have protection against overheating of the rectifier and short circuit.

Charging the battery with this charger is divided into two phases.

In the first phase, the battery is charged with a constant current, in the second phase, charging is carried out at a constant voltage. The transition from phase I to phase II is automatic. This is the best method of charging batteries in accordance with the recommendations of battery manufacturers.

Automatic charger EST –507 has a voltage limiter (charging voltage limiter)

The charger is completely insensitive to shorting ends and reverse connection to the battery. The charger has a system to protect it from overheating.

In the case of overheating, it is turned off and then the light (charging) turns green. When cooled, the charger turns on automatically, the light (charging) turns red again.

NOTE: Before connecting the charger to the battery, expand the connection wires.

In order for the charger to start the charging process on a 12 V battery, there must be a voltage of at least 5V.

Charging with these chargers prevents intensive gassing of the battery, significantly extending its life, which meets the expectations of the user and the manufacturer

All chargers and rectifiers offered at our auctions are marked with the CE mark, which means that they meet all the requirements of the European Union in terms of safety

They have certificates issued by

ASSOCIATION OF POLISH ELECTRICIANS - RESEARCH OFFICE FOR ELECTRICIANS QUALITY

entitling to mark products with a safety mark:

• Technical data:
• 230 V~: Rated voltage of power supply U1
• 0,15 A: Rated current of power supply I1
• 200 mA: Rated current of WTA fuse
• 12 V: Rated output voltage U2
• 1,5 A: Rated output current I2
• 14,9 V: Voltage limiter
• II: Protection class
• 140 x 80 x 70: Dimensions in mm
• 1: Weight in kg
