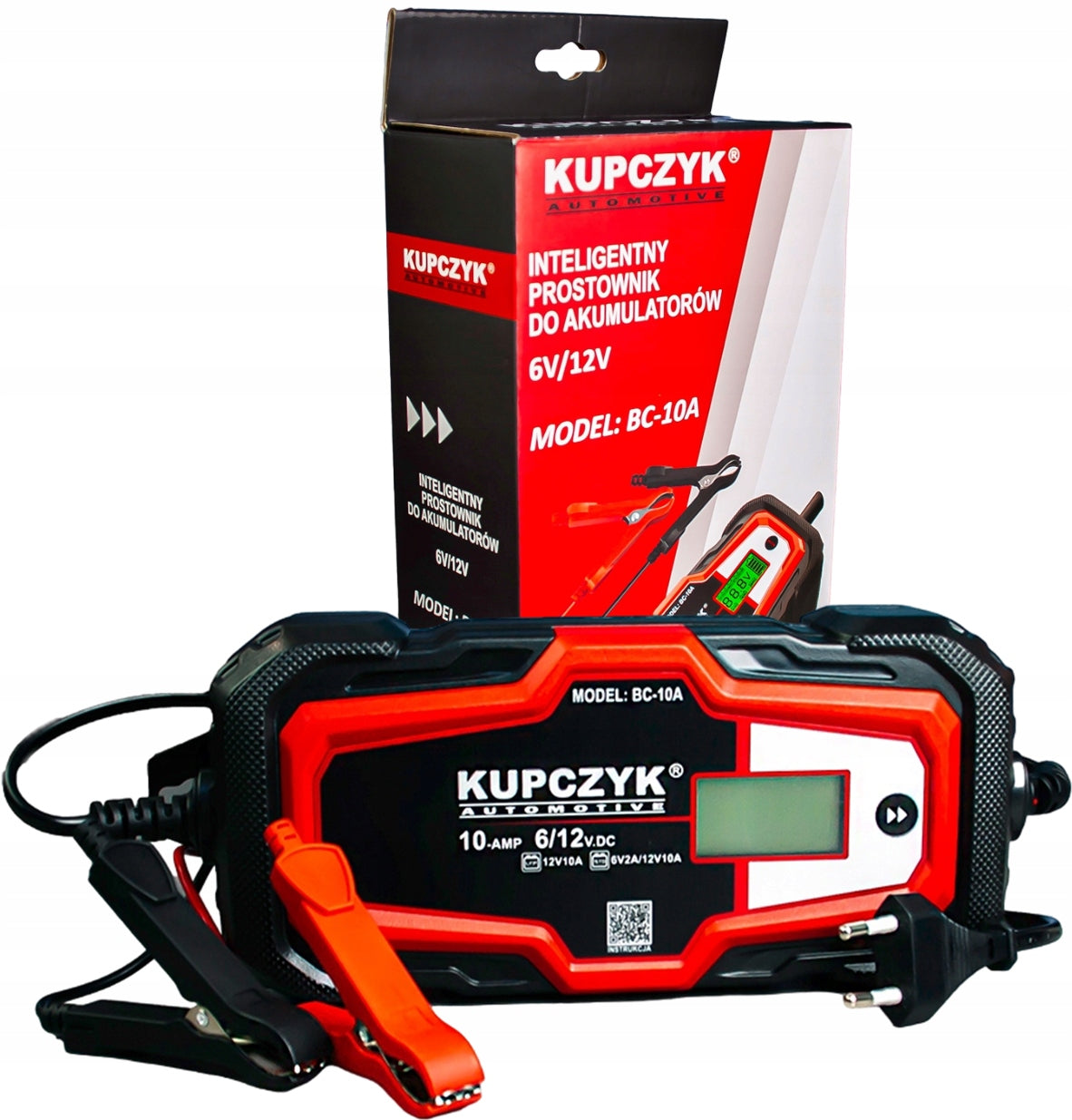

Automatinis akumuliatoriaus įkroviklis 6/12A 10A BC-10A

Trumpai apie prekę

Prekė: Automatinis akumuliatoriaus įkroviklis 6/12A 10A BC-10A. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Kupczyk

Modern microprocessor rectifier – reliable charging of your battery!

Intelligent rectifier for charging batteries

Model: BC-10A Kupczyk

Rectifier for charging 6 and 12 volt lead-acid (wet), gel, AGM, LFP batteries with capacities of 4-200Ah, which are used in motorcycles, passenger cars, etc.

• Single-phase power supply.
• Protection against short-circuit poles, overload and reverse polarity.
• Electronic display of charging current.
• The device has wires with a length of 1,5 m terminated with clamps.

10 degrees of charging

Fully automatic rectifier

Technical parameters:

• Supply Voltage: 230V
• Charging current voltage 6/12V
• Power 160W
• 6V Charging Current: 2A
• 12V Charging Current: 10A
• Maximum charging current: 10A
• Battery capacity 4-200 Ah
• Degree of protection: IP65
• Protection Class: II
• Weight 1 kg
• Dimensions 235x115x70
• Operating temperature: -20℃ to +40℃

Security Features:

• Short circuit protection
• Protection against overload
• Protection against reverse polarity
• Protection against overcharging
• Protection against overheating

Have you ever had a battery die and you couldn’t start your car? Don't worry! With our device, you'll be able to charge your battery efficiently.

Intelligent rectifier for charging batteries Kupczyk BC-10A

The product is designed to charge and maintain 6V/12V lead-acid batteries. The rectifier has been optimized to maintain the battery of your motorcycle or car when not in use for extended periods, such as winter. The rectifier is designed to charge 12V/24V LiFePO4, gel, AGM and standard lead-acid batteries.

Description of the panel:

• A - 12V STD: Charging standard lead-acid battery 12V to 14.5V.
• B - 12V AGM/C: Charging the 12V AGM battery or charging in winter mode at ambient temperatures from -20°C to +5°C.
• C - 12V M: Charging 12V battery for maintenance up to 14.4V.
• D - 12V LFP: Charge 12V LiFePO4 battery to 14.6V.
• E - Battery voltage indicator (bad/faulty battery, FUL/fully charged, Err/connected with reverse polarity or short-circuit). Indicator, shows charging progress, each bar represents about 20%.
• F - 6V STD: Suitable for charging small 6V to 7.5V batteries.
• G - Recond: Charging a deeply discharged 12V to 16.5V battery.
• H - SUPPLY Mode: Works as a 12V power supply.

Why choose our rectifier?

• Smart Charging – With its advanced microprocessor, the device automatically adjusts the charging voltage and current, which means that each type of battery is charged safely and efficiently.
• Battery protection – Forget about overcharging problems! Our rectifier will automatically turn off when it reaches full charge, taking care of the condition of your battery and preventing damage.
• Versatility – Supports a variety of battery types, including gel, AGM, and lead-acid, making it ideal for cars, motorcycles, boats, and other vehicles.
• Safety in the first place – Built-in protection against short circuit, reverse pole connection and overheating guarantee maximum safety of use.
• Ease of use – Intuitive display and simple operation make it easy for even novice users to quickly connect and use the device.
• Battery Maintenance Mode – Keep the battery fully operational even when you are not using the vehicle for extended periods of time. Our rectifier will automatically maintain the optimal level of charge, which will ensure its long service life.
• Voltage Maintenance – The rectifier provides constant voltage support, which protects the battery from excessive discharge, especially during prolonged vehicle standstill.

Don’t wait, take care of your batteries with our microprocessor rectifier – a reliable tool that saves you time and money while taking care of your peace of mind!

In the set you get:

• BC-10A rectifier
• Built-in wires with + and - terminals
• Rectifier holders to help place wires in its back
• Poland Operating instructions
