Automatikos HAT Mini praplėtimo modulis Raspberry namų automatikai

Trumpai apie prekę

Prekė: Automatikos HAT Mini praplėtimo modulis Raspberry namų automatikai. Kategorija: Priedai.

• Gamintojas: Pimoroni
• Modelis: PIM487

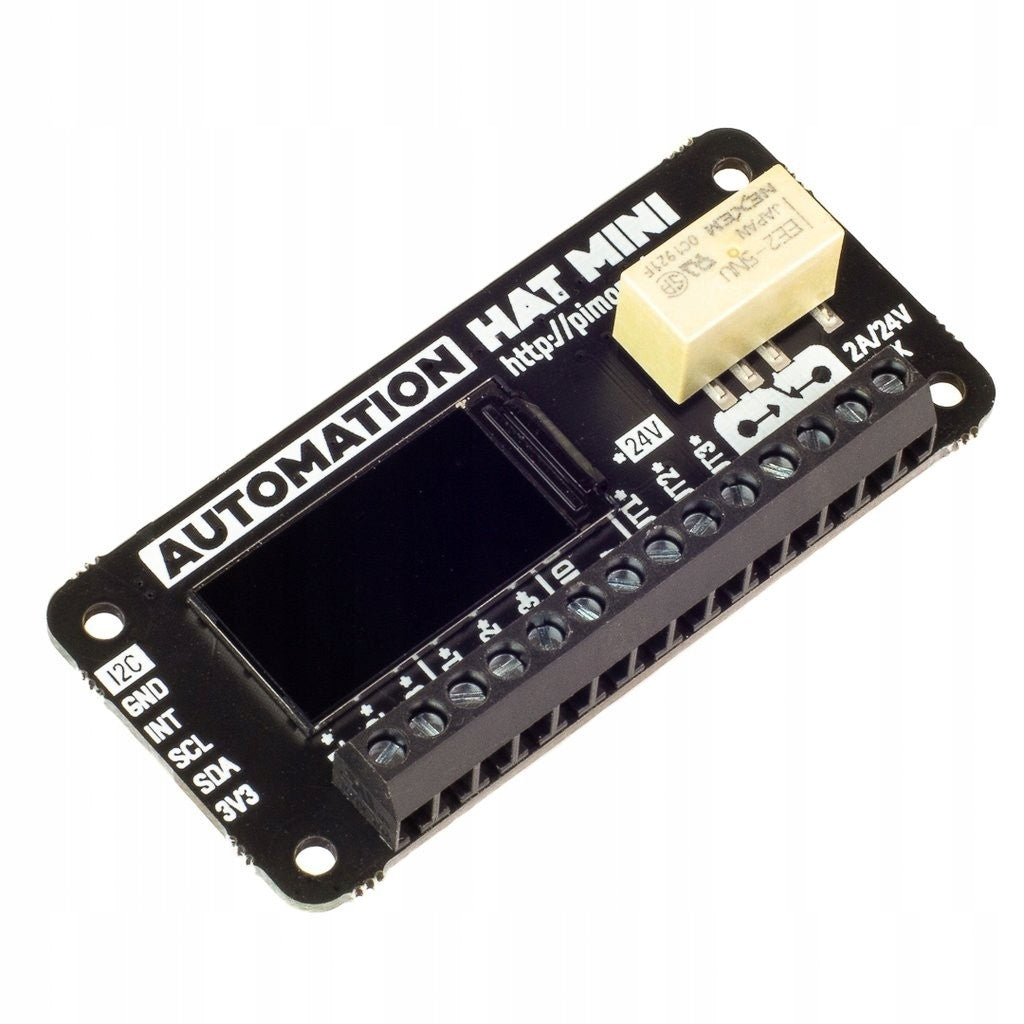

Automation HAT Mini - Home Automation Expansion Module for Raspberry Pi

Description

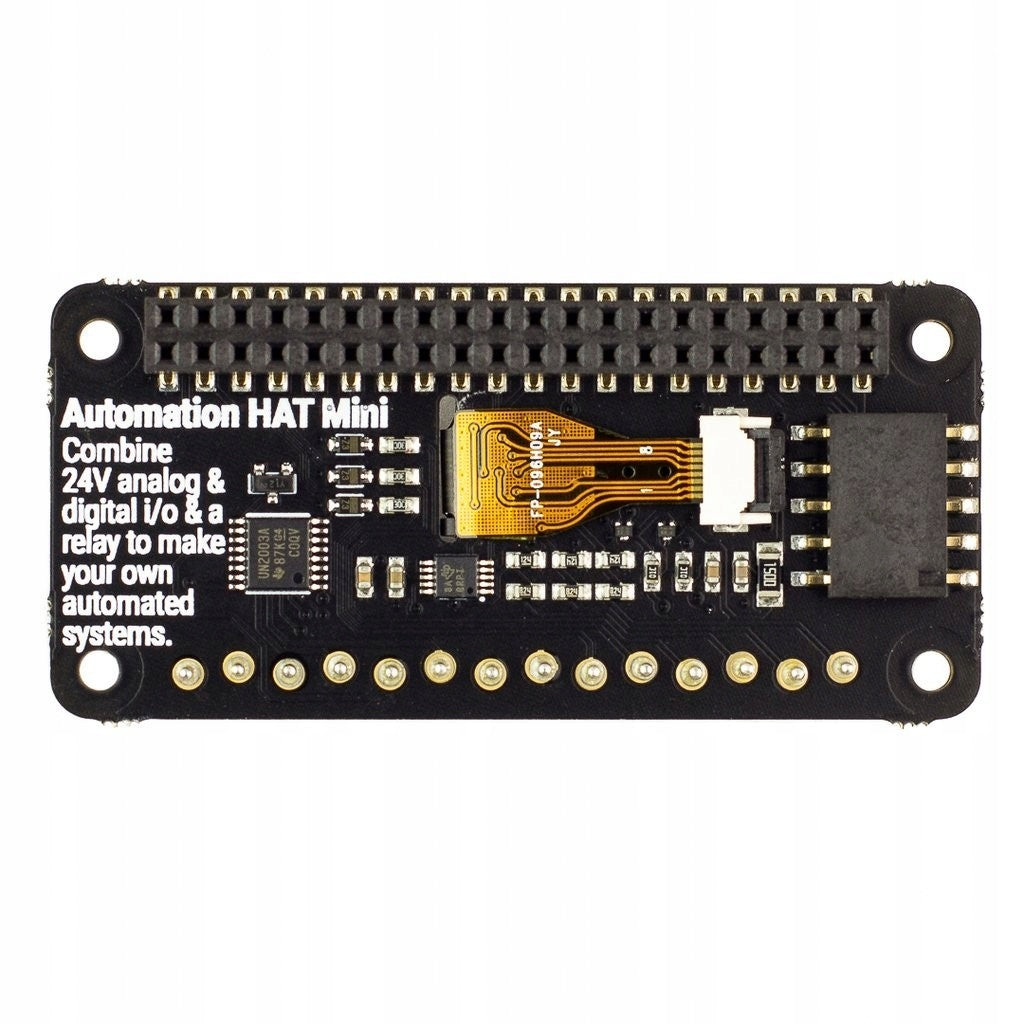

Expansion module designed for home automation projects compatible with Raspberry Pi. The board is equipped with a 24 V relay with a maximum switchable current of up to 2 A,three buffer inputs, three sink outputs and three analog inputs with an operating range of up to 24 V. Thanks to this, the module can work with devices operating with 12 V and 24 V voltages. Analog inputs are supported by a 12-bit ADC converter,and sink outputs can deliver current up to 500 mA (total for all three outputs). All inputs and outputs were output to screw connectors. In addition, a connector with an I2C interface is available for connecting sensors, and information about the current status of measurements can be displayed on the built-in LCD display. A dedicated Python library and a guide to help you get started with the board are available for the module.

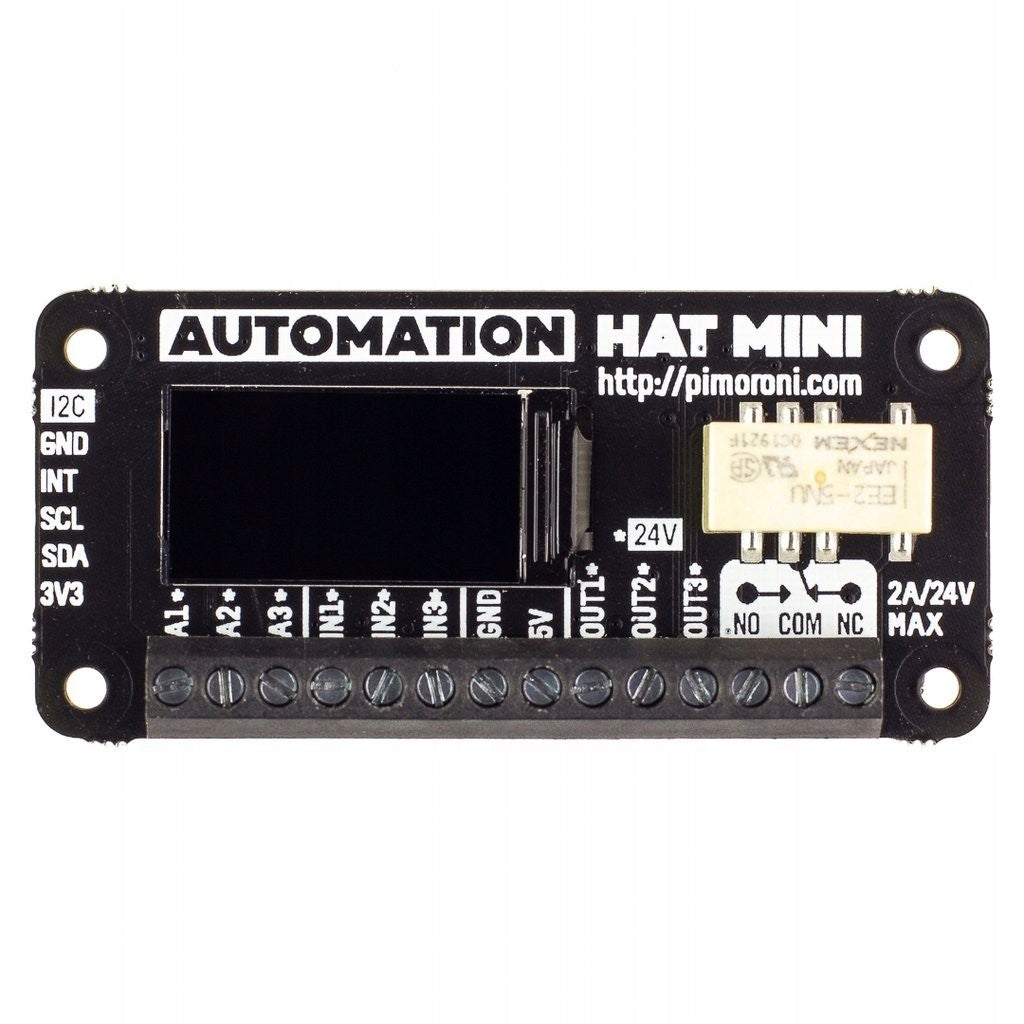

Properties

• Color LCD Display 0,96", 160x80 px
• 1 x 24 V @ 2 A relay (NC and NO terminals)
• 3 x 12-bit 0-24V analog input, ADS1015 ADC converter (accuracy ± 2%)
• 3 x 24 V buffer input
• 3 x 24 V sink output
• Screw terminals 3,5 mm
• Goldpin strip compatible with Pimoroni
• Tile in mini HAT format
• Compatible with all Raspberry Pi models with 40-pin connector
• The Python Library
• Dimensions: 65 x 30 x 16,8 mm
