Atbulinis vožtuvas su 20 mm sriegiu dvitilčiui keltuvui

Trumpai apie prekę

Prekė: Atbulinis vožtuvas su 20 mm sriegiu dvitilčiui keltuvui. Kategorija: Kėlimo įranga ir priedai.

• Gamintojas: ATH-Heinl
• Modelis: HVR6222.10

Reliable protection for your hydraulic system

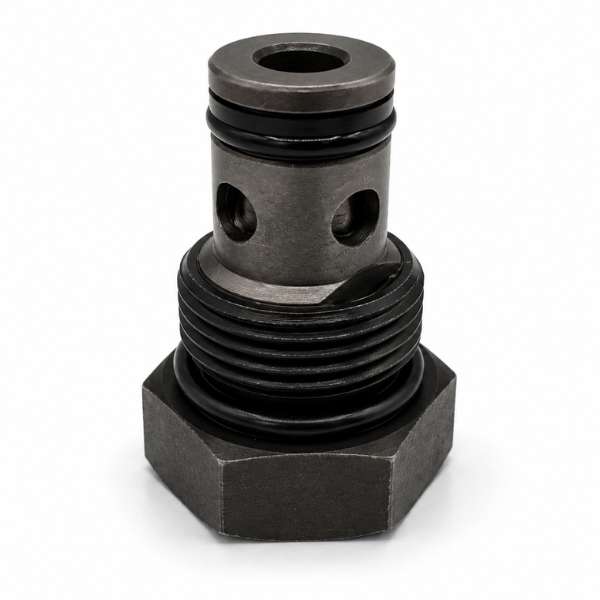

Check valve P-ZAWO-0007.10-pl is a precise hydraulic component, designed specifically for valve blocks in hydraulic jacks. Its main task is to ensure one-way oil flow, which prevents the working medium from retreating and guarantees the proper functioning of the entire system. The check valve is a key component of the valve block, which is responsible for regulating and controlling the flow of hydraulic oil in the lift.

Bet on safety and reliability - choose the check valve P-ZAWO-0007!

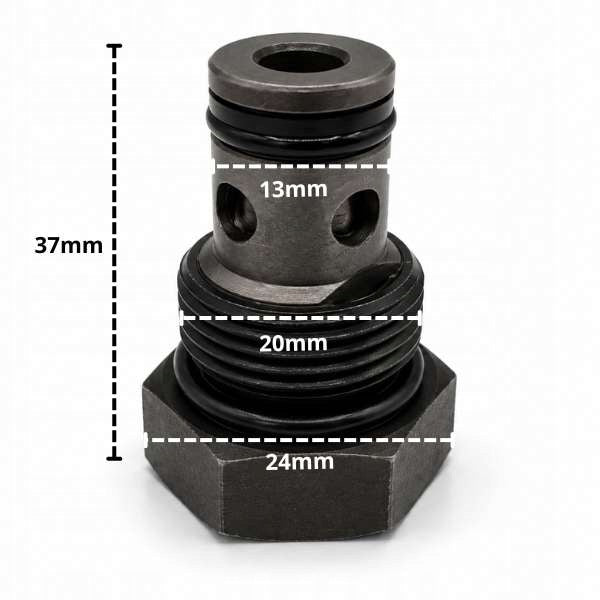

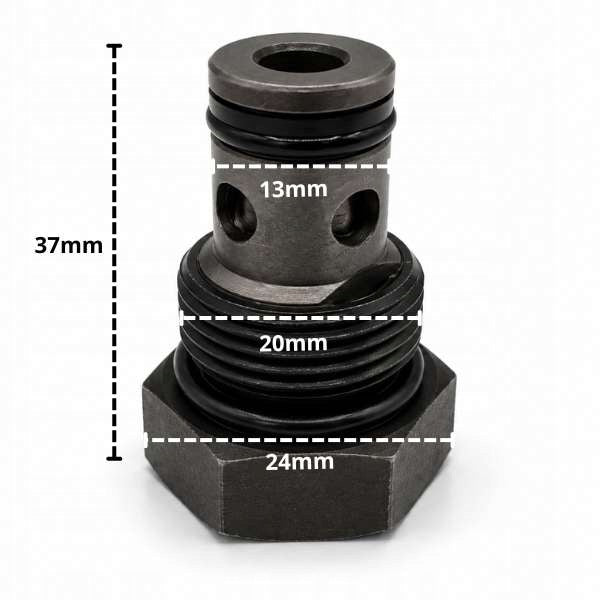

Exact dimensions of the product:

• Total height: 37 mm
• Diameter of mounting thread: 20 mm
• Mandrel diameter (parts with holes): 13 mm
• Hexagon size turnkey: 24 mm

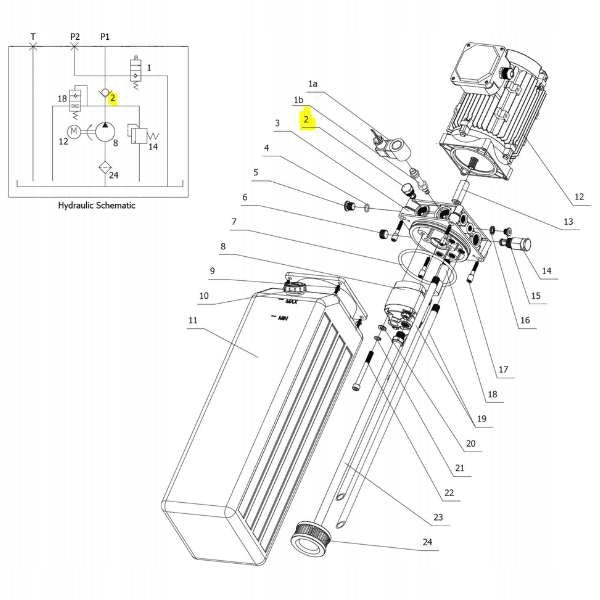

• Number from the assembly drawing: 2

• Number from the assembly drawing: 6

• Number from the assembly drawing: 8

Advantages:

• Precision of operation: Guarantees tightness and accurate control of oil flow
• Durability: Made of high quality materials, resistant to wear and corrosion
• Reliability: Protects the hydraulic system from damage caused by oil retreat
• Ease of installation: Simple and quick installation in the valve block

Specifications
