Alyvos slėgio matuoklis 12 ele.

Trumpai apie prekę

Prekė: Alyvos slėgio matuoklis 12 ele.. Kategorija: Slėgio jutikliai.

• Gamintojas: Kupczyk
• Modelis: KB111

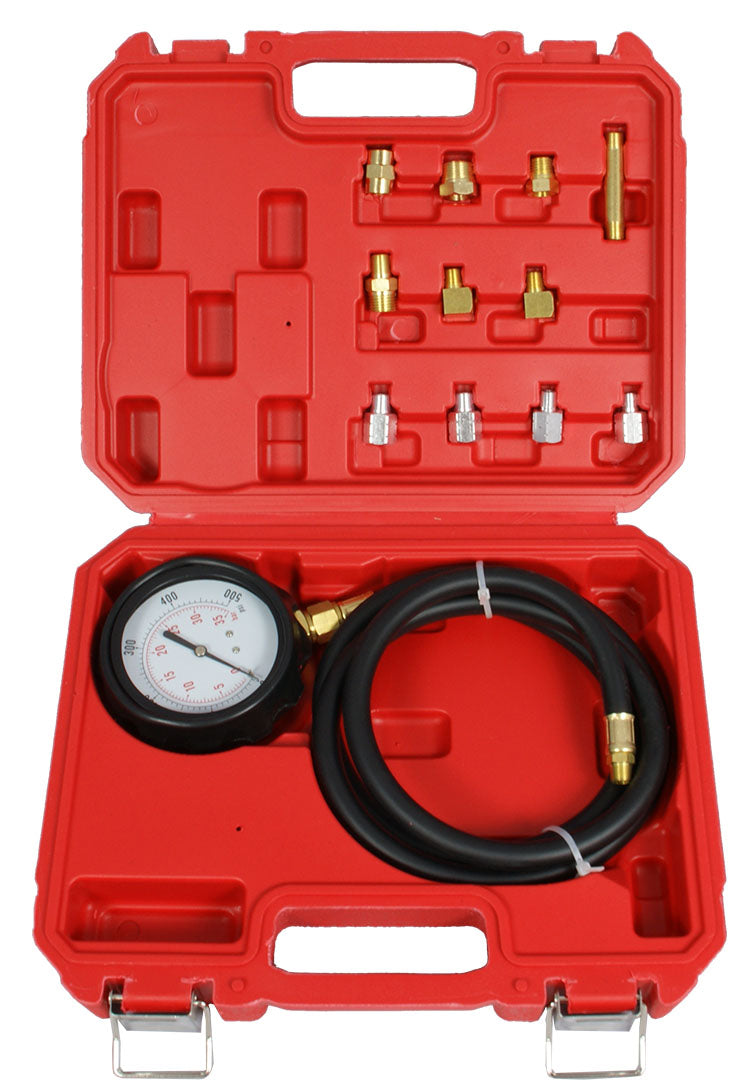

Sampler oil pressure gauge 12 elements

Kupczyk model: KB111

Set for pressure control in the engine oil system. It allows early discovery of a fault in the oil pump or contaminated oil channels. This may mean a reduction in the cost of general overhaul of a worn-out engine.

In pledge:

• 3" pressure gauge with precise graduation 0 to 500 psi (0 to 35 bar) and hose with 1/8" tip.

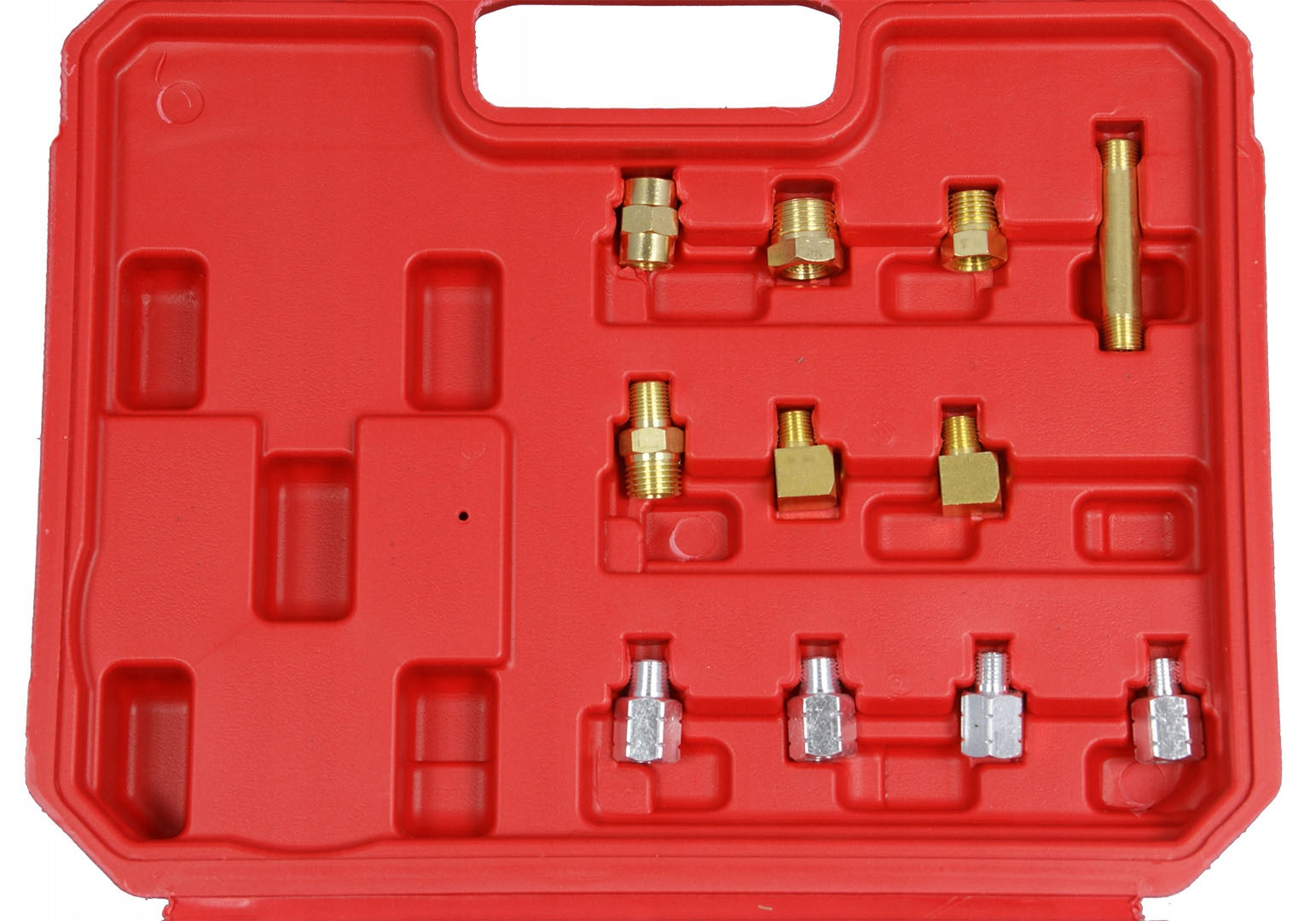

• 11 adapters for universal applications, which will allow you to choose the right tip.
• The set is in a handy suitcase,
• A long and flexible hose with a length of 140 cm will allow you to freely control the pressure gauge.
• The set is particularly suitable for gasoline engines of passenger cars and trucks.
• pressure gauge has a rubber cover which protects it from damage after a fall

Measuring end

No. 1- thread R 1/8”DIN 2999

Nr 2-gwint1/8"x27NPT

No. 3 - 1/4”x18 NPT thread

No. 4 - 3/8"x 20 UNF thread

No. 5 - 1/2”x 20 UNF thread

No. 6 - M10x1 thread - application: Audi, VW, Skoda, Volvo, Man, Alfa-Romeo,

Mercedes, Porsche,

No. 7 - M12 x 1,5 thread - application: Seat, Talbot Simca, Fiat, Citroen, BMW,

Autobianchi,

No. 8-thread M14 X 1,5 - application: Alfa-Romeo, Citroen, DAF, Fiat, Lada,

Lancia, Opel, Porsche, Renault, Saab, Seat, Volvo, Mercedes.

No. 9 - M16 X 1,5 thread - application: Peugeot, Citroen, Opel.

No. 10 - M18 x 1,5 thread - application: Volvo, Renault, Peugeot, Porsche, Talbot,

Citroen, Lancia. .

- Elbow adapter with quick release.

- Plastic cassette for safe transport and storage of the sampler.

It can be used in both gasoline and diesel engines.

Specifications
