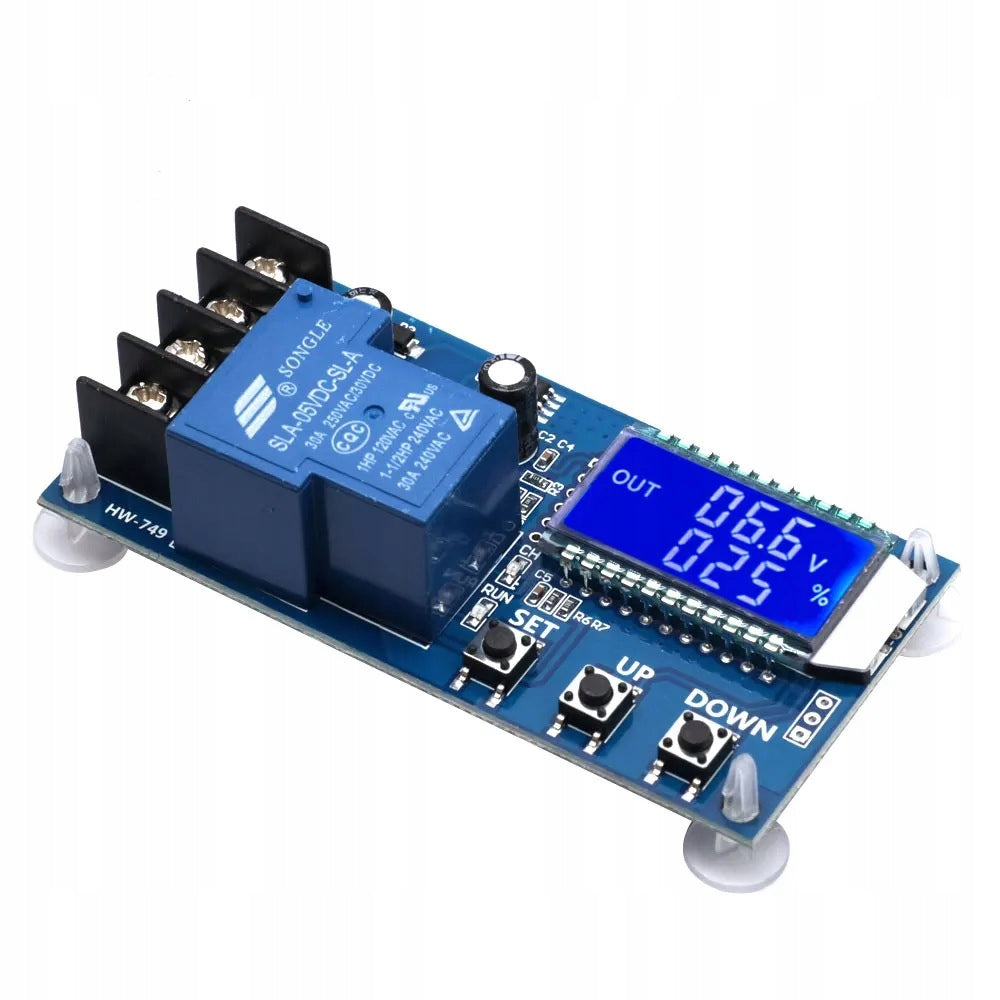

Akumuliatorių įkrovimo valdymo modulis 6–60 V 30 A

Trumpai apie prekę

Prekė: Akumuliatorių įkrovimo valdymo modulis 6–60 V 30 A. Kategorija: Baterijų įkrovikliai.

• Gamintojas: no brand
• Modelis: MODUŁ ZARZADZANIA ŁADOWANIEM AKUMULATORA 6-60V 10A

• OPERATING VOLTAGE RANGE 6-60V DC
• CHARGING SPEED 30 MAX INSTANTANEOUS
• CONTINUOUS CHARGING CURRENT 20 A
• FOR LARGER CURRENTS, YOU NEED TO REPLACE THE 5 V RELAY WITH A LARGER CONTACT CURRENT
• THE DEVICE IS ON STANDBY ON A RECHARGEABLE BATTERY
• VOLTMETER SHOWING THE VOLTAGE ON THE CHARGED BATTERY.
• ESTIMATED CHARGE LEVEL IN % (DIFFERENCE BETWEEN SET VOLTAGES BUT ONLY WHEN CHARGING)
• ADJUSTABLE SET CHARGING TIME
• DIMENSIONS APPROXIMATELY : 7.9 x 4.2 cm
• POSSIBILITY TO WORK WITH SOLAR CHARGERS

VERY EASY TO USE:

1. PRESS THE SET BUTTON FOR 5 SECONDS
2. SET UP/DOWN BUTTONS FOR VOLTAGE AND TIME
3. WITH A SHORT SINGLE PRESS OF THE SET WE CHANGE THE SETTING PARAMETER
4. WE APPROVE EVERYTHING AGAIN LONG 5 SEC. PRESSING THE SUN BUTTON
5. CHANGE THE IN / OUT MODE BY LONG PRESSING >5 sec. UP BUTTON

DISPLAY PARAMETERS

dn - LOWER VOLTAGE AT WHICH THE CHARGING WILL BE SWITCHED ON

UP - THE UPPER VOLTAGE AT WHICH THE TRANSMITTER WILL DETACH THE CHARGER

SET - CHARGING CYCLE TIME

IN - LOADING MODE!!!

OUT - DISCHARGE MODE!!!

*IT IS IMPORTANT TO CHOOSE THE RIGHT CHARGER FOR THE BATTERY SO AS NOT TO DAMAGE IT!!

THE DEVICE DOES NOT CHANGE THE VOLTAGE OR CURRENT VALUE ONLY TURNS ON AND OFF THE VOLTAGE FROM THE CONNECTED POWER SUPPLY / CHARGER

ACCORDING TO THE SET PARAMETERS dn/UP.

NOTE

DO NOT EXCEED THE PERMITTED CHARGING CURRENT!!

Specifications
