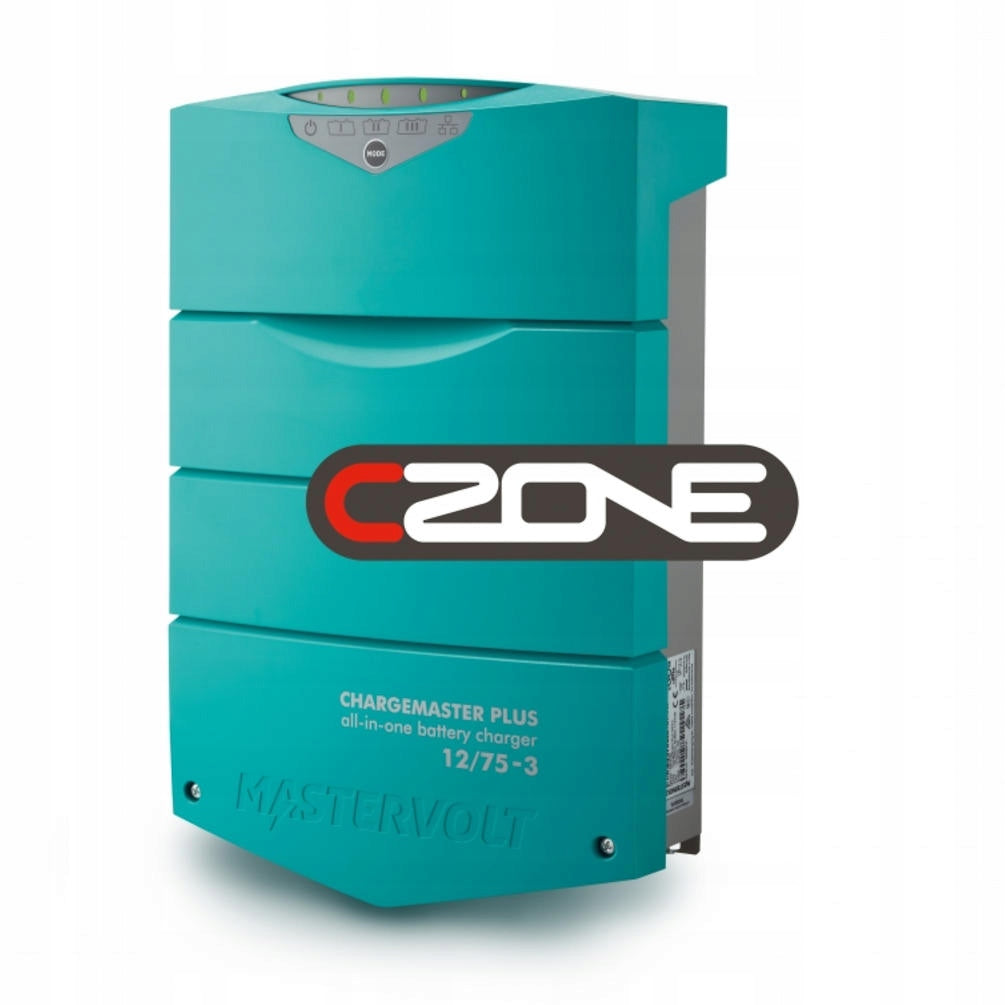

Akumuliatorių įkroviklis Mastervolt ChargeMaster Plus 12/75-3 CZone, 3 išėjimai

Trumpai apie prekę

Prekė: Akumuliatorių įkroviklis Mastervolt ChargeMaster Plus 12/75-3 CZone, 3 išėjimai. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Mastervolt
• Modelis: ChargeMaster Plus 12/75-3 CZone

12V battery charger with 3 outputs max 75A

Mastervolt ChargeMaster Plus 12/75-3 CZone [44310755]

ChargeMaster Plus 12/75-3 CZone [44310755]

Comprehensive "All-in-one" solution for faster and safer charging

ChargeMaster Plus is a new generation of battery chargers that integrates multiple functions into one device. By changing auxiliary chargers, battery insulators and VSRs, ChargeMaster Plus reduces system complexity and costs. Designed for versatility, it will virtually load any combination of two or three batteries in a fast and safe way and will work anywhere in the world.

With its most battery-friendly architecture, the ChargeMaster Plus can charge multiple batteries with different chemical specifications, dimensions, and voltages. All batteries are charged quickly and safely using the 3-step+ charging method. Other unique features include:

• Regeneration mode: automatically regenerates even completely discharged batteries.
• Priority charging: Redirect the available power to the most discharged battery to charge it faster.
• Smart Input: Charge all three batteries from a single alternator for continuous charging on the fly.

Global charging

ChargeMaster Plus can handle AC voltages and frequencies found around the world. Resistant to high voltage fluctuations and high temperatures, it can handle demanding environments. Designed for marine and mobile applications, ChargeMaster Plus is CE, ABYC, UL, SAE, CEC/DOE and RCM/C-Tick compliant.

Simplicity of the system

These days, the tooling has to speak for itself. ChargeMaster Plus displays the charging phase of all three outputs in a way that is easy to understand. Reinforced and ergonomic connections save installation time. The integrated VSR eliminates the need for additional components and ensures that the energy of the alternators is transferred to the battery.

Powerful Connections

In modern applications, all components work together. CAN-based MasterBus allows the charger to communicate with displays, shunts and power systems, including communication standards such as CZone®, NMEA and CANopen. ChargeMaster Plus can work as a power source for delicate communication equipment, or during the construction phase of the yacht.

Features and Benefits:

• Multicharger with two outputs, one input/output, DC-DC converter, current limiter and VSR.
• It supports lithium-ion, gel or AGM batteries at once, as well as large or small battery banks on a single battery charger.
• Charges several batteries at the same time.
• Extended specifications: offers 20% more output at 14.4 V and 80% power charging at 60 °C.
• Safe charging: Quickly recognizes the charging status to extend battery life.
• Very wide operating range 80-275 V AC, 35-70 Hz.
• Compact, easy to connect and quick to install.

Technical specification

Communication & monitoring

Communication interfaces

MasterBus, CZone, NMEA

General specification

Nominal voltage output: 12 V

Max. charging current per output: 75 A

Output voltage Smart In-/Output: 12 V

Output current Smart In-/Output: 5-40 A (adjustable)

Input current Smart In-/Output: max. 40 A

Max. AC current (230 V / 120 V): 6.5 A / 13 A

Total charging current: 75 A at 14.4 V

Number of battery banks: 3 (max.)

Battery Capacity Range: 320-800 Ah

Nominal input voltage: 120/230 V (80-275 V) 50/60 Hz

AC connection: screw terminals, suitable for 6 mm²²

Power supply mode: yes

Galvanic insulation: yes

Display/Readings: LED Display

Dimensions, H. x W x depth: 384 x 250 x 127 mm

Weight: 5.9 kg

Certificates

CE, ABYC, UL1236, SAE J1171, ISO 8846, CEC/DOE, RCM/C-Tick

Technical specification

Charging characteristics

IUoUo, automatic / 3-step+ for gel/AGM/flooded/lithium-ion + user-defined option

Temperature compensation

-30 mV/°C / -17 mV/°F; temperature sensor included

DC Voltage Compensation

by automatic compensation or MasterShunt

Current consumption (DC side): < 2 mA (MasterBus off)

Current Control Function

yes, via MasterBus or CZone

Power factor control: > 0.98

Temperature range (temp. environment)

-25 °C to 80 °C, lowering < 0 °C and > 40 °C

Cooling: vario fan

Degree of protection: IP23, with vertical mounting

Security

against excessive temperature, overload, short circuit, high/low battery voltage, ignition protection

Charger Status Interface (Emergency Contact)

Yes, using Multipurpose Contact Output (product code 77030500)

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Model	ChargeMaster Plus 12/75-3 CZone
Parametry	Brand	Mastervolt
Parametry	Maximum amperage	75 A
Parametry	Product weight with unit packaging	0 kg
Parametry	EAN (GTIN)	0816882022555
Parametry	Packaging status	original
