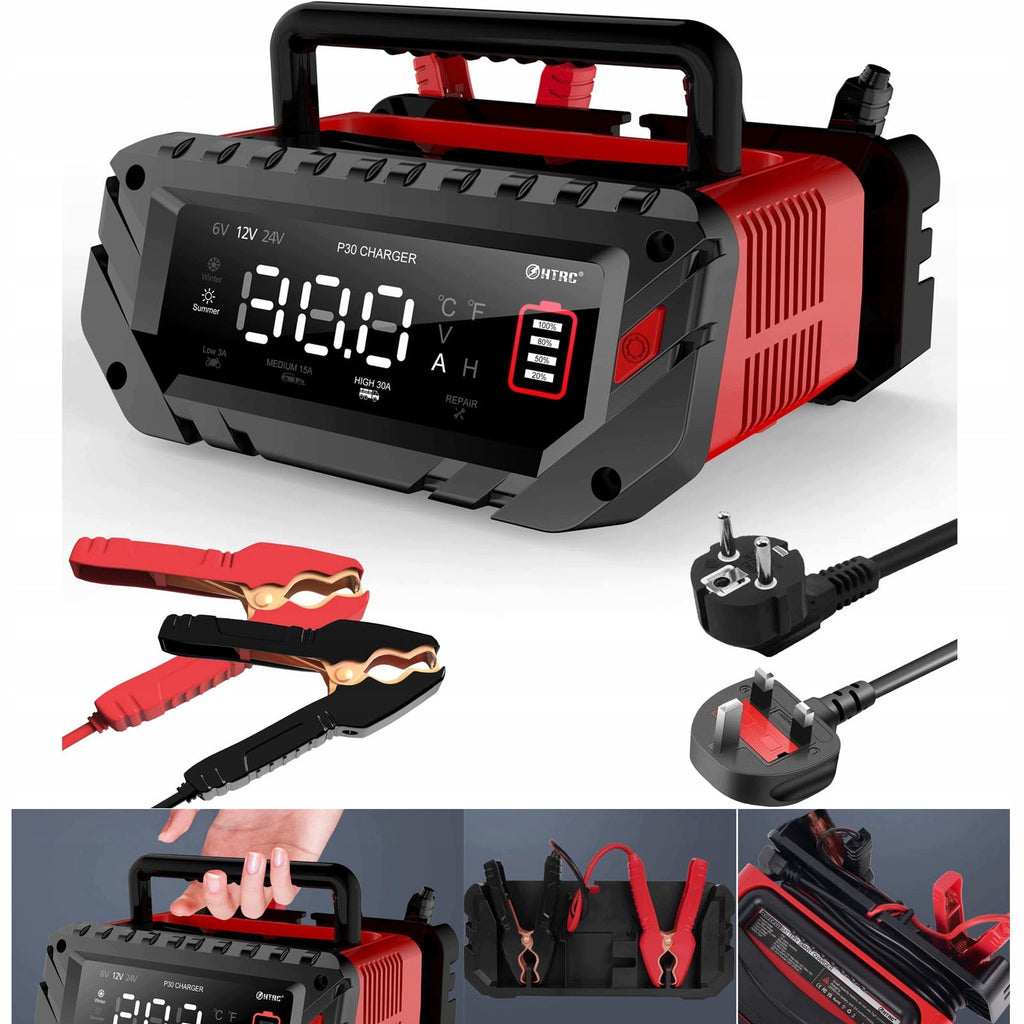

Akumuliatorių įkroviklis LiFePO4, 6V/12V/24V, 30A

Trumpai apie prekę

Prekė: Akumuliatorių įkroviklis LiFePO4, 6V/12V/24V, 30A. Kategorija: Baterijų įkrovikliai.

• Gamintojas: no brand
• Modelis: HHR118

🚗【Wide Application】The car charger is designed exclusively for LiFePo4 6V/12V/24V batteries, lithium batteries and lead-acid batteries (AGM, calcium, gel, MF, EFB, SLA, VRLA, WET, etc. ). It is often used for safe and efficient charging of cars, motorcycles, boats, lawn mowers, etc.

🛵【Intelligent car battery charger】The car charger uses 9-stage automatic charging, including battery recognition, desulfurization, maintenance charging, etc., to achieve the best and most efficient charging. Repair mode is used to repair and activate old and weak batteries.

🛠 【Multiple safety protection】Spark protection, short circuit protection, current reversal protection, over voltage protection, over voltage protection, over voltage protection, over current protection, overheating protection. Housing made of fireproof material. Strong power cable and crocodile clamp ensure safe use.

🚤【One start button】The 6V/12V/24V charger automatically recognizes the battery voltage and allows you to switch between 4 charging modes with the touch of a button. Equipped with LCD screen, battery voltage display, charging current, charging temperature, full battery charge, etc. The car battery charger automatically adjusts the charging power to the ambient temperature.

🎁【What you get】Car battery charger 6 V/12 V/24 V*1 (alternating current cable 1,6 m, terminal cable 1 m), user manual*1

Parameters P30

AC input: 100 V-240 V ~ 50/60 Hz.

Output voltage: 6 V / 12 V / 24 V. (normal – max.: 5,4 V – 7,5 V/13,2 V – 14,6 V / 26,5 V – 29,2 V). Lithium /LiFePO4/lead-acid (AGM, GEL, EFB, MF, flooded, VRLA, SLA and wet...).

Output current: 6 V 10 A, 12 V 30 A and 24 V 16 A.

Supports AH: 2 AH–500 AH... can have a larger capacity, the larger the capacity, the longer the charging time.

Minimum starting voltage > 2,0 V

Power and load: MAX; 420 W

Dimensions: 22 x 19 x 12 cm (8,6 * 7,5 * 4,7 inches).

Net weight: 1,5 kg

1* 6V/12V/24V car charger

1* alternating current cable 1,6 m

1* terminal cable 1 m

1* instruction manual

FAQ

Question 1: Can the maximum charging current be reached?

Answer: To protect the battery, the system automatically recognizes the battery voltage and selects the most suitable current to charge the battery. If the battery voltage is low (e.g. When the 12V battery voltage is less than 11V), the system automatically charges the battery with maximum current. (3 gears can adjust charging current, large current, fast charging) Problem.

Question 2: LifePO4 battery is not fully charged?

Answer: When the battery is fully charged, it has a recall function, which reduces the charging process by about 1 to 2 V, which is normal. After a full charge and uninterrupted charging, a small current is added.

Question 3: Fan noise?

Answer: Fan noise is normal.

Note:

1 Lithium battery should only be charged with a battery protection plate (BMS).

2 The battery should be charged with a minimum current of less than 15 Ah

Tips:

If the battery has not been used for a long time, is old or cannot be recharged, select the “REPAIR” mode to try to activate the battery.

(1) Before charging, check that the battery is not damaged and that there are no unusual phenomena, such as leakage of fluid around the battery. In the event of unusual phenomena, the device should be carefully charged.

(2) Do not charge in an environment where there are gaseous fumes.

(3) High temperature and humidity environments should be avoided when charging.

(4) When charging, the surface of the battery must not be covered by any objects, and the battery must be positioned vertically, not diagonally.

(5) If the sulphide material at both ends of the positive and negative electrode of the battery is too high, the sulphide material must first be removed so that the battery can charge better;

(6) If the voltage of the charged battery is very low, it must be repaired before charging;

(7) Charging batteries with a voltage above 24 V with this charger is prohibited.

(8) This is a battery charger, not an emergency start device.

Specifications
