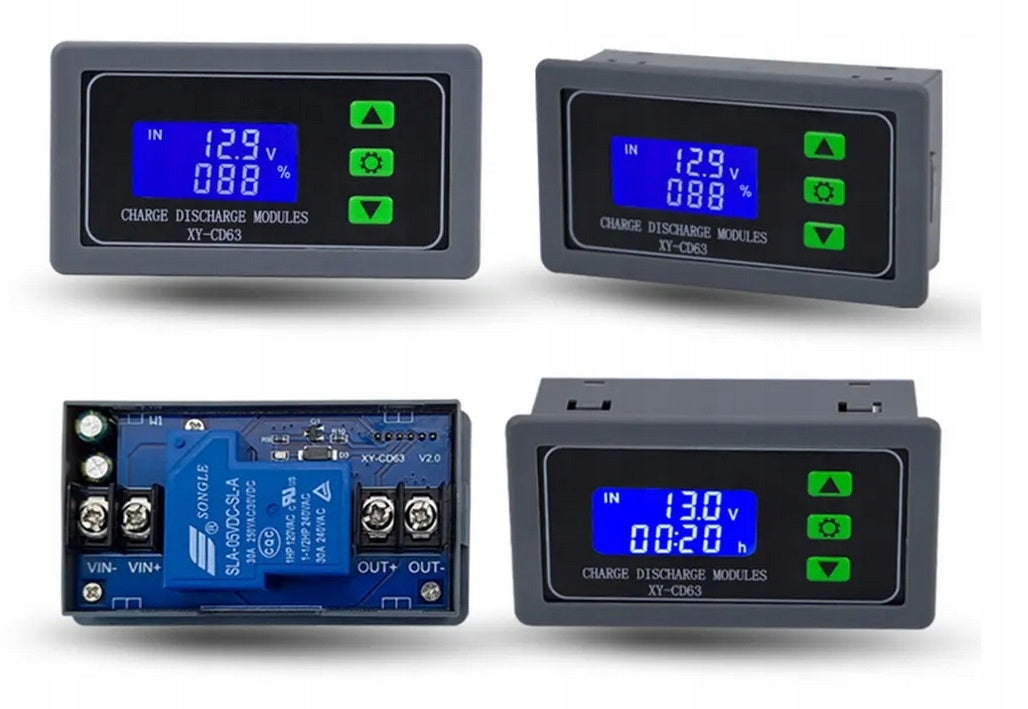

Akumuliatoriaus krovimo ir iškrovimo valdymo modulis 6–60 V DC, 30 A, su korpusu

Trumpai apie prekę

Prekė: Akumuliatoriaus krovimo ir iškrovimo valdymo modulis 6–60 V DC, 30 A, su korpusu. Kategorija: Baterijų įkrovikliai.

• Gamintojas: no brand
• Modelis: ŁADOW/ROZŁA AKUMULATORA6-60V30A

• OPERATING VOLTAGE RANGE 6-60V DC
• CHARGING SPEED 30A MAX INSTANTANEOUS
• CONTINUOUS CHARGING CURRENT 20 A max!!!!
• FOR LARGER CURRENTS, YOU NEED TO REPLACE A 5 V RELAY WITH A LARGER CONTACT CURRENT OR USE A SECOND EXTERNAL
• DEVICE WATCHES OVER CHARGED /DISCHARGE BATTERY
• VOLTMETER SHOWING VOLTAGE ON CHARGED/DISCHARGE. BATTERIES.
• ESTIMATED CHARGE LEVEL IN % (DIFFERENCE BETWEEN SET VOLTAGES BUT ONLY WHEN CHARGING)
• ADJUSTABLE SET CHARGING TIME
• DIMENSIONS APPROXIMATELY : 7.9 x 4.2 cm
• POSSIBILITY TO WORK WITH SOLAR CHARGERS
• POSSIBILITY OF CONR\CONTROLLED BATTERY DISCHARGE

VERY EASY TO USE:

1. PRESS THE SUN BUTTON FOR 5 SECONDS
2. SET UP/DOWN BUTTONS FOR VOLTAGE AND TIME
3. WITH A SHORT SINGLE PRESS OF THE SET WE CHANGE THE SETTING PARAMETER
4. WE APPROVE EVERYTHING AGAIN LONG 5 SEC. PRESSING THE SUN BUTTON
5. IN/OUT MODE IS CHANGED BY LONG PRESSING>5 sec. UP BUTTON

DISPLAY PARAMETERS

DN - LOWER VOLTAGE AT WHICH THE CHARGING WILL BE SWITCHED ON

UP - THE UPPER VOLTAGE AT WHICH THE TRANSMITTER WILL DETACH THE CHARGER

SET - CHARGING CYCLE TIME

IN - LOADING MODE!!!

OUT - DISCHARGE MODE!!!

OP - charging time

DOP - charging delay time

* IT IS IMPORTANT TO CHOOSE THE RIGHT CHARGER FOR THE BATTERY SO AS NOT TO DAMAGE IT!!

THE DEVICE DOES NOT CHANGE THE VOLTAGE OR CURRENT VALUE ONLY TURNS ON AND OFF THE VOLTAGE FROM THE CONNECTED POWER SUPPLY / CHARGER

ACCORDING TO THE SET PARAMETERS dn/UP.

ATTENTION

DO NOT EXCEED THE PERMITTED CHARGING CURRENT!!

When programming, please take into account the decrease in voltage on the cables and the indications of the tester and battery may vary slightly.

NOTE LIT ICON MEANS!!! :

IN - LOADING MODE!!!

OUT - DISCHARGE MODE!!!
