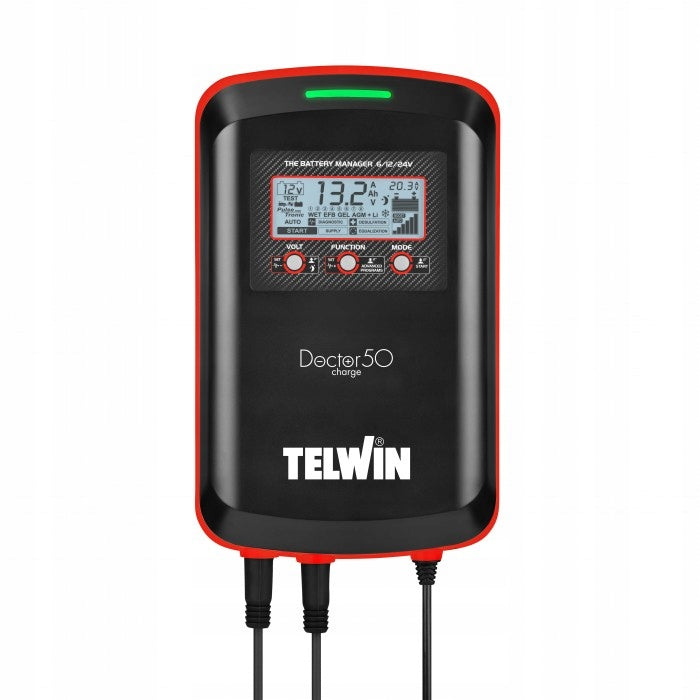

Akumuliatoriaus įkroviklis TELWIN DOCTOR CHARGE 50, 6/12/24V, AGM

Trumpai apie prekę

Prekė: Akumuliatoriaus įkroviklis TELWIN DOCTOR CHARGE 50, 6/12/24V, AGM. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Telwin
• Modelis: 807613

DOCTOR CHARGE 50 6/12/24V is a multifunctional electronic rectifier with POWER STREAM technology for comprehensive operation of WET wet-acid batteries, GEL gel batteries, AGM with fiberglass mat (MF maintenance-free, spiral, for Start-Stop systems) and supporting activities in car services and showrooms. DOCTOR CHARGE is a multifunctional device designed for: automatic charging and maintenance with PULSE-TRONIC technology, battery, start-up current and alternator testing, vehicle start-up assistance (model.50), desulphurisation and battery regeneration. It is also a source of stable voltage during battery replacement, programming, diagnostic activities and when working in car dealerships. .

✅ Charging current 40 A

✅Charging voltage 6/12/24V

✅8 Staged charging process

✅POWER STREAM

✅Digital display

✅Protection against short-circuit poles

✅Reverse polarity protection

✅Weight only 3,3 Kg

✅Alternative test

✅Support boot

✅Show ROOM function for working in car dealerships

✅TEST (control of battery charge status, checking the correctness of the set voltage),

✅DESULPHURISATION (detection and regeneration of sulphurized batteries),

✅ANALYSIS (battery condition analysis detects defective battery),

✅MAIN CHARGE (maximum current to reach 80% charge status),

✅FINAL CHARGE (declining current to charge in 100%),

✅CHECK (checking operation, verifying whether the battery maintains the state of charge), MAINTENANCE (constant voltage charging), PULSE (pulse regeneration).

Control panel functions

LANDING

• CHARGE AUTO – automatic charging: automatic current selection during charging and maintenance depending on battery capacity
• CHARGE MAN – charging, manual settings: individual settings for battery type, charging current or capacity (Ah)
• MANTAIN – maintenance charging: pulse charging via PULSE TRONIC technology
• MONITOR – charging status control: continuous control of charging phases
• BOOST – fast charging and automatic transition to the maintenance phase when charging is completed
• COLD – cold battery charging function: optimizes charging at very low temperatures (low temperatures can adversely affect the chemical structure of battery components)
• SILENT – muted operation function: silent charging with reduced current to avoid disturbing the silence of the fan operation

REGENERATION

• DESULFATION – desulfurization: the impulse regeneration process of sulphurized batteries allows the removal of sulphates from lead plates and results in the recovery of battery capacity
• EQUALIZATION – Alignment: specific function for periodic maintenance to restore the optimal status of WET or AGM batteries by mixing elements

POWER

• DIANGNOSTIC – diagnostics, programming: silent stabilized power source for vehicle installations during diagnostics and programming, protects the battery against voltage drop and discharge
• FINE SET – precise setting of the supply voltage: advanced diagnostic function that allows you to precisely change the output voltage of the rectifier
• MEMORY SAVER – voltage maintenance, no data loss: power source to support the vehicle’s electronic systems during battery replacement, protects against data loss
• SHOW ROOM – work in car dealerships: power source when working in car dealerships, protects batteries from discharge
• LOCK MODE – lock against parameter changes: the control panel lock avoids accidental change of the output parameters of the device.

TEST

• VOLT – battery voltage and charge status test
• START – battery start current test (CCA)
• ALTERNATOR – alternator correct operation test

BOOT SUPPORT

Fully safe vehicle start-up assistance 6/12V

MEMORY – keeping the last settings: every time you turn on, the rectifier automatically sets the last remembered parameters (helpful for repeated use and power grid failures)

PROTECTION – full safety and protection against reverse polarity, short circuit of terminals, overload and charging of a faulty battery

SAVING – minimum power consumption, automatic shutdown after a period of inactivity

LOW VOLTAGE – charging batteries with very low initial voltage up to min.2V

CALIBRATION – calibration of output cables depending on their length guarantees optimal parameters delivered to the battery during charging and to the vehicle during diagnostics.

The innovative POWER STREAM technology guarantees better results up to 50% compared to a traditional charging rectifier through a more efficient and fully controlled charging process. More efficient power transfer and faster charging time results in increased battery performance and longer battery life.

Can be mounted on the wall using the holder (available separately) and extend the output wires to 6 and 10 meters (available separately).

Price of the device with 3m output cables.

Ability to buy accessories :

• Wall mounting bracket
• Wires 6 or 10 m

INDEX: 807613

TECHNICAL PARAMETERS:

• Rated supply voltage230V; 50Hz (1ph)
• Power: 610 W
• Weight: 3,3 kg
• Package dimensions L x W x H330x200x130 mm
• Charging Voltage: 6/12/24V
• Charging Current: 45-45-23 A
• Fast charging current (boost): 40 A
• Rated battery capacity Ah 15h (min/max)10/600
• Rated charging current EN 60335-2-2940-40-20 A
• Rated starting current EN 60335-2-2940 A
