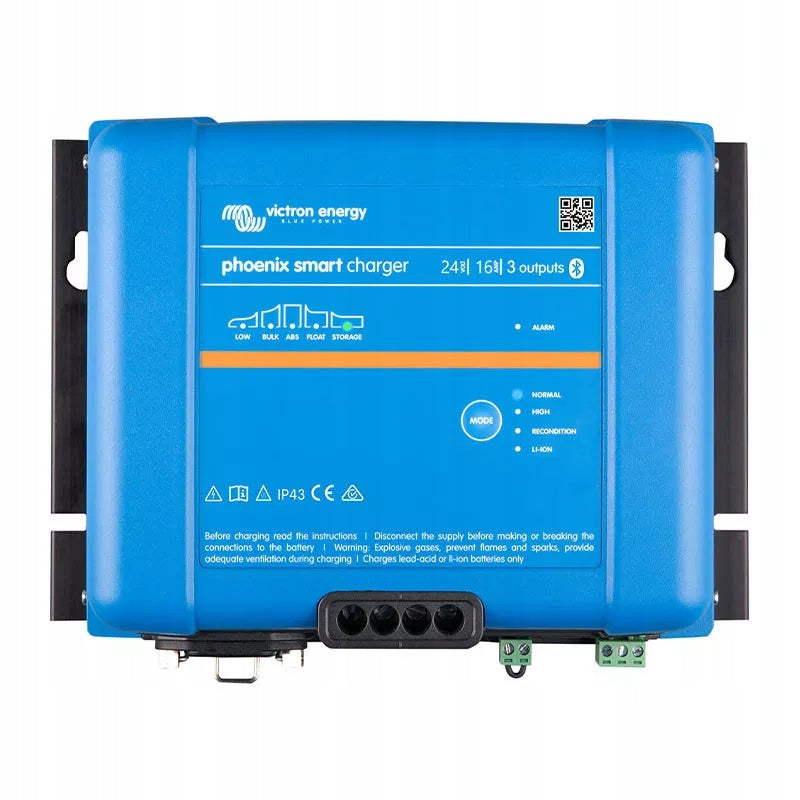

Akumuliatoriaus įkroviklis Phoenix Smart IP43 24V 16A (3 išėjimai)

Trumpai apie prekę

Prekė: Akumuliatoriaus įkroviklis Phoenix Smart IP43 24V 16A (3 išėjimai). Kategorija: Baterijų įkrovikliai.

• Gamintojas: Victron energy
• Modelis: Ładowarka Phoenix Smart IP43 24/16 (3)

The Phoenix Smart IP43 24V 16A (3) charger is an innovative device designed to efficiently charge three independent batteries. With built-in Bluetooth technology, users can monitor and control their charging settings wirelessly using their smartphone or tablet. The charger is fully programmable, allowing you to customize its operation to meet the specific requirements of different types of batteries, including lithium-ion batteries.

The three Phoenix Smart IP43 24V 16A (3) charging outputs offer three outputs, enabling simultaneous charging of three batteries, each with a full rated output current. However, the total output current of the charger does not exceed 16A, which ensures safety and stability in any configuration. Thanks to the adaptive charging algorithm, the device automatically adjusts the absorption time to the degree of discharge of the battery, ensuring its optimal protection against overcharging. In case of deep discharge, the charging time is extended, which guarantees a full charge. In turn, with small discharges, the absorption time is shortened, which speeds up the charging process. The charger is equipped with numerous protections, including reverse polarity, short circuit, and overheating. The BatterySafe system automatically controls the voltage increase, preventing excessive gassing, which increases the safety of use. Thanks to these solutions, the device is ideal for working in difficult conditions, such as yachts or stationary installations. If the battery is not used for 24 hours, the charger automatically switches to storage mode, reducing buffer voltage, which minimizes corrosion and gas secretion. This feature also prevents the battery from sulphating, which significantly extends its lifespan. The device can be programmed remotely via Bluetooth or the VE.Direct interface, giving you full control over your charging settings. Technical specification

• Model : Phoenix Smart IP43 24V 16A (3)
• Input voltage: 230 VAC (range: 210 – 250 V)
• Direct current input voltage range: 290 – 355 VDC
• Frequency: 45 – 65 Hz
• Power factor: 0,7
• Reverse current drain: No AC power: < 0,1 mA
• Connected AC power and disabled remote control of charger: < 6 mA
• Power consumption without load: 1 W
• Efficiency: 94%
• Charging voltage (Absorption / Maintenance / Storage):
• Normal: 28,8V / 27,6V / 26,4V
• High: 29,4V / 27,6V / 26,4V
• Lithium-ion: 28,4 V / N/D / 27,0 V
• Fully programmable: Yes, with Bluetooth and/or VE.Direct
• Number of battery connections: 3
• On-board battery charging current: 16 A
• Low current mode: 8 A
• Temperature compensation: -32 mV/°C
• Starter battery charging current: No
• Charging algorithm: 6-stage adaptive (for lithium-ion batteries: 3-stage)
• Protection: Reverse battery polarity, short-circuit output, overheating
• Ability to work as a power source: Yes, the output voltage can be set via Bluetooth and/or VE.Direct
• Operating temperature range: -20°C to 60°C (full output current up to 40°C, linear reduction by 20% at temp. 60°C)
• Moisture (without condensation): Max. 95%
• Remote on/off: Yes (2-pole connector)
• Relay (programmable): 5 A to 28 VDC
• Bluetooth :
• Power Supply: -4 dBm
• Frequency: 2402 – 2480 MHz
• Material and colour: Aluminium (blue RAL 5012)
• Battery connection: 16 mm² (AWG6) screw terminals
• Alternating current connection: IEC 320 C14 inlet with retaining terminal (current cable to be ordered separately)
• Protection rating: IP43 (electronic components), IP22 (connection area)
• Weight: 3,5 kg
• Dimensions: 180 x 249 x 100 mm

The Phoenix Smart IP43 24V 16A (3) charger is the ideal solution for users who need reliable charging for three batteries at the same time, with full remote control and advanced overload protection.
