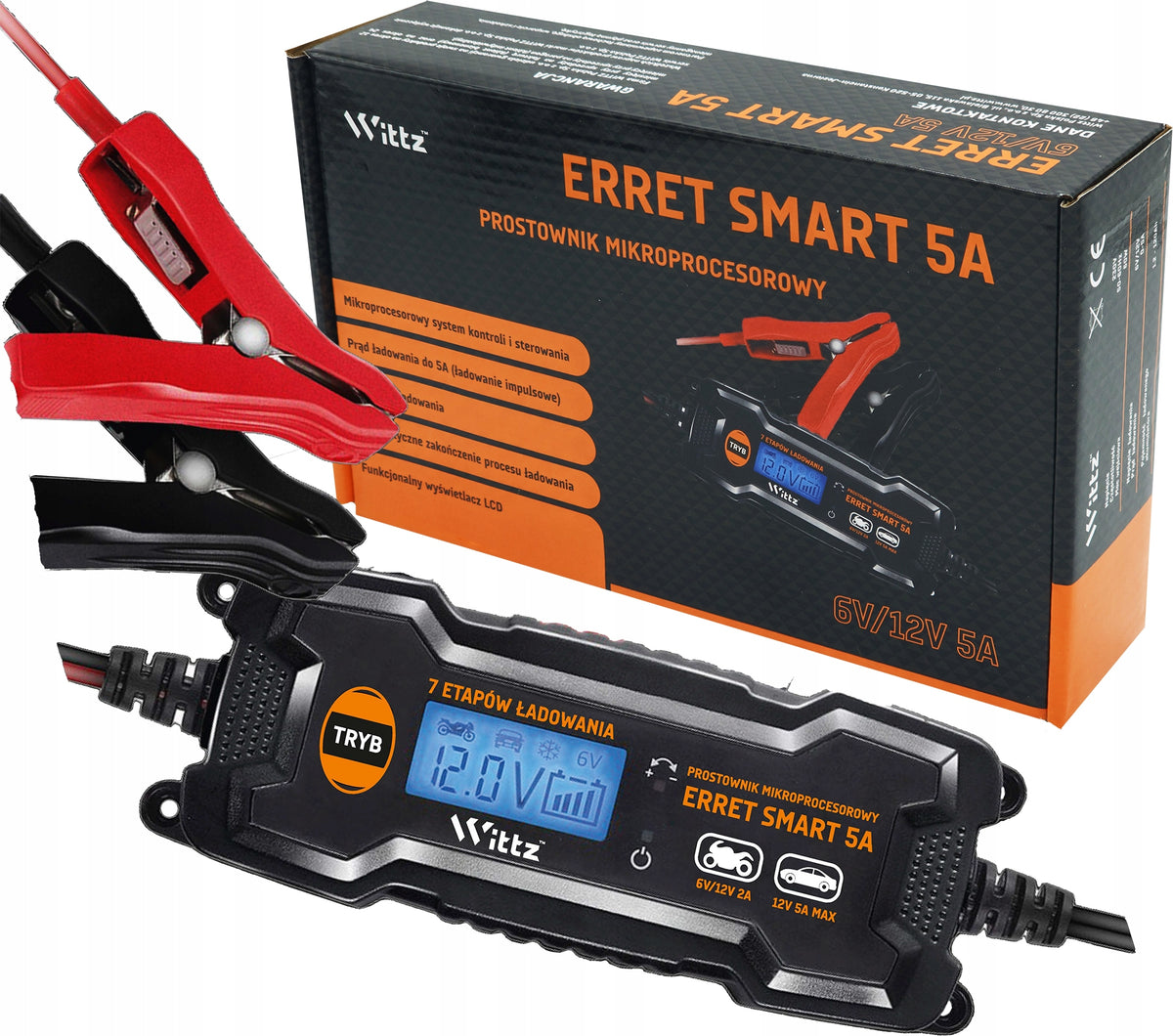

Akumuliatoriaus įkroviklis ERRET SMART, 6V/12V, 5A

Trumpai apie prekę

Prekė: Akumuliatoriaus įkroviklis ERRET SMART, 6V/12V, 5A. Kategorija: Baterijų įkrovikliai.

• Gamintojas: ERRET
• Modelis: SMART 5A

✅ FITS ALL 6V 12V BATTERIES FROM 1.2Ah TO 120Ah

➡ WORKS WITH START & STOP BATTERIES

✅ LATEST MODEL FOR 2023.

✅ BATTERY REPAIR MODE

✅ FAST CHARGING 6V, 12V

✅ AUTOMATIC SUMMER AND WINTER MODE

✅ MODERN MICROPROCESSOR

✅ MULTIPLE SECURITY SYSTEMS

✅ SMALL SIZE GREAT POWER

✅ FOR BATTERIES FROM 1.2Ah TO 120Ah

✅ FOR CARS, MOTORCYCLES, BOATS AND OTHER VEHICLES WITH 6V, 12V BATTERY

The clamps have small tips that allow you to connect to smaller terminals, and the detachable integrated eye tips allow for permanent connection to the battery.

Connect the integrated eye tip directly to the battery terminal or to the clamp.

1. Checking the battery connection and

diagnosis

2. Desulfurization

3. Start charging with high current

4. Bulk loading

5. Absorption charging

6. Battery test

7. Float and maintenance charging

The repair mode is designed to regenerate batteries that have lost their capacity. Helps to restore the correct internal structure of the battery. Thanks to this, you can extend the life of a poorly functioning battery. Instead of replacing the battery with a new one, the repair mode gives you the chance to restore its efficiency and continue using it for a longer period of time.

If after 90 s the voltage on the battery is in the range of 7,5V – 10.5V, a 12V battery is connected. Pulse charging of the battery begins in order to regenerate it. The voltage indicator displayed on the LCD flashes. When the voltage reaches 10.5V, the rectifier proceeds to the next charging step.

• temperature
• battery charge level expressed in volts
• charging intensity level expressed in amperes
• information about the complete charge of the battery
• battery repair mode
• Poorly installed connectors (plus confused with the minus on battery clamps)
• rectifier does not charge
• battery level indicator

• Program 1 "6V"

For charging 6V batteries with a capacity of less than 14Ah. Press the program change button to select program 1 charging. The LCD display will say “6V”. When charging, part of the display (Wid. A 7) flashes and shows the charge level of the connected battery on the scale. When the battery is fully charged, the scale shows 4 full bars. When fully charged, the flashing stops and the rectifier goes into voltage backup mode.

• Program 2 "12V"

For charging 12V batteries with a capacity of less than 14Ah. Press the program change button to select program 2 charging. It will appear on the LCD display. When charging, part of the display (Wid. A 7) flashes and shows the charge level of the connected battery on the scale. When the battery is fully charged, the scale shows 4 full bars. Once fully charged, the flashing stops and the rectifier goes into voltage backup mode.

• Program 3 "12V"

For charging 12V batteries with a capacity of 14Ah – 120Ah. Press the program change button to select the 3 load program. It will appear on the LCD display. When charging, part of the display (Sch. A 7) flashes and shows the charge level of the connected battery on the scale. When the battery is fully charged, the scale shows 4 full bars. Once fully charged, the flashing stops and the rectifier goes into voltage backup mode.

• Program 4 "12V"

For charging 12V batteries with a capacity of 14Ah – 120Ah in conditions of reduced storage temperature and for AGM batteries. Press the program change button to select the 4 load program

It will appear on the LCD display. When charging, part of the display (Sch. A 7) flashes and shows the charge level of the connected battery on the scale. When the battery is fully charged, the scale shows 4 full bars. When fully charged, the flashing stops and the rectifier goes into voltage backup mode.

• Charging current: 0.8-5A
• Input voltage: 220V-240V AC
• Output voltage: 6V/12V DC
• Maximum output power: 60W
• Ambient temperature: 0°C to +40°C
• Protection class: IP65
• 6V battery capacity: 1.2Ah-14Ah
• 12V battery capacity: 1.2Ah-120Ah
• Weight: 1kg

• SLA batteries
• VRLA batteries
• AGM batteries
• Gel batteries
• Lead-acid batteries
• Liquid electrolyte batteries

• Passenger cars
• Trucks
• Toys for children
• Emergency power source
• Cordless lawnmowers
• Cordless brush cutters

* And other devices that use 6V, 12V or 24V batteries to operate

The attachments include an instruction manual for the rectifier

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Model	SMART 5A
Parametry	Brand	ERRET
Parametry	Maximum amperage	5 A
Parametry	Product weight with unit packaging	1 kg
Parametry	EAN (GTIN)	5905923670048
Parametry	Batteries included	no
