Adaptorius Raspberry Pi 5 M.2 NVMe PCIe Geekworm X1004

Trumpai apie prekę

Prekė: Adaptorius Raspberry Pi 5 M.2 NVMe PCIe Geekworm X1004. Kategorija: Priedai.

• Gamintojas: no brand
• Modelis: 5908456427394

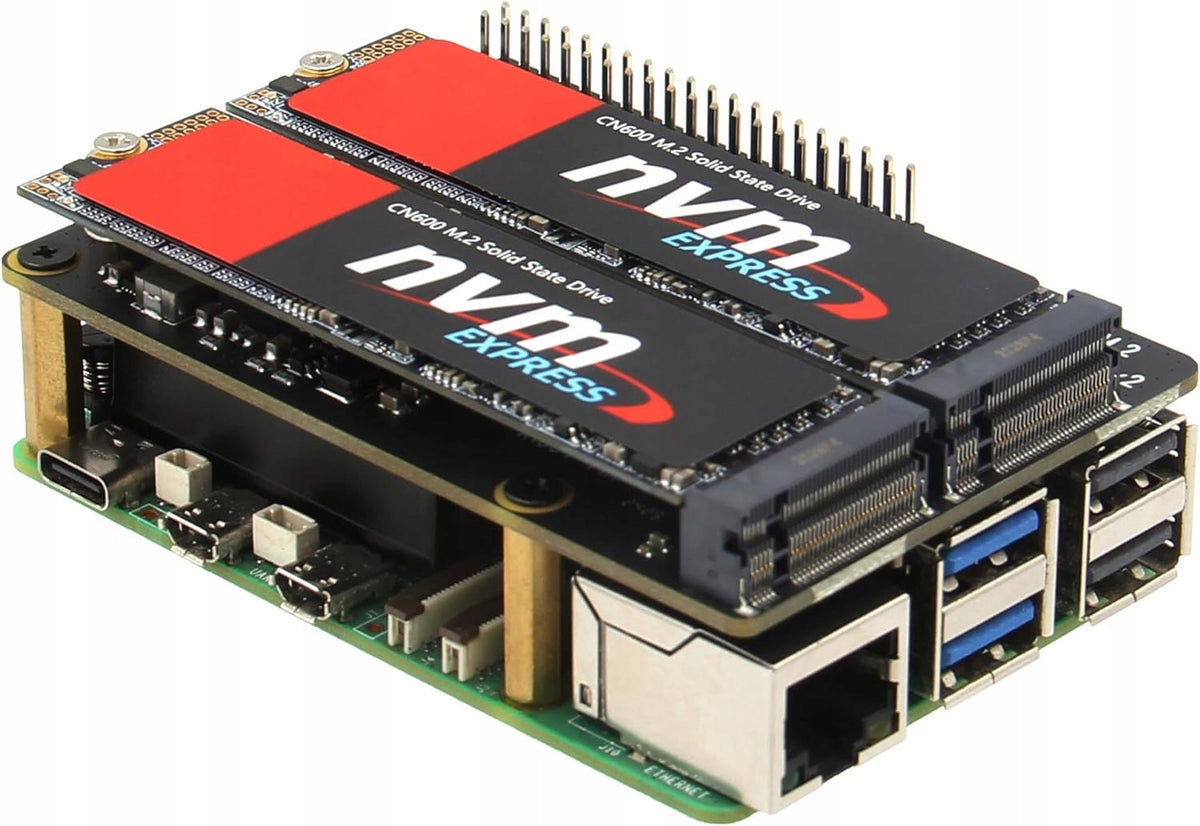

The Geekworm X1004 board was created for Raspberry Pi 5 users who need a significant increase in disk space and speed of data access. It allows you to connect two M.2 NVMe SSDs, which opens the door to advanced applications and projects.

Application and potential for expansion

• Two slots for M.2 NVMe drives: Allows you to install two SSDs in M.2 2280 (KEY-M) format, which significantly increases the available space and system performance.
• Support for booting from NVMe: It is possible to boot the operating system directly from connected NVMe drives, provided that the EEPROM Raspberry Pi 5 is version dated May 17, 2024 or later.
• Compatibility with Raspberry Pi 5: The board is dedicated to all versions of Raspberry Pi 5, including 4GB, 8GB and 16GB models.
• Comprehensive applications: It is an ideal complement for file servers, monitoring systems, extensive embedded applications and other projects requiring fast and capacious data storage.

Technical information on performance

At the heart of the X1004 is the PCIe ASMedia ASM1182e switch. Its presence means that the maximum theoretical data transfer speed is limited to the PCIe Gen 2.0 standard. Please note that even if the PCIe Gen 3.0 setting is enforced in the Raspberry Pi 5 configuration, the actual throughput of the SSDs will be PCIe Gen 2.0 compliant.

Compatibility and hardware requirements

• Base device required: The board is designed exclusively to work with Raspberry Pi 5 (4GB, 8GB, 16GB models). The Raspberry Pi 5 itself is not included.
• Supported media: Compatibility includes M.2 KEY-M NVMe SSDs in size 2280. SSDs are not part of the offer.

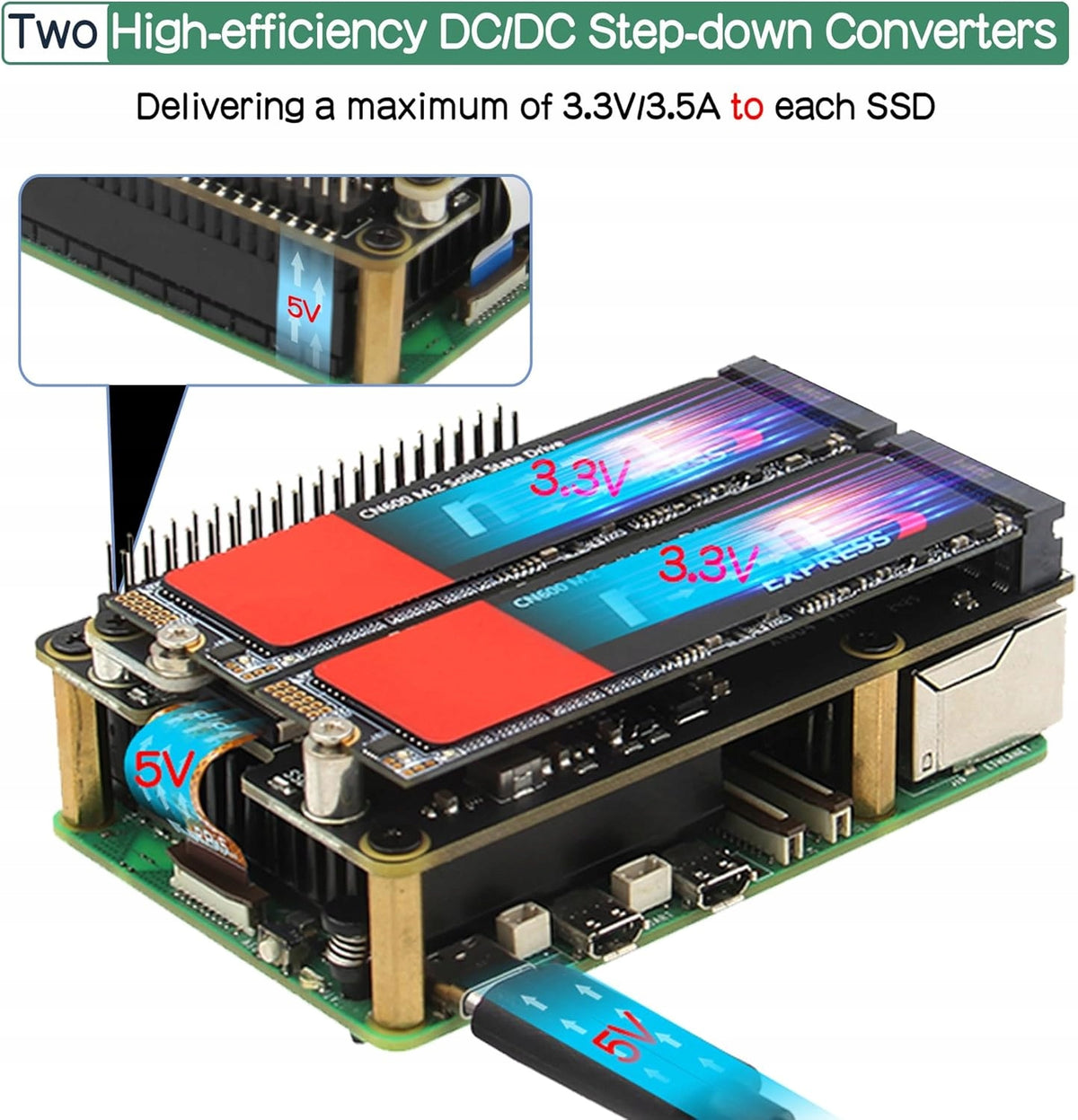

Power supply and energy requirements

The board is powered by the Raspberry Pi 5 bus. For its proper operation, a stable power source with parameters 5Vdc +5% with current efficiency at the level of 5A is necessary. It is recommended to use a Power Delivery (PD) compliant power supply with a power of at least 27W to ensure optimal stability of operation.

Product specification

• Product name: X1004
• Manufacturer: Geekworm
• Weight: 32 g
• Country of manufacture: China

Contents of the pack

• Geekworm X1004 PCIe to M.2 NVMe expansion board
• Set of mounting elements

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	5908456427394
Parametry	Manufacturer	no brand
Parametry	Kind	Expansion board
Parametry	EAN (GTIN)	5908456427394
Parametry	Batteries included	no
