Adapteris HatDrive Top Lite PCIe į NVMe 2230/2242 diskus, skirtas Raspberry Pi 5

Trumpai apie prekę

Prekė: Adapteris HatDrive Top Lite PCIe į NVMe 2230/2242 diskus, skirtas Raspberry Pi 5. Kategorija: Priedai.

• Gamintojas: no brand
• Modelis: TM1S-LT

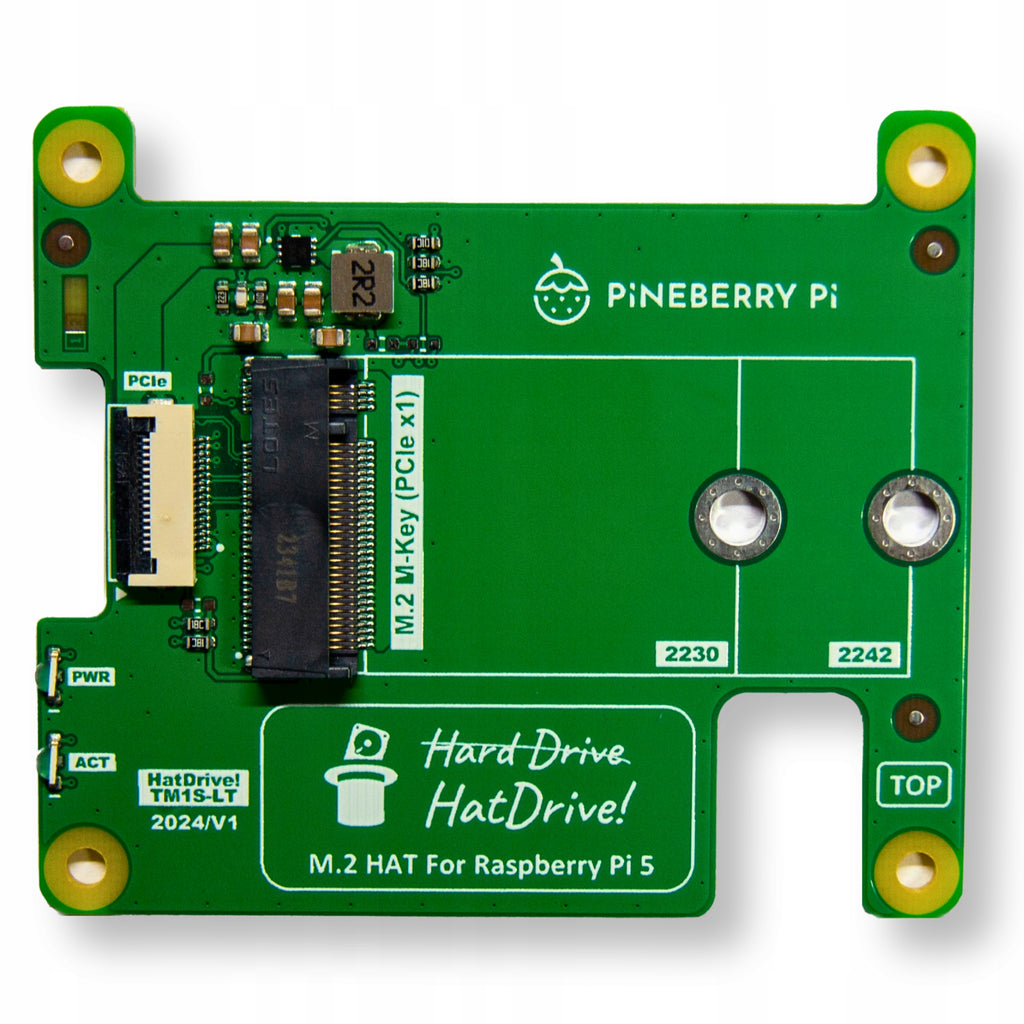

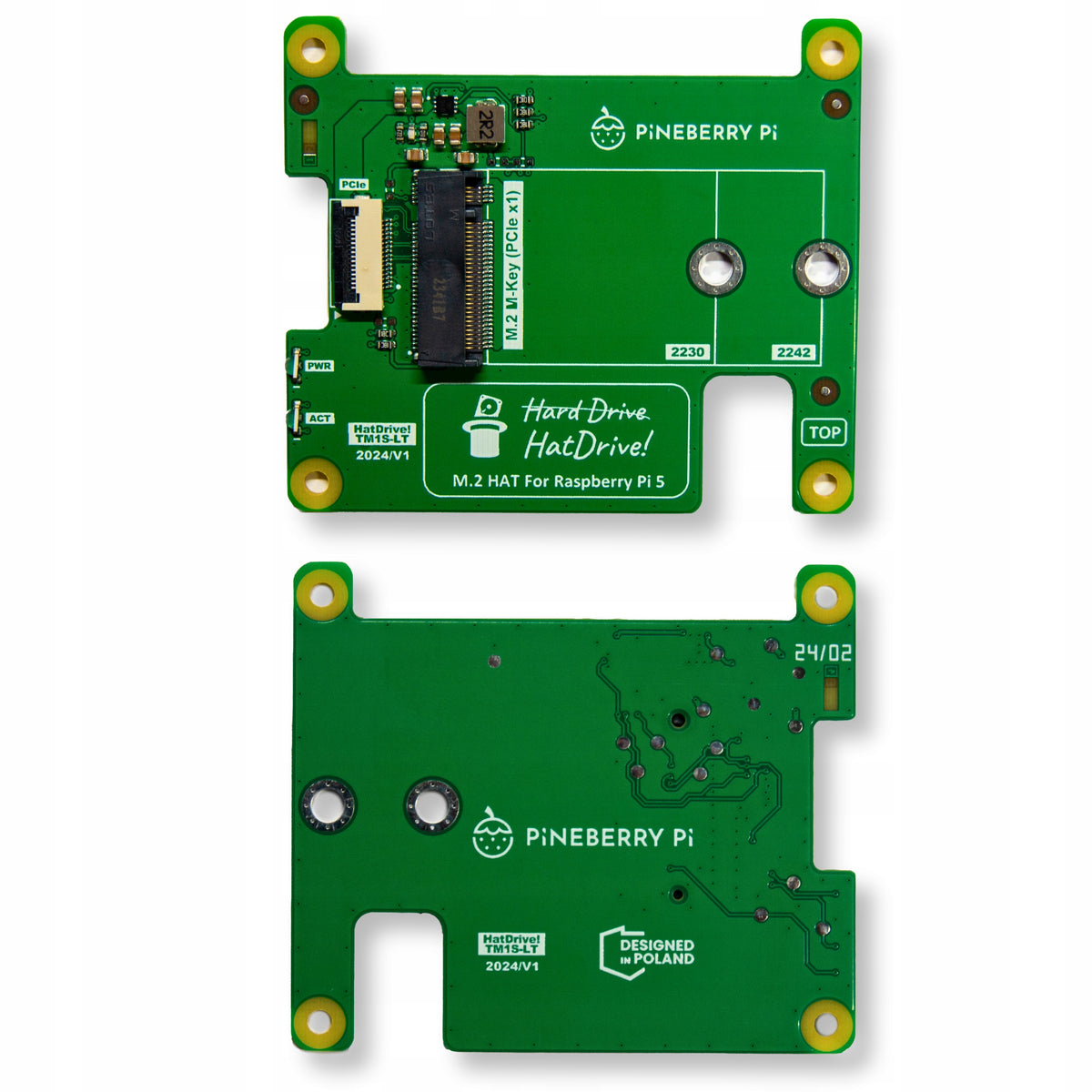

HatDrive adapter! Top Lite PCIe to NVMe 2230 2242 drives for Raspberry Pi 5

Introducing the innovative solution for owners of the Raspberry Pi 5 – an expansion module designed to fully exploit the potential of your single-board computer. This unique product is a perfect fit for the Raspberry Pi 5, offering unprecedented compatibility and performance.

It was created for users who want to significantly increase the speed and storage capacity of data thanks to the possibility of installing NVMe drives in M.2 2230 and 2242 formats. With support for the PCIe x1 interface in the Gen2 and Gen3 standards, the module enables versatile connections, ensuring fast and stable data transfer.

It is also distinguished by dual LED indicators informing about the power supply voltage and disk activity M.2, which allows easy monitoring of the device status. Thanks to compatibility with the dimensions of the original Raspberry Pi HAT overlays (65 x 56,50 mm), the module fits perfectly with your Raspberry Pi 5.

The innovative power supply system, compliant with the M.2 (NGFF) standard, equipped with a voltage regulator capable of delivering up to 3A for the 3.3V power rail, provides a stable and safe power supply for your NVMe drives. Easy and quick installation of the M.2 disk is possible thanks to a specially designed metal bracket, which greatly simplifies the configuration.

For maximum user convenience, the module offers intuitively labeled PCB for easy installation and use. Built with the highest quality electronic components and a 4-layer PCB, it guarantees reliability and long-lasting performance.

Specification and key advantages:

• Specially designed for Raspberry Pi 5: Adapted to the latest single board computer, Raspberry Pi 5, providing excellent compatibility.
• Ability to Install NVMe Drive: Supports NVMe drives (M key) in M.2 2230 and 2242 formats, making it easier to take advantage of high-speed memory solutions.
• Support for PCIe Interface: Compatible with PCIe x1 interface in Gen2 and Gen3 standards, offering versatile connectivity options.
• Double LED Indicators: Equipped with 2 LED indicators for power supply voltage ("PWR") and M.2 disk activity ("ACT"), providing relevant operational information.
• Compatible Format: Maintains compatibility with original Raspberry Pi HAT dimensions, 65 x 56,50 mm, ensuring a consistent fit.
• Power System Compliant with M.2: Standard Integrates a voltage regulator capable of delivering up to 3A for a 3.3V power rail, according to M.2 Standard (NGFF).
• Easy and Quick Installation of M.2: Allows quick installation of M.2 drives in 2230 or 2242 formats, thanks to a CNC bracket specially made of metal.
• M.2 Card Power Options: Provides M.2 card power directly from PCIe FPC tape or through an alternative power supply method, customized for the lite version.
• User-friendly PCB Markings: It has clearly marked PCBs for ease of installation and use.
• High Quality Components: Built with high quality electronic components and 4-layer PCB board for reliability and performance.

The set includes:

• dedicated PCIe FPC tape,
• spacer pins,
• M2.5 screws
• spacer pin for mounting the M.2 disk
