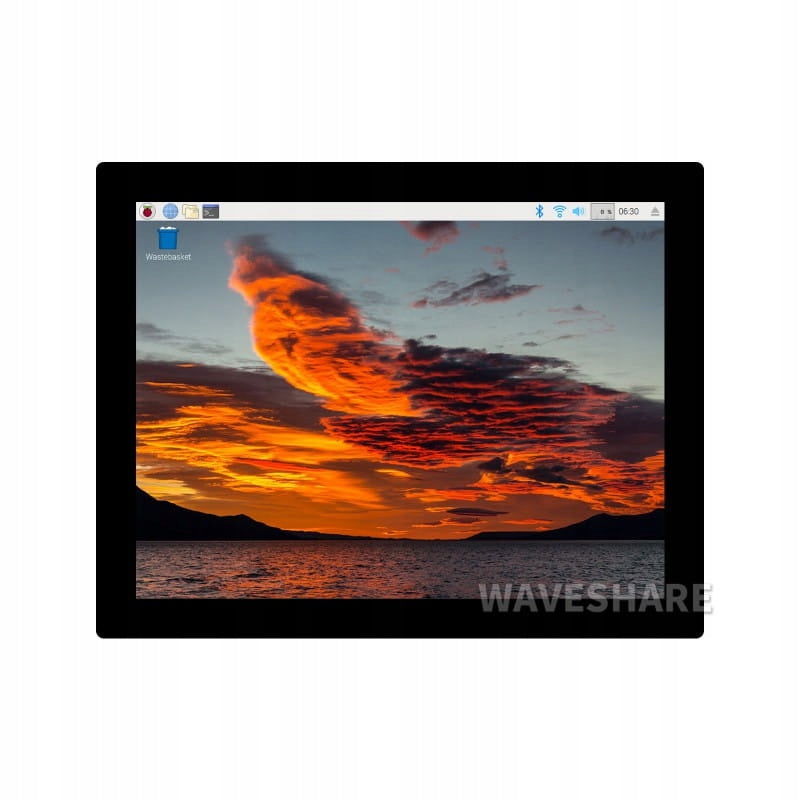

8" IPS HDMI jutiklinis monitorius Raspberry, 768×1024

Trumpai apie prekę

Prekė: 8" IPS HDMI jutiklinis monitorius Raspberry, 768×1024. Kategorija: Priedai.

• Gamintojas: WaveShare
• Modelis: 8inch 768x1024 LCD Waveshare 27026

8" Capacitive Touch Screen 768×1024 with HDMI Interface – IPS Panel, 10-Point Touch

High quality 8-inch IPS display with 768×1024 resolution with capacitive touch panel. With 6H tempered glass and 10-point touch support, the screen provides precise and smooth user interaction. Compatible with a variety of operating systems and devices equipped with an HDMI connector, including Raspberry Pi and PCs.

Key features:

• 8" IPS display, 768 × 1024 pixels resolution
• Capacitive touch panel with 10 points support
• Tempered glass with 6H hardness
• Wide viewing angles – 178°
• Contrast 900:1, brightness up to 350 cd/m²
• Standard HDMI connector for image transfer
• Audio output: 3.5 mm jack and 4PIN speaker connector
• Power Interface: 5V via USB Type-C
• Screen menu (OSD) for adjusting the backlight
• Support: Raspberry Pi OS, Ubuntu, Kali, Retropie, Windows 7/8/8.1/10/11

Connection to Raspberry Pi 5 and Raspberry Pi 4

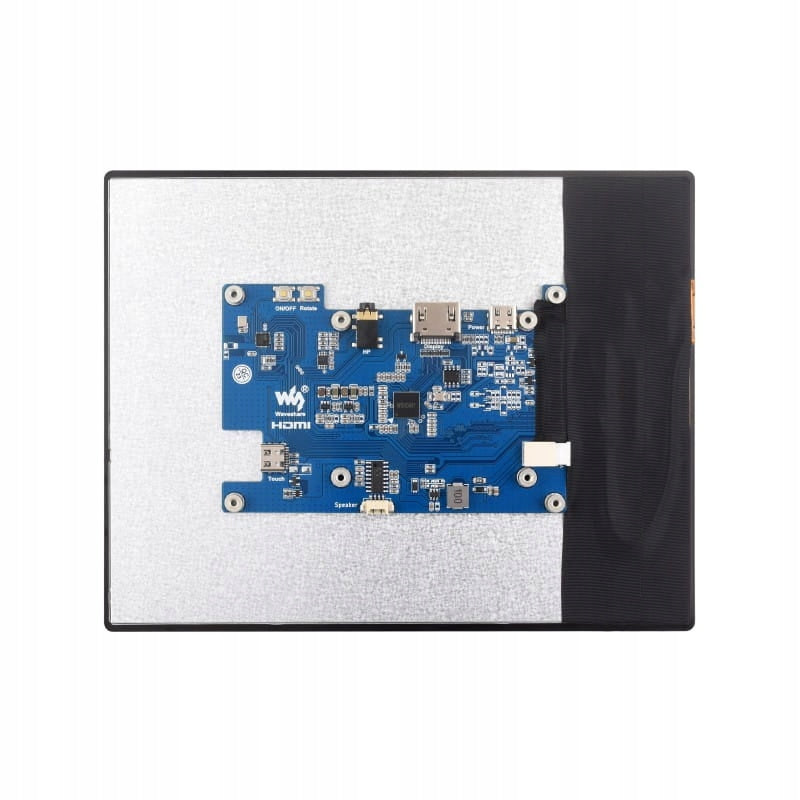

Description of the display board

1. Power switch and brightness adjustment
2. Rotating the touch
3. Audio Jack Connector
4. HDMI port
5. Power connector
6. Port of Touch
7. Speaker Output

Technical specification:

• Display: 8.0" IPS 768 × 1024 pixels
• Touch support: 10-point capacitive touch
• Touch screen dimensions: 147.30 × 188.00 mm
• Display area: 122.70 × 163.40 mm
• Pixel spacing: 0.1587 × 0.1587 mm
• Maximum brightness: 350 cd/m²
• Contrast: 900:1
• Backlight adjustment: via OSD menu
• Refresh rate: 60 Hz
• Display interface: HDMI
• Power port: USB Type-C 5V
• Power consumption: 4 W

Contents of the set

1. 8inch 768x1024 LCD ×1
2. Flat HDMI Cable ~1m ×1
3. USB-A to Type-C Cable ~1m ×1
4. USB to Type-C Adapter (C) ×1
5. USB to Type-C (B) Adapter ×1
6. HDMI adapter ×1
7. HDMI to Micro HDMI Adapter ×1
8. Screws

Wiki: 8inch_768x1024_LCD
