Trumpai apie prekę
Prekė: 7" jutiklinis DSI LCD ekranas su kamera ir korpusu Raspberry Pi. Kategorija: Priedai.
- Gamintojas: WaveShare
- Modelis: Waveshare 21366

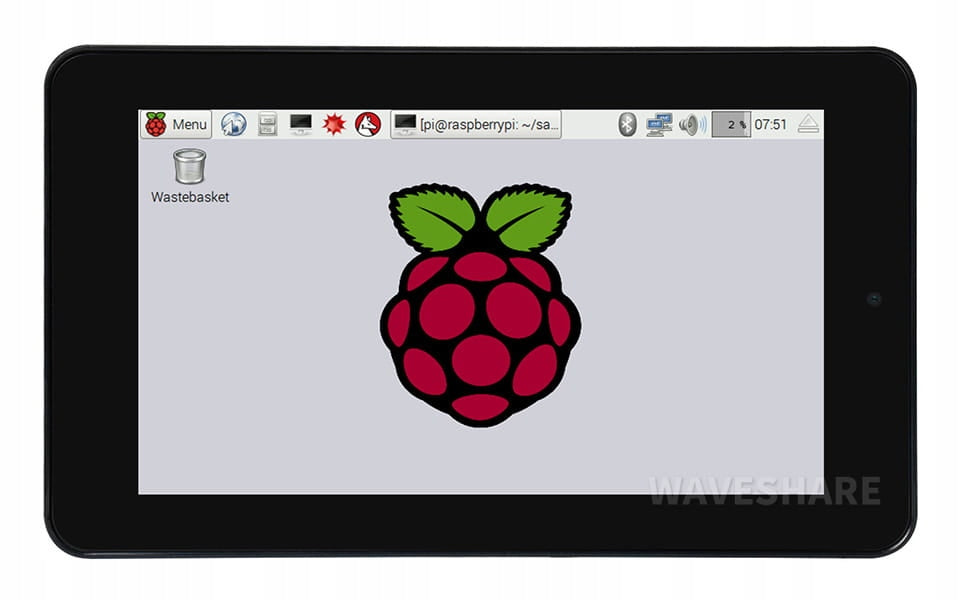

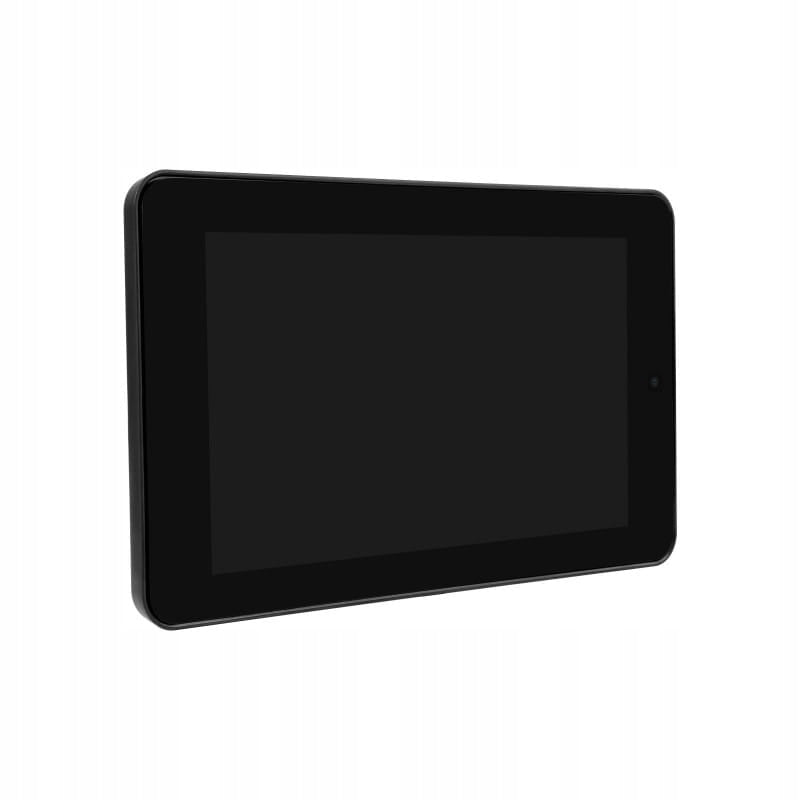

7 inch capacitive touchscreen display for Raspberry Pi,DSI, 800×480 with built-in 5MP camera and housing
⭐ Module specification:
▶ Display type: capacitive touch
▶ Diagonal: 7"
▶ Resolution: 800 x 480
▶ Camera:
- Sensor: OV5647
- CMOS Size: 1/4"
- Pixels: 5MP
- Focal length: 3,89mm
- Slanted field of view: 72,9°
- Distortion: max1,5%
- Field depth: 20 cm ~
- Image Resolution: 2592 × 1944
- Video Resolution: 1920 × 1080p @30fps, 1280 × 720p @60fps, 640 × 480p @60fps, 640 × 480p @90fps
▶ DSI interface
▶ Supports Raspbian
▶ Standard connectors to fit Raspberry Pi boards
▶ Capacitive touch screen with 5-point support
▶ Enclosure with holes for ports:

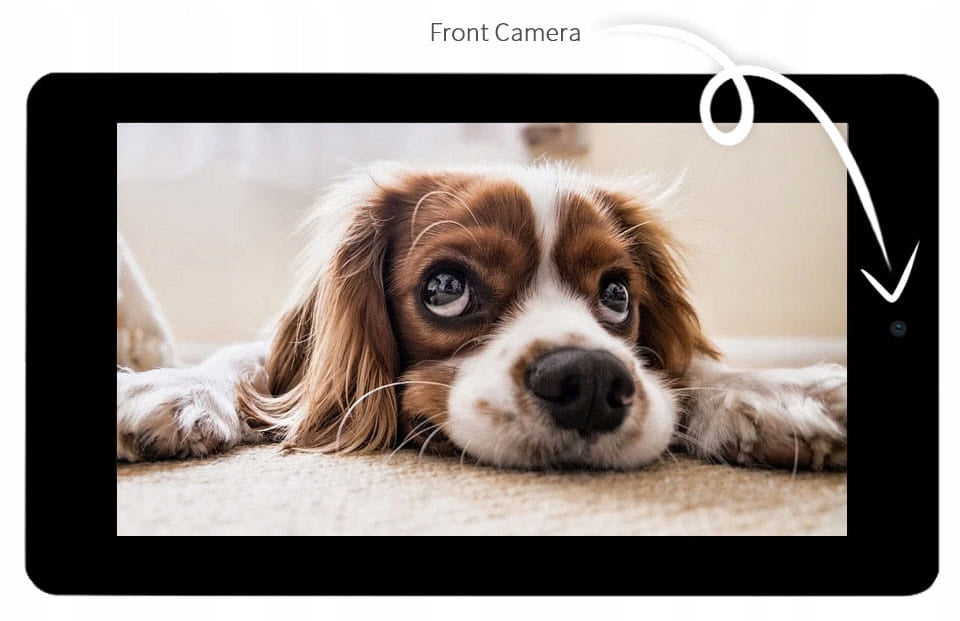

▶ Front camera:
▶ 5-point touch panel:
▶ Examples of connections:
▶ Dimensions:
⭐ Assembly instructions:
❗ Raspberry Pi shown in the pictures is not included ❗
✅ Set includes:
- 7-inch DSI LCD display with camera and wires x1
- Black case set x1
▶ We invite you to our blog for more interesting solutions and articles. We also invite you to like our Facebook page to stay up to date with electronics.
ELTY electronics and you
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | Waveshare 21366 |
| Parametry | Manufacturer | WaveShare |
| Parametry | EAN (GTIN) | 5904978304199 |
| Parametry | Kind | Camera,Case,Display |
