6 prievadų 100Mbps POE komutatorius TCE-PS4306N6, 65W

Trumpai apie prekę

Prekė: 6 prievadų 100Mbps POE komutatorius TCE-PS4306N6, 65W. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: no brand
• Modelis: 4016406826966

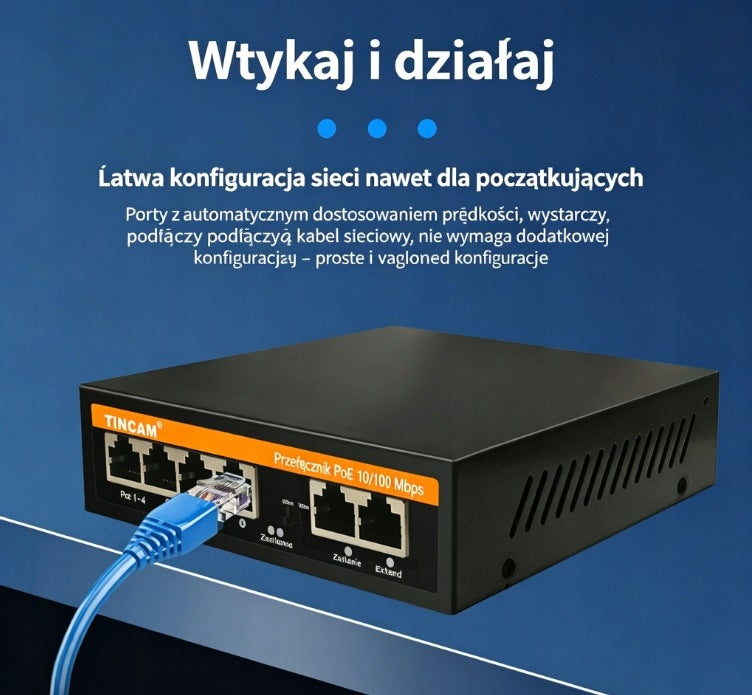

The TiNCAM TCE-PS4306N6 is a compact 6-port unmanaged PoE switch with a total PoE power of 65W, designed primarily for monitoring small security, home networks and small offices. It is plug-and-play and requires no configuration, with one cable for synchronous data transmission and mains power supply, compatible with IP cameras, wireless access points and VoIP IP phones; The steel mini body is equipped with an Extend DIP switch, supporting two transmission modes: standard 100 meters and 250 meters extension. Compared to the 48W version of the same series, it offers higher power supply and can carry higher power monitoring terminals.

The whole system has 6 RJ45 100Mbps Ethernet ports with pure port split:

1. Ports 1 to 4: PoE power port, simultaneous data transmission + power supply via network cable;

2. Ports 5 to 6: Independent uplink uplink, network transmission only, no PoE power supply;

3. Indicator lights: power indicator, expansion mode indicator;

4. DIP DIP switch: one-touch switching between transmission distances of 100m/250m;

5. The rear is equipped with power outlets and ground holes for stable power supply and increased protection against discharge.

Six key advantages of the product

1. Plug and play, high-speed networking from zero experience

Unmanaged devices, without the need to debug software or configure parameters; the port automatically recognizes terminal devices, allowing normal operation as soon as the network cable is connected. Beginners and small projects can quickly implement it, which significantly reduces construction and commissioning costs.

2. Intelligent AI PoE power supply, multi-layer security

Equipped with a dedicated PoE power supply system, equipped with intelligent identification and many protective mechanisms:

- Automatically identifies and matches IEEE802.3af/at standard IP cameras, wireless access points and other PD power reception devices;

- Port power priority control, continuous power priority for core monitored devices;

- Built-in short circuit and overload protection; automatic power cut-off in case of port short circuit or device failure, preventing damage to the entire device and terminals.

3. Ultra-long transmission range of 250 meters, breaking wired limitations

One-touch switch between Extend mode and long-line with Extend knob:

- Standard mode: 100 meters, full speed 10/100 Mbps, preferred for monitoring in rooms at close range;

- Extended mode: transmission up to 250 meters, speed reduced to 10Mbps, suitable for long distance camera cableding in factories, hallways and outdoors, no need for additional repeaters, saving on cables and auxiliary materials.

4. Steel alloy body for natural heat dissipation, stable and durable

Electrostatic steel alloy housing with large ventilation holes on both sides of the fuselage, based on natural cooling convection, no fan, zero noise; The metal body is resistant to compression and corrosion, allows you to work in wide temperatures and can operate stably ×24 hours a day in harsh conditions such as humidity, low and high temperatures.

5. High-bandwidth board architecture for smooth HD video transfer

Ultra-high bandwidth backplane board design, 1,2Gbps switching capability, simultaneous preview of multiple high-definition monitoring recordings, smooth recording without delay or packet loss, meeting the needs of multiple simultaneous IPC transmissions.

6. Mini-light body for flexible mounting scenarios

The compact size, weighs only 0,6 kg, does not take up poor space in the chest, supports desk setting and is suitable for limited places such as shops, houses, small offices or dormitories.

Available scenarios

1. Security monitoring engineering: centralized power supply and IP camera network in 4 channels in stores, homes and small parks;

2. Small office network: unified power supply for wireless Wi-Fi AP and enterprise VoIP telephony;

3. Poor electricity in the house/dormitory: home monitoring, simple wireless range for the whole house;

4. Support for small-scale projects: shops, grocery stores and apartments for rent – simple security systems.

The TCE-PS4306N6 is a 6-port 100Mbps 4PoE mini switch with a total power of 65W. Compared to the 48W version of the same specification, it offers more power and can be customized for higher power monitoring equipment;Key features include mini metal body, 250-meter cable transmission,intelligent AI power supply for multiple security and plug-and-play without any configuration;Wide-temperature metal heat dissipation structure ensures long-term stable operation,Focusing on low-cost, simple security network scenarios for small to medium-sized ones,in the home and office, with convenient wiring and installation,This reduces the overall cost of the project.

Specifications
