3,5" lietimui jautrus ekranas

Trumpai apie prekę

Prekė: 3,5" lietimui jautrus ekranas. Kategorija: Priedai.

• Gamintojas: 1Mii
• Modelis: 254504

Offer title (75 character limit):

AZDelivery LCD Touch Screen 3,5" HAT 480x320 for Raspberry Pi 3 4 5 RPi

AZDelivery RPi Touch Display HAT 3,5" for Raspberry Pi

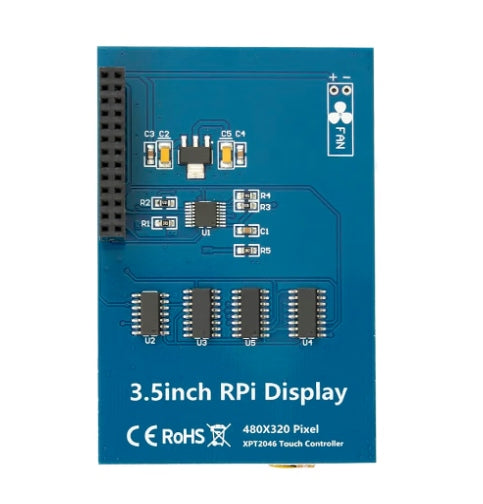

Compact 3,5 inch TFT LCD screen by AZDelivery, designed as a direct HAT overlay for GPIO connector of Raspberry Pi microcomputers. The module offers a hardware resolution of 480× 320 pixels and an integrated resistive touch panel, providing a reliable solution for miniature retro consoles, home automation control panels (IoT), portable terminals or diagnostic stations.

Installation of the module eliminates the need for HDMI cables and external power supply – the screen connects directly to the 40-pin GPIO connector of the Raspberry Pi board.

The most important features and advantages:

• Direct GPIO connection: The screen is applied directly to the Raspberry Pi pins without the use of adapters and additional power cords.
• Precise resistive touch: Operation with the included stylus or touch allows for convenient and precise navigation in graphical interfaces.
• Support for FBCP (Dual Display): Using FBCP drivers, the software allows you to programmatically scale the resolution and support double screen mode.
• Wide base of operating systems: Works stably under the control of official distributions such as Raspberry Pi OS (Raspbian), Ubuntu MATE, Kali Linux or RetroPie (retro game emulators).
• Compact dimensions: Perfectly covers the outline of the Raspberry Pi board, making it easier to install the whole in dedicated housings.

Hardware compatibility:

• Raspberry Pi 5
• Raspberry Pi 4 Model B
• Raspberry Pi 3 Model B+ / 3B
• Raspberry Pi 2 Model B
• Other models equipped with standard 40-pin GPIO connector

Technical specification:

• Manufacturer: AZDelivery
• Cover type: HAT / Shield GPIO
• Screen diagonal: 3,5 inches
• Matrix type: TFT LCD
• Physical resolution: 480 × 320 pixels
• Touch technology: Resistive (resistance)
• Bus interface: SPI (via 40-pin GPIO connector)
• Power Supply: Directly from Raspberry Pi pins (5V)

Contents of the set:

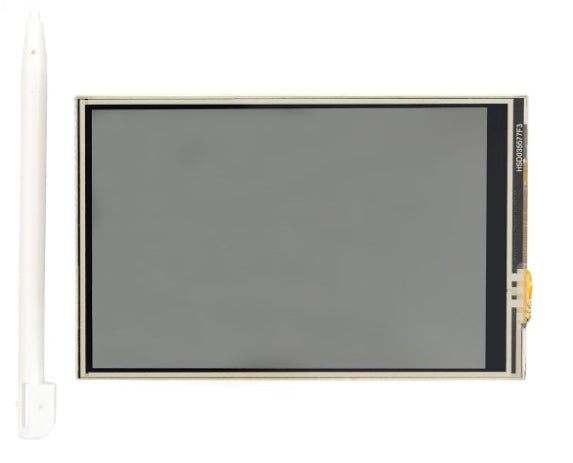

• 1 × AZDelivery 3,5" Touch LCD HAT Display Module
• 1 × Dedicated touch stylus
• Quick Start Guide (QuickStart Guide)
• Factory protective packaging

New product. Factory packed.
