20 t hidraulinis cilindrinis keltuvas

Trumpai apie prekę

Prekė: 20 t hidraulinis cilindrinis keltuvas. Kategorija: Butelių kėlimo įrankiai.

• Gamintojas: no brand
• Modelis: 619752

Description

This hydraulic jack, made of sturdy materials, combines power with compact portability and is designed for efficient heavy-duty work. It is easy to operate, safe, and reliable, with a variety of functions such as lifting, jacking, pushing, and pulling, which is an indispensable and powerful assistant in your engineering projects.

Key Features

Durable Structure: It is made of sturdy 45# steel, after heat treatment, blackening treatment, and baking paint process, which is rust-resistant and leakage-resistant, with strong durability, and it can be used for a long time under a harsh working environment.

Practical Tool: It has various functions such as lifting, jacking, pushing and pulling, etc. It can be used with a CP-700 series manual pump (not included) and is widely used in construction sites, petroleum, steel, and other industries for the installation and maintenance of large and medium-sized machinery and equipment.

Efficient Work: It is made of high-class materials, can withstand weight up to 20T, and provides up to 2.36 inches lifting height, bringing convenience to your installation and maintenance work.

Flexible Use: It can be used vertically, horizontally, and in an inverted orientation. The compact design with an outside diameter of 3.94 inches and a body height of 6.3 inches also allows it to be used flexibly in confined spaces.

User Friendly: The piston can be reset automatically after the pressure is relieved. The hollow piston design can be used as both pull and push to meet your different usage needs.

Separate Design: Its power pump is separate from the lifting section, allowing flexible operation where space is restricted.

Easy to Carry: Compact size and lightweight (18.52lbs) make it easy for you to carry it to different workplaces.

Easy to Use: Using a standard ZG3/8 threaded quick coupling, it is easy for quick installation.

Through-hole Design: With a through-hole structure, it is not easy to drain pressure and oil leakage, ensuring the safety of use and prolonging the life of the product at the same time.

Details

Dustproof Cap: It can prevent dust and other impurities from falling into the ZG3/8 quick coupling.

Smooth Surface: The smooth and burr-free surface ensures the protection of your hands during maintenance and installation.

Comfort Grip: It is ergonomically designed to give you a comfortable grip, even for long periods.

Application

It is widely used in construction sites, petroleum, electric power, metallurgy, chemical industry, ships, bridges, steel, and other industries for installation and maintenance of large and medium-sized mechanical equipment.

Specification

Mount Type: Freestanding

Assembly Required: No

Material: 45# Steel

Process: Heat Treatment, Blackening Treatment, Baking Paint

Colour: Yellow, Black

Style: Modern

Applicable Hand Pump: CP-700 Series Hand Pump ( Not Included )

Quick Coupling Standard: ZG3/8

Discharge Force: 20T/44,092.45 lbs

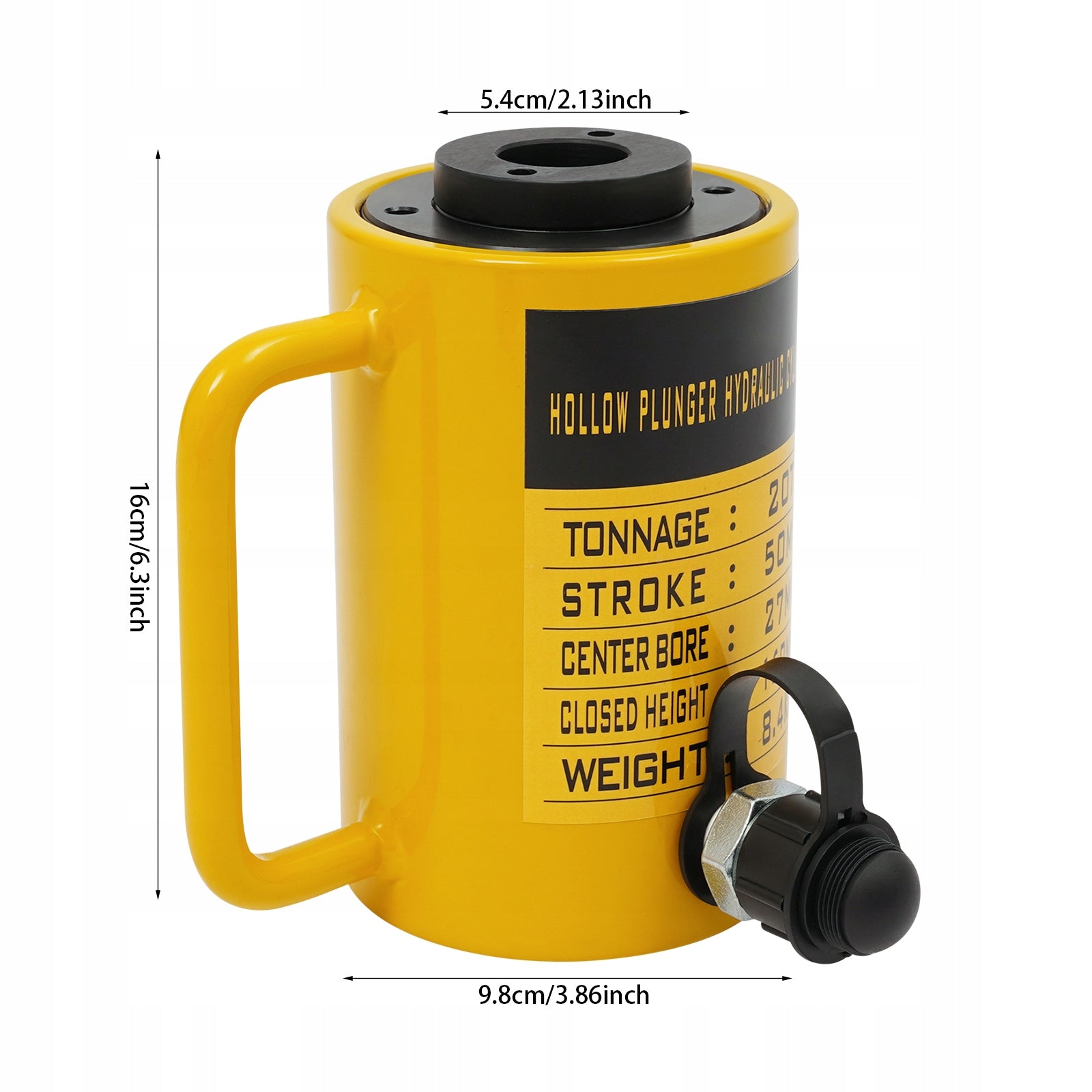

Outside Diameter: 100mm/3.94in

Rated Stroke: 50mm/1.97in

Actual Stroke: 60mm/2.36in

Piston Diameter: 54mm/2.13in

Bore Diameter: 27mm/1.06in

Body Height: 160mm/6.3in

Hand Pump Working Pressure: 70MPa

Hand Pump High-Pressure Flow Rate: 2.2CC

Hand Pump Low-Pressure Flow Rate: 13CC

Hand Pump Reservoir Capacity: 900CC

Net Weight: 8.4kg/18.52lbs

Gross Weight: 8.8kg/19.40lbs

Package Size: 25*23*20cm/9.84*9.06*7.87in

Package Included

1* Hydraulic Jack
