Trumpai apie prekę

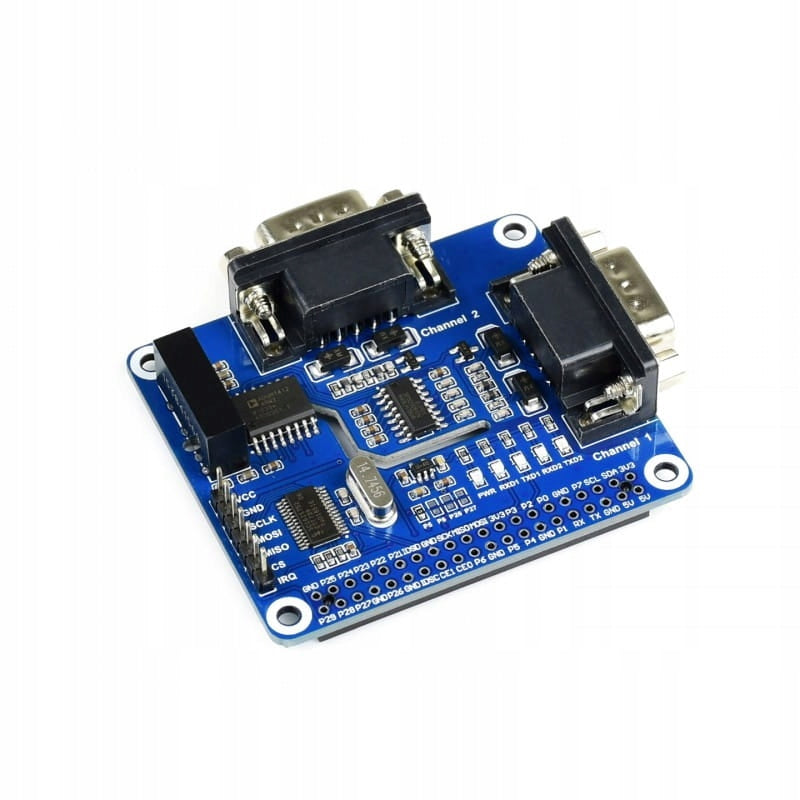

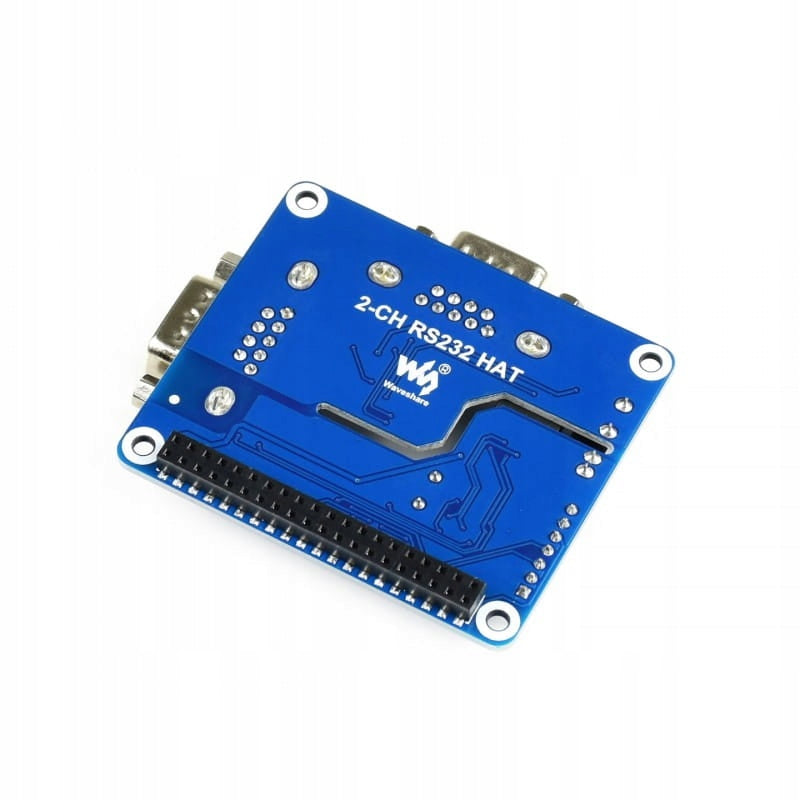

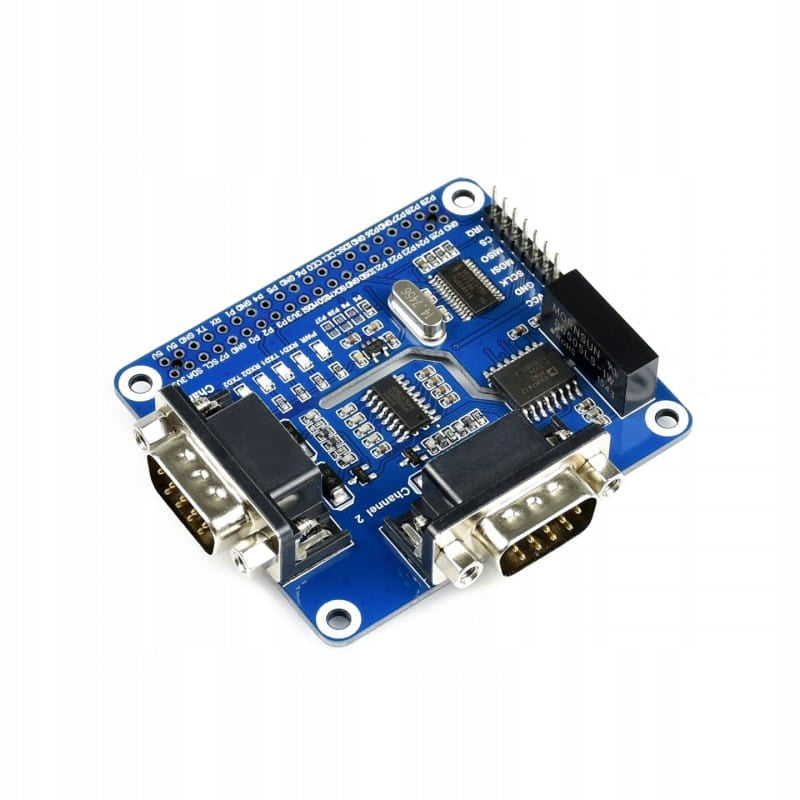

Prekė: 2 kanalų izoliuota RS232 plokštė Raspberry Pi. Kategorija: Priedai.
- Gamintojas: WaveShare
- Modelis: 2-CH RS232 HAT Waveshare 17498
Features of 2-CH RS232 HAT extension:
- Two RS232 channels
- Standard 40PIN GPIO connector, compatible with any version of Raspberry Pi
- Pair of SC16IS752+SP3232 provides conversions from the SPI na RS232 bus, with a maximum speed of up to 921600bps
- TVS (Transient Voltage Suppressor) diode protects electronics against surges and electrostatic discharges
- LED indicators informing about the power supply and communication status
- SPI outputs of the system, enable cooperation, e.g. with Arduino
- Available examples of support using C and Python
- Controller UART SC16IS752
- RS232 Transceiver SP3232
- Signal insulator ADUM1412
- Supply voltage insulator B0505LS
- Voltage Stabilizer RT9193-33
- GPIO connector suitable for Raspberry Pi
- Connector for controlling Arduino or other microcontroller
- RS232 9PIN male connectors
- Safety diodes
- ESD safety diodes
- RXD1/TXD1 RXD2/TXD2 communication indicators
- Power Indicator
- Configuration of Interrupt pin, connected to P5 (BCM P24) as standard
Specification 2-CH RS232 HAT:
- UART chip: SC16IS752
- RS232 transceiver: SP3232
- Communication with SPI
- Transmission Speed: 300~921600 bps
- Operating Voltage: 3.3V/5V
- Dimensions: 65mm × 56.5mm
- Diameter of mounting holes: 3.0mm
Buying you get:
- 2-CH RS232 HAT x1
- 40 PIN connector
- Screws
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | 2-CH RS232 HAT Waveshare 17498 |
| Parametry | Manufacturer | WaveShare |
| Parametry | Kind | Expansion board |
| Parametry | EAN (GTIN) | 5905123542183 |
| Parametry | Packaging status | original |
