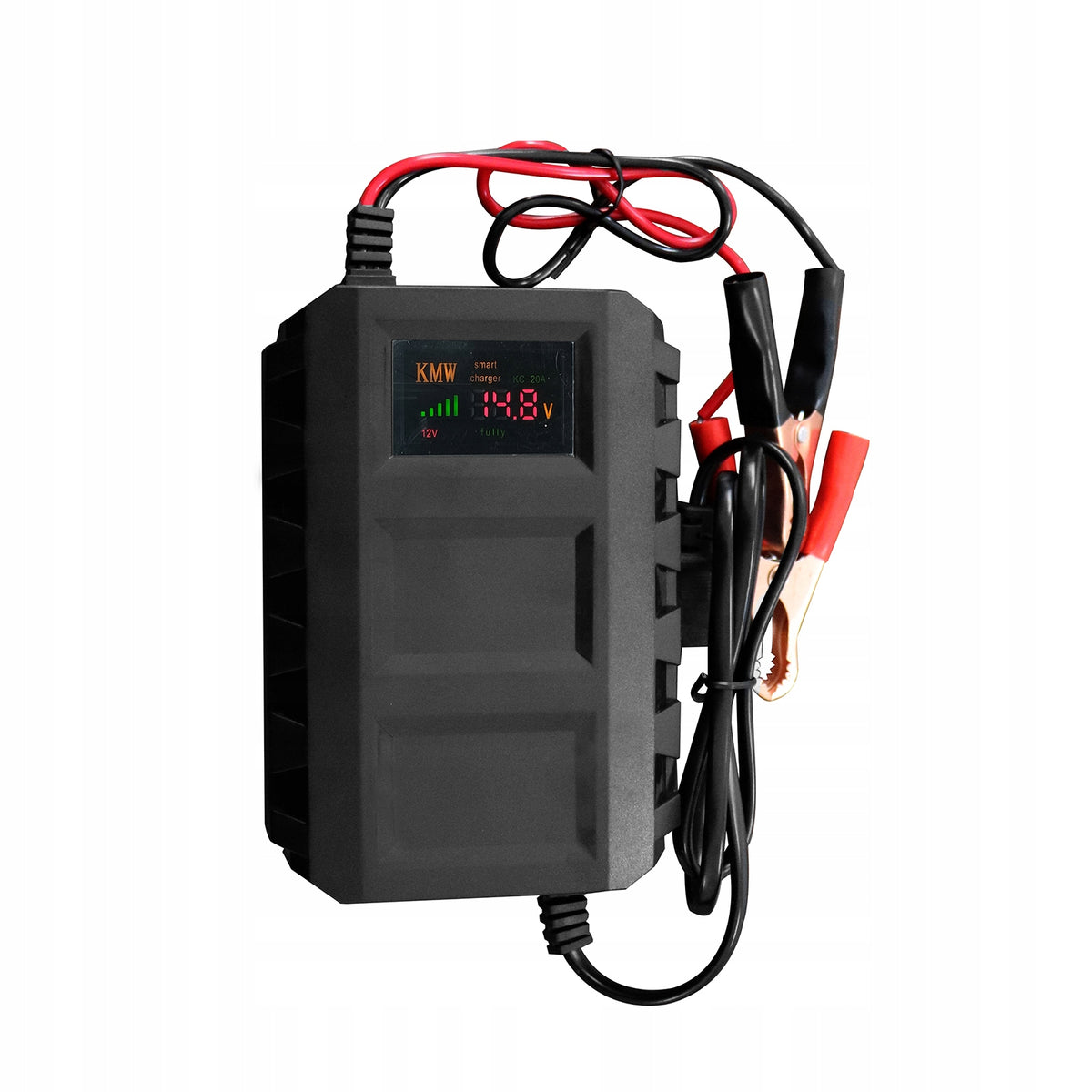

12V LiFePO4 akumuliatoriaus įkroviklis su ekranu

Trumpai apie prekę

Prekė: 12V LiFePO4 akumuliatoriaus įkroviklis su ekranu. Kategorija: Baterijų įkrovikliai.

• Gamintojas: no brand
• Modelis: KMWCG12V

1. Detection of batteries in which sulphation occurred and removal of sulphates from lead plates using impulse current and voltage to restore battery capacity.

2. Checking that the battery is rechargeable; this step avoids charging damaged batteries.

3. Maximum current charging up to about 80% of the rated capacity.

4. Measure the residual pressure of batteries connected in series and the characteristic residual pressure for a specific type of battery to select the appropriate charging mode.

5. Maintain a fully automatic charging process.

6. The device uses the principle of voltage and current conversion using an inverter.

Model: KC-20A 14.6v

Dimensions: 150×110×60mm

Battery type: 12.8V LiFePO4 battery (3.2V 4S)

Suitable for battery voltage: 4S 14.4V-14.6V

Applicable battery capacity: 20ah-100ah

Working Power: 100-240Vac, 50~60Hz

Output voltage: 14.8V±0.2v

Output Current: 8A

Charging mode: constant current - Constant Voltage - trickle (floating charge) three-stage

Smart charging

Charging capacity: ≥85% (full load)

Operating temperature: -5℃~ +40℃

Storage temperature: -40℃~+70℃

AC power, DC can customize.

Features:

1. Three-stage charging bag mode - constant current, constant voltage, trickle (or float).

2. Safety design, short circuit protection, overcurrent, overvoltage automatic current monitoring, conversion charging mode.

3. Highlyprecision current and voltage lock, to ensure full charge, without overcharging.

4. Overcurrent protection, overvoltage protection, short circuit protection, safe and reliable.

5. Conversion efficiency≥87%, small size. Light weight. Effective protection of the environment.

Charging instructions:

1. Before charging, please check that the rated voltage of the battery to be charged is compatible with the output voltage of the charger.

2. Connect the network plug to the AC socket.

3. The output of the clip charger is clamped at the positive pole of the battery, and the black clip is clamped at the negative pole of the battery.

4. In this time, the display screen will show the battery voltage and the current battery level 5 sections of the battery level indicator. green light "FULL" will be turned off if the battery is normally charged. (The power indicator at stage 5 lights up to indicate that the current battery power is 20%, plus sequentially.)

5, after charging, please disconnect the mains power supply, then disconnect the battery connection.

Ultra Compact and High Quality:

External housing made of standard eco alloy ABS + PC, which is characterized by high temperature resistance, excellent workmanship, wear resistance and impact.

Intelligent charging:

When the battery is fully charged, the charger will enter protection mode with very little current entering float charging mode. The current will be automatically adjusted to the voltage to better maintain battery life.

Protection Features:

Low voltage protection, overvoltage protection, overload protection, reverse polarity protection, overheating protection.

Smart Signal Light for Safe Charging:

Red light when charging, green light when fully charged.

Compatible with Bridge Vehicle Types:

Suitable for charging motorhomes, boats, trucks, cars, scooters and motorcycle batteries.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Model	KMWCG12V
Parametry	Brand	no brand
Parametry	Maximum amperage	20 A
Parametry	EAN (GTIN)	8581706866722
Parametry	Batteries included	no
